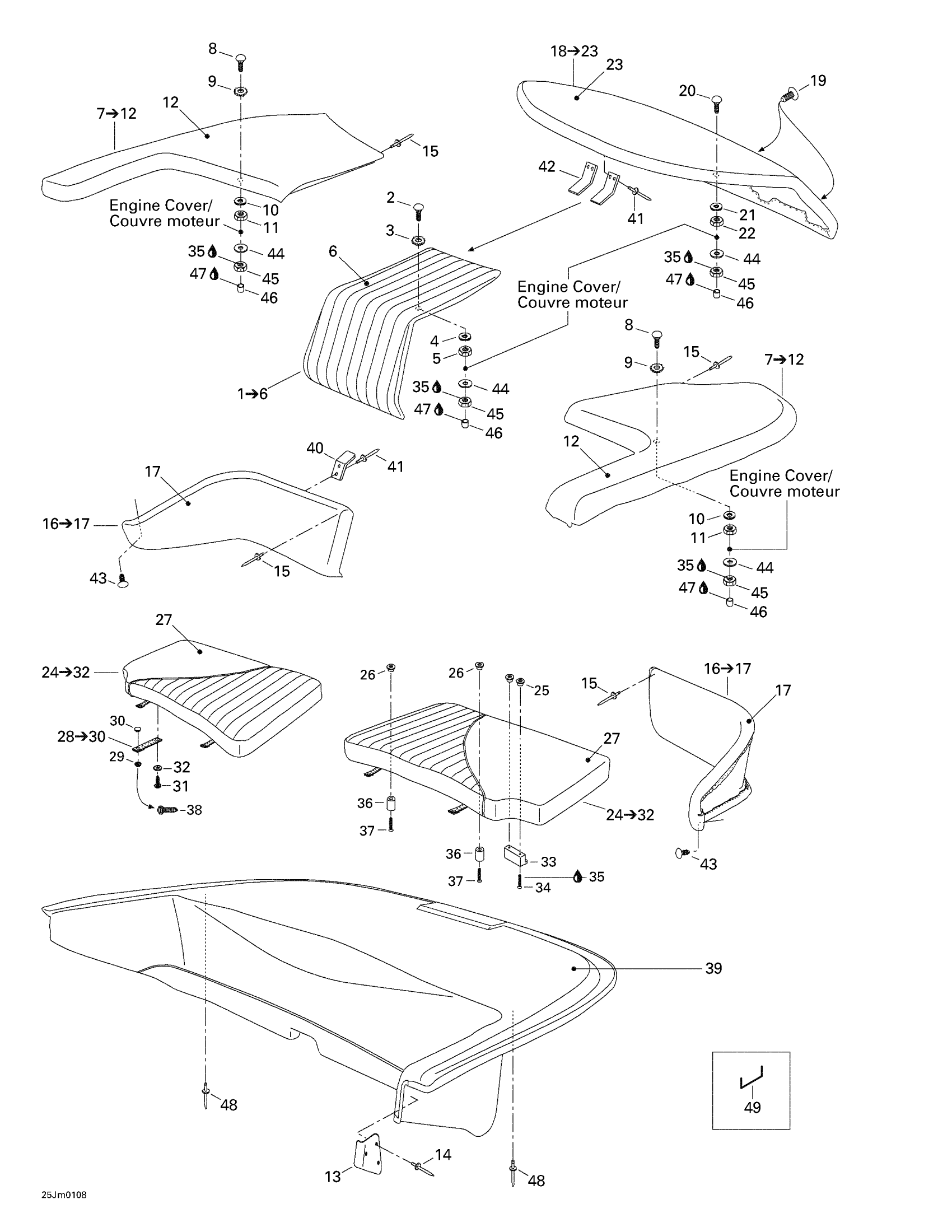

Sea-doo Utopia, 200 Optimax, 2001 09- Rear Seat Diagram
#
1
Sundeck Center Cushion (185 Single dist.
204611792
Unavailable
2
Elevator Bolt
204000130
Unavailable
3
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
4
External Serrated Lock Washer 6 mm
234461608
$1.15
5
Hex. Jam Nut
204100060
Unavailable
6
Center Cushion Cover
204611457
Unavailable
7
Sundeck Cushion (Port Side) (185 | Includes 7 - 12. UTOPIA 210. UTOPIA 240 EFI. UTOPIA 250 OPTIMAX. .
204611458
Unavailable
Sundeck Cushion (Starboard) (185 | UTOPIA 210. UTOPIA 240 EFI. UTOPIA 250 OPTIMAX. .
204611466
Unavailable
8
Screw #8 X 1/2”
204100088
Unavailable
9
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
10
External Serrated Lock Washer 6 mm
234461608
$1.15
11
Hex. Jam Nut
204100060
Unavailable
12
Cushion Cover (Port Side)
204611465
Unavailable
Cushion Cover (Starboard)
204611473
Unavailable
13
Upholstery Cap, Port Side
204611599
Unavailable
Upholstery Cap, Starboard
204611600
Unavailable
14
Avdel Rivet 3/16"
293150037
$0.56
15
Pop Rivet 3/16"
293150013
$1.37
16
Sundeck Backrest (Port Side) (185 | Includes 16 - 21. UTOPIA 210. UTOPIA 240 EFI. UTOPIA 250 OPTIMAX. .
204611795
Unavailable
Sundeck Backrest (Starboard)
204611798
Unavailable
17
Sundeck Backrest Cover (Port Side) (185 | UTOPIA 210. UTOPIA 240 EFI. UTOPIA 250 OPTIMAX. .
204611480
Unavailable
Sundeck Backrest Cover (Starboard)(185 | UTOPIA 210. UTOPIA 240 EFI. UTOPIA 250 OPTIMAX. .
204611487
Unavailable
18
Sundeck Rear Cushion (185 Single dist.) | Includes 53 - 58. Utopia 185
204611605
Unavailable
19
Black, Dart
293730006
$0.99
20
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
21
External Serrated Lock Washer 6 mm
234461608
$1.15
22
Hex. Jam Nut
204100060
Unavailable
23
Sundeck Rear Cushion Cover
204611495
Unavailable
24
Rear Seat Cushion (Port Side) | Includes 24 - 32.
204611319
Unavailable
Rear Seat Cushion (Starboard)
204611320
Unavailable
25
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
26
TEE-NUT #10-32 - Call your local BRP dealership
204100044
Unavailable
27
Rear Seat Cushion Cover (Port Side)
204611413
Unavailable
Rear Seat Cushion Cover (Starboard)
204611419
Unavailable
28
Retaining Strap (185) | Includes 5 - 7.
204611416
Unavailable
29
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
30
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
31
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
32
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
33
Seat Base Catch
204611598
Unavailable
34
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
35
Loctite 243, 10 ml
293800060
$21.49
36
Rubber Bumper
204560039
Unavailable
37
Screw 10-32 X 1-1/4”
204100075
Unavailable
38
Threaded Stud 5/8”
204100046
Unavailable
39
Fiberglass Engine Cover
204071234
Unavailable
40
RETAINING CLIP - Call your local BRP dealership
204611531
Unavailable
41
Pop Rivet 3/16"
293150008
$0.50
42
SUNDECK PLATE - Call your local BRP dealership
204611597
Unavailable
43
Dart
293730021
$7.79
44
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
45
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
46
Plastic Cap, White
204130008
Unavailable
47
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
48
Pop Rivet 3/16"
293150008
$0.50
49
Staple 1/4"
293730025
Unavailable
