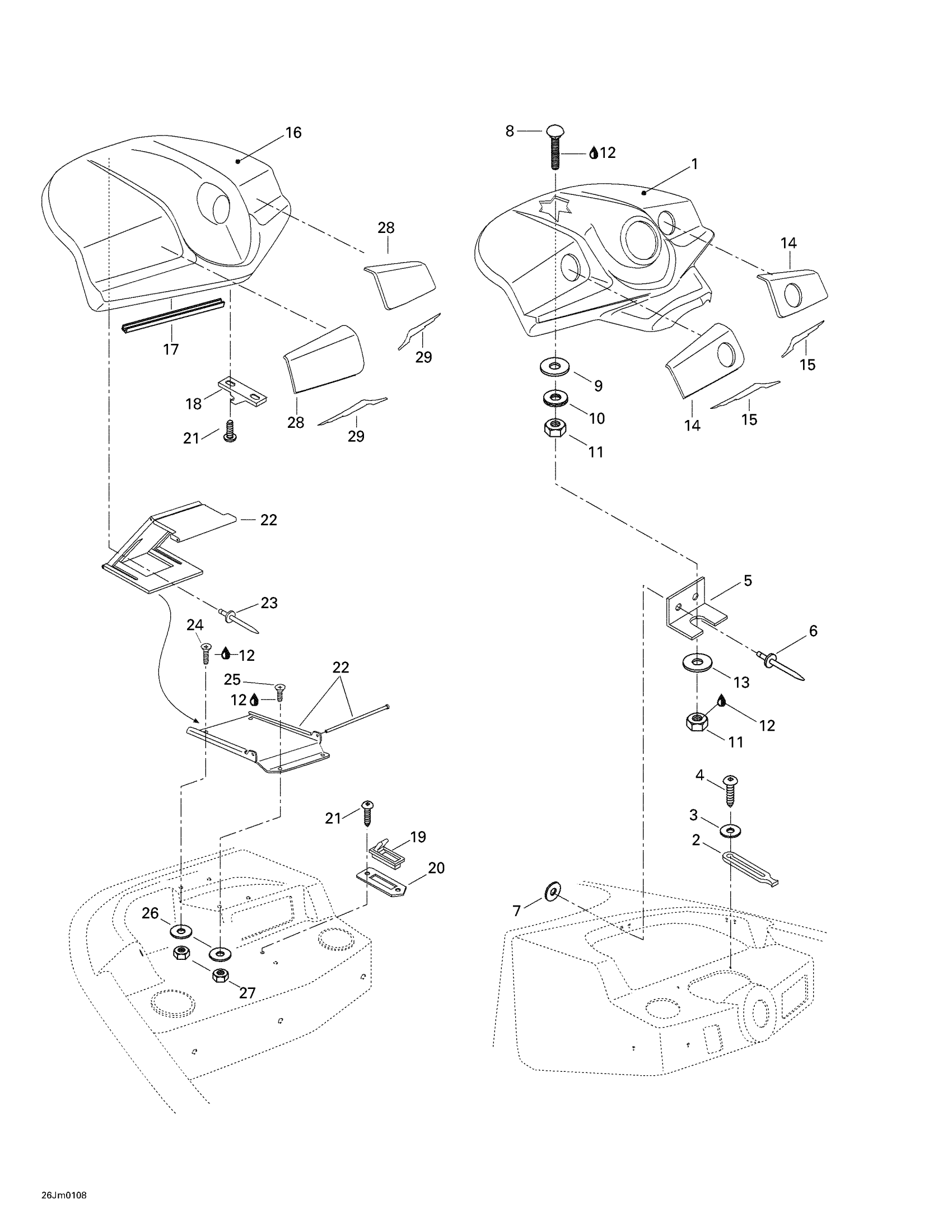

Sea-doo Utopia, 200 Optimax, 2001 09- Front Console Diagram
#
Description
Price
1
Dashboard | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204470608
Unavailable
2
Windshield Latch
570023800
$4.49
3
Flat Washer 4 mm, Stainless
234042600
$1.15
4
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
5
Dash Bracket | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204470644
Unavailable
6
Pop Rivet 3/16"
293150043
$2.09
7
Flat Washer 3/16" | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
711200039
Unavailable
8
Screw 1/4”-20 X 1-3/4”
211000193
Unavailable
9
Flat Washer M8, Stainless
234080600
$1.48
10
External Serrated Lock Washer 6 mm
234461608
$1.15
11
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
12
Loctite 243, 10 ml
293800060
$21.49
13
Flat Washer 8 mm, Stainless
234082600
$2.43
14
Woodgrain Panel L.H | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204071212
Unavailable
Woodgrain Panel R.H | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204071213
Unavailable
15
Dash Decal L.H | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204900924
Unavailable
Dash Decal R.H | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204900925
Unavailable
16
Glove Box | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204071059
Unavailable
17
Rubber Seal (Meter) | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204130011
Unavailable
18
Latch Keeper | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204071359
Unavailable
19
Glove Box Latch | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204071360
Unavailable
20
Latch Plate | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204071309
Unavailable
21
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
22
Slide Hinge | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204071332
Unavailable
23
Pop Rivet 3/16"
293150005
$0.52
24
SCREW M4 X 30 - Call your local BRP dealership
208443070
Unavailable
25
Phillips Screw M4 X 16
208641660
$0.90
26
FLAT WASHER - Call your local BRP dealership
211200033
Unavailable
27
NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership
232041600
Unavailable
28
Woodgrain Panel L.H | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204071210
Unavailable
Woodgrain Panel R.H | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204071211
Unavailable
29
Glove Box Decal L.H | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204900922
Unavailable
Glove Box Decal R.H | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204900923
Unavailable
