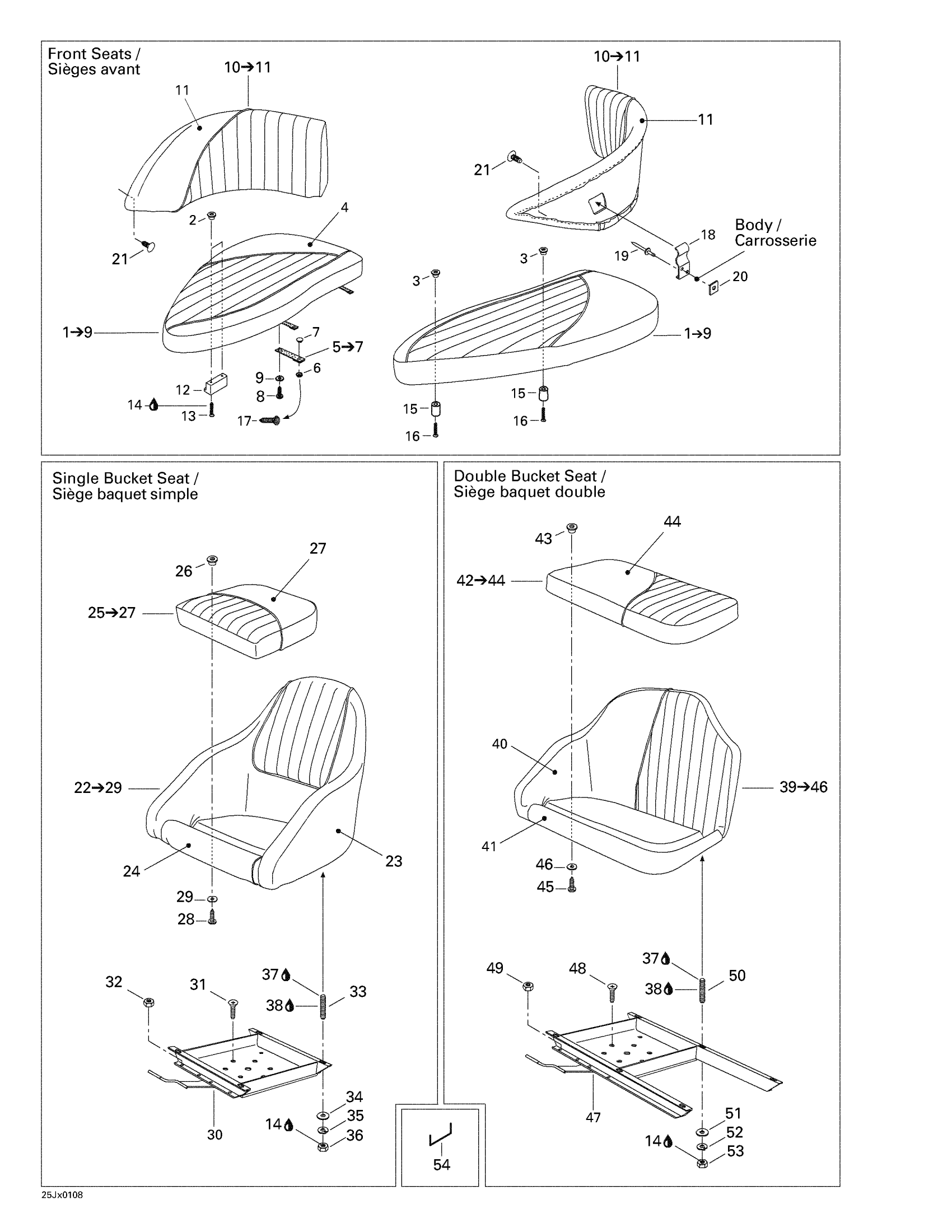

Sea-doo Utopia, 200 Optimax, 2001 09- Front Diagram
#
1
Front Seat Cushion Ass'y (Port Side) | Includes 1 - 9.
204611322
Unavailable
Front Seat Cushion Ass'y (Starboard)
204611323
Unavailable
2
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
3
TEE-NUT #10-32 - Call your local BRP dealership
204100044
Unavailable
4
Front Seat Cushion Cover (Port Side)
204611424
Unavailable
Front Seat Cushion Cover (Starboard)
204611428
Unavailable
5
Retaining Strap (185) | Includes 5 - 7.
204611416
Unavailable
6
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
7
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
8
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
9
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
10
Front Seat Backrest Ass'y (Port Side) (1 | Includes 10 - 11.
204611324
Unavailable
Front Seat Backrest Ass'y (Starboard) (1
204611325
Unavailable
11
Front Seat Backrest Cover (Port Side)
204611434
Unavailable
Front Seat Backrest Cover (Starboard)
204611440
Unavailable
12
Seat Base Catch
204611598
Unavailable
13
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
14
Loctite 243, 10 ml
293800060
$21.49
15
Rubber Bumper
204560039
Unavailable
16
Screw 10-32 X 1-1/4”
204100075
Unavailable
17
Threaded Stud 5/8”
204100046
Unavailable
18
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
19
Pop Rivet 3/16"
293150043
$2.09
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Black Dart
293730014
$0.99
22
Single Bucket Seat Ass'y (185) | Includes 20 - 29.
204611452
Unavailable
23
Seat Shell Cover
204611588
Unavailable
24
Seat Shell Front Cover
204611589
Unavailable
25
Single Bucket Seat Cushion (185) | Includes 25 - 27.
204611590
Unavailable
26
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
27
Single Bucket Seat Cushion Cover
204611624
Unavailable
28
HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership
204100014
Unavailable
29
Flat Washer 8 mm, Stainless
234082600
$2.43
30
Single Seat Swivel Base
204611603
Unavailable
31
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership
208463560
Unavailable
32
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
33
THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership
204100077
Unavailable
34
Stainless Flat Washer M6
234061600
$0.33
35
Lock Washer Helical M6
234161601
$1.15
36
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
37
Was 293800041 Loctite Primer 7649
219704458
$39.99
38
Loctite 271, 10 ml
293800005
$26.99
39
Double Bucket Seat Ass'y (Port Side) | Includes 39 - 46.
204611626
Unavailable
Double Bucket Seat Ass'y (Starboard)
204611627
Unavailable
40
Double Bucket Seat Shell Cover (Port Sid
204611398
Unavailable
Double Bucket Seat Shell Cover (Starboar
204611406
Unavailable
41
Seat shell Inside Cover
204611399
Unavailable
42
Double Bucket Seat Cushion (Port Side) | Includes 42 - 44.
204611332
Unavailable
Double Bucket Seat Cushion (Starboard)
204611331
Unavailable
43
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
44
Double Bucket Seat Cushion Cover (Port S
204611404
Unavailable
Double Bucket Seat Cushion Cover (Starbo
204611408
Unavailable
45
HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership
204100014
Unavailable
46
Flat Washer 8 mm, Stainless
234082600
$2.43
47
Double Bucket Seat Swivel Base (Port Sid
204611601
Unavailable
Double Bucket Seat Swivel Base (Starboar
204611602
Unavailable
48
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership
208463560
Unavailable
49
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
50
THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership
204100077
Unavailable
51
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
52
Lock Washer Helical M6
234161601
$1.15
53
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
54
Staple 1/4"
293730025
Unavailable
