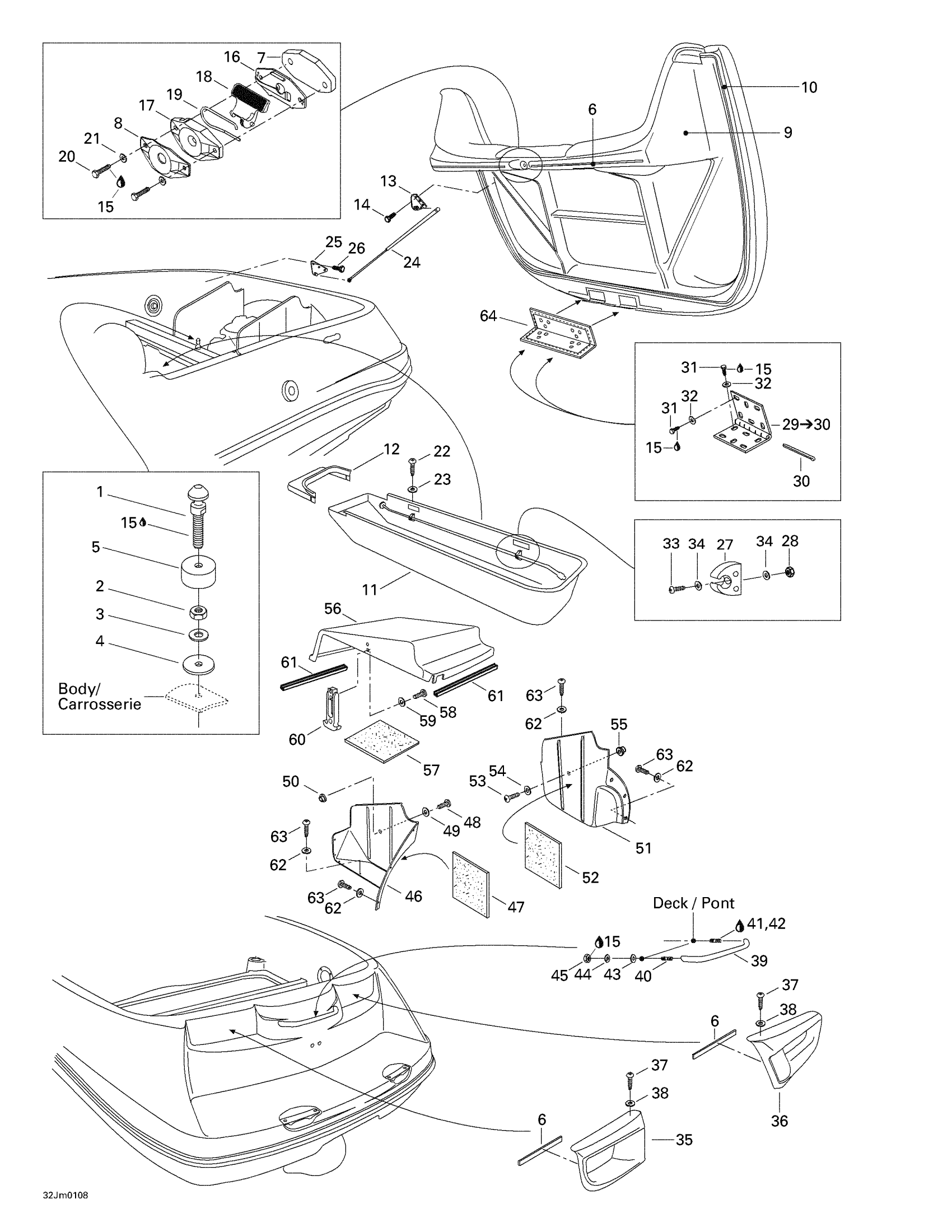

Sea-doo Utopia, 200 Optimax, 2001 09- Engine Compartment Diagram
#
1
Latch Stud
204100065
Unavailable
2
Hex. Jam Nut M10
232100600
$2.22
3
Flat Washer 10 mm, Stainless
234002600
$2.22
4
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
5
Rubber Pad
293830025
Unavailable
6
Was 293200017 Neoprene Seal
219704365
$149.99
7
SHIM - Call your local BRP dealership
269700015
Unavailable
8
LATCH PROTECTOR - Call your local BRP dealership
204070952
Unavailable
9
Fiberglass Engine Cover
204071234
Unavailable
10
Seal Tray 1000Mm Long
219704368
$13.99
11
Rear Seat Storage
204071177
Unavailable
12
Cap End
204071329
Unavailable
13
CYLINDER SUPPORT - Call your local BRP dealership
291000654
Unavailable
14
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
15
Loctite 243, 10 ml
293800060
$21.49
16
Latch Ass'y
269700109
$24.99
17
Latch Ass'y
269700109
$24.99
18
Latch Ass'y
269700109
$24.99
19
Latch Spring
269700017
$9.19
20
Hex. Screw M6 X 50
207065060
$2.22
21
Stainless Flat Washer M6
234061600
$0.33
22
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
23
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
24
Air Shock, 90 Lb
204071087
Unavailable
25
Shock Support
291000615
Unavailable
26
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152560
Unavailable
27
Pole Support
291000642
Unavailable
28
Elastic Stop Nut M4
232541600
$1.15
29
HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21
204070127
Unavailable
30
Cotter Pin M2.5 X 12
204070205
Unavailable
31
Hex. Screw M6 X 25
207162560
$1.47
32
Stainless Flat Washer M6
234061600
$0.33
33
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership
208642560
Unavailable
34
Flat Washer 4 mm
234040600
$0.55
35
Vent Cover Ass'y (Port Side) (Single dis | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204071365
Unavailable
36
Vent Cover Ass'y (Starboard) (Single dis | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204071366
Unavailable
37
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
38
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
39
GRAB HANDLE - Call your local BRP dealership
204071122
Unavailable
40
Threaded Stud
204100031
Unavailable
41
Was 293800041 Loctite Primer 7649
219704458
$39.99
42
Loctite 271, 10 ml
293800005
$26.99
43
Flat Washer 10 mm, Stainless
234002600
$2.22
44
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
45
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
46
Bulkhead Panel (Port Side)
204071079
Unavailable
47
Sound Barrier (Port Side)
204071399
Unavailable
48
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
49
Flat Washer 5 mm, Stainless
234052600
$0.77
50
Strap Retainer
204071384
Unavailable
51
Bulkhead Panel (Starboard)
204071230
Unavailable
52
Sound Barrier (Starboard)
204071401
Unavailable
53
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
54
Flat Washer 5 mm, Stainless
234052600
$0.77
55
Strap Retainer
204071384
Unavailable
56
Bulkhead Cap | 185
204071229
Unavailable
57
Sound Barrier For Cap
204071402
Unavailable
58
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
59
Flat Washer 5 mm, Stainless
234052600
$0.77
60
Rubber Latch
204071330
Unavailable
61
Seal Tray 1000Mm Long
219704368
$13.99
62
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
63
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
64
Hinge Cover (Utopia 185)
204611608
Unavailable
