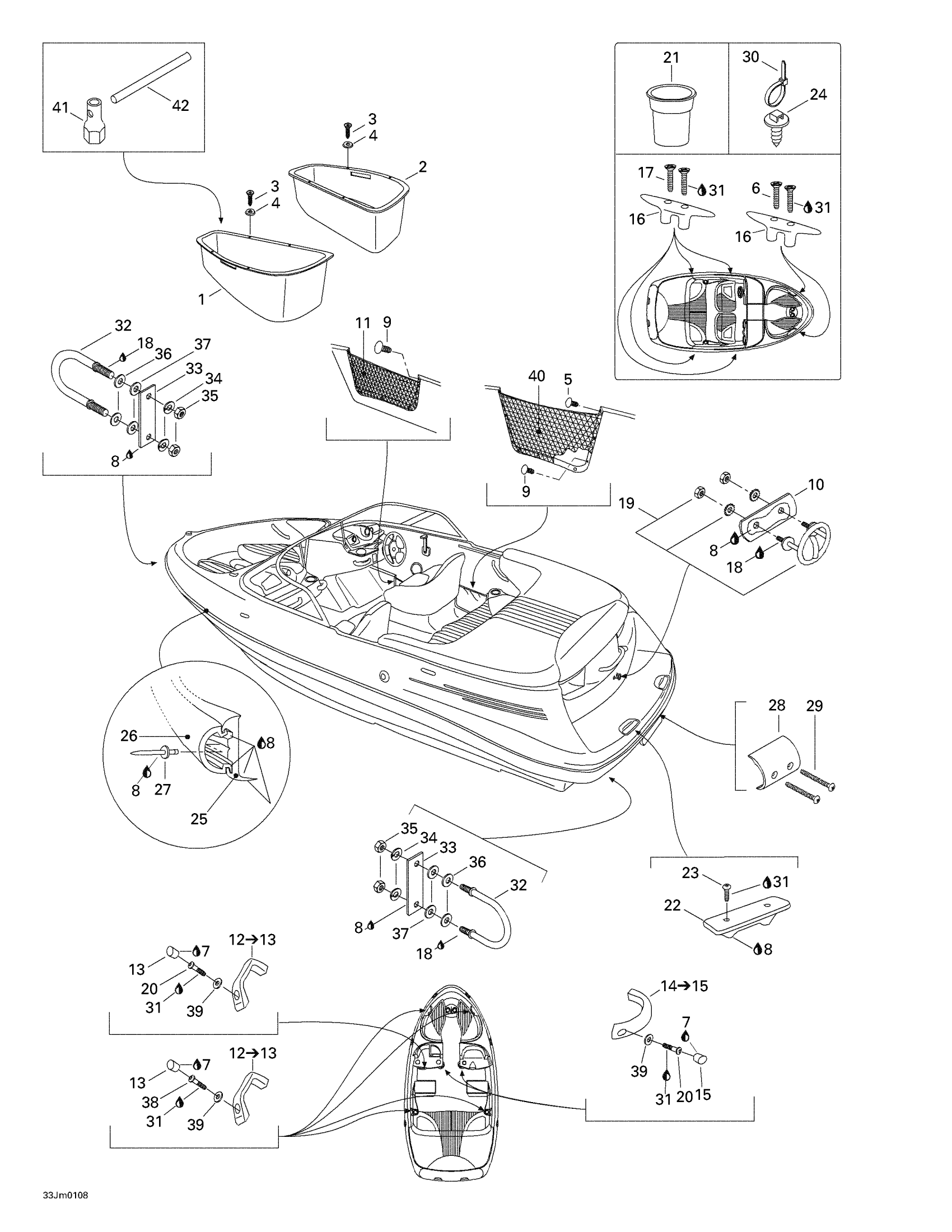

Sea-doo Utopia, 200 Optimax, 2001 09- Body And Accessories 1 Diagram
#
1
Storage Tray (Port Side)
204071075
Unavailable
2
Storage Tray (Starboard)
204071076
Unavailable
3
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
4
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
5
Black, Dart
414644300
$0.98
6
Socket Head Screw M6 X 70
205367060
Unavailable
7
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
8
Silicone Sealant 51388, 300 ml
296000309
$36.99
9
Black, Dart
293730006
$0.99
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Front Storage Net, Port Side
204611529
Unavailable
Front Storage Net, Starboard
204611326
Unavailable
12
GRIP HANDLE, WHITE - Call your local BRP dealership | Includes 20a to 20b
204071182
Unavailable
13
Snap Cap
204071195
Unavailable
14
Grip Handle (White) (Single/dist. int.) | Includes 14 - 15. UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204071318
Unavailable
15
Snap Cap
204071195
Unavailable
16
CLEAT - Call your local BRP dealership | STD
204070592
Unavailable
17
Socket Head Screw M6 x 55
205365560
Unavailable
18
Loctite 271, 10 ml
293800005
$26.99
19
Ski Tow Hook
204070206
Unavailable
20
Socket Screw M6 X 40
205464060
$2.22
21
CUP HOLDER - Call your local BRP dealership | STD
291000619
Unavailable
22
GRIP HANDLE, BLACK - Call your local BRP dealership
204070194
Unavailable
23
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
205364060
Unavailable
24
Mount Dart
293730040
$1.04
25
Black, Bumper
204050136
Unavailable
26
Black, Trim - Call your local BRP dealership
204050137
Unavailable
27
Pop Rivet 3/16"
293150013
$1.37
28
BUMPER COVER, BLACK - Call your local BRP dealership
204050031
Unavailable
29
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
30
Tie-Rap 180 mm
414115200
$0.11
31
Loctite 243, 10 ml
293800060
$21.49
32
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
33
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
34
Lock Washer 8 mm, Stainless
234181601
$0.55
35
Hex. Nut M8
232081600
$1.47
36
Flat Washer M8.5 x 18
293050001
$3.07
37
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
38
SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership
205963060
Unavailable
39
Stainless Flat Washer M6
234061600
$0.33
40
Rear Storage Net, Port Side
204611530
Unavailable
Rear Storage Net, Starboard
204611327
Unavailable
41
Socket Wrench
204630050
Unavailable
42
Steel Bar
204630051
Unavailable
