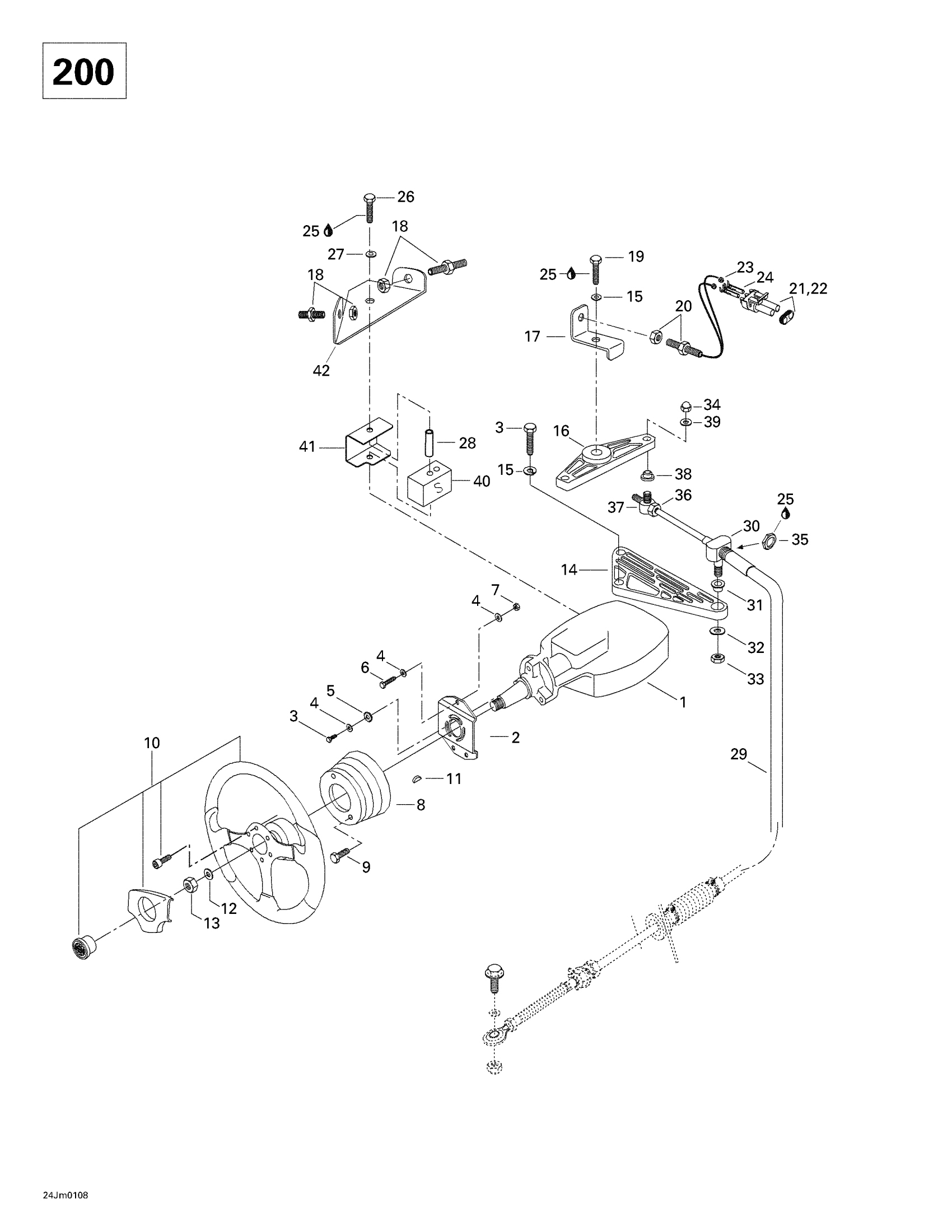

Sea-doo Utopia, 200 Optimax, 2001 07- Steering System Diagram
#
1
HELM ASS'Y - Call your local BRP dealership
204390244
Unavailable
2
Steering (185 Single dist. int.) | Includes 10 - 14. UTOPIA 200 OPTIMAX.
204390282
Unavailable
3
Stopper - Rubber | UTOPIA 240 EFI.
204390255
Unavailable
4
COLLAR, BLACK - Call your local BRP dealership
204390030
Unavailable
5
Hex. Screw M6 X 30
207163060
$1.48
6
STEERING CABLE - Call your local BRP dealership
204390212
Unavailable
7
HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership
204100014
Unavailable
8
Flat Washer M6, Stainless
234062600
$0.77
9
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
10
Cable Support | CHALLENGER 1800 (5774).
204390232
Unavailable
11
HEX. JAM NUT 5/8-18 - Call your local BRP dealership
204390053
Unavailable
12
Bumper
204390246
Unavailable
13
UPPER CLIP - Call your local BRP dealership
204390267
Unavailable
14
Low Speed Control Cable | UTOPIA 210. UTOPIA 240 EFI.
204390188
Unavailable
15
Lower Clip | CHALLENGER 1800 (5774).
204390283
Unavailable
16
Pop RIvet 1/8 X ,375
293150285
$0.33
17
Bumper Support
204390245
Unavailable
18
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
19
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
20
Hex. Elastic Nut M5 | X
232551600
$1.15
21
Flat Washer 10 mm, Stainless
234001600
$1.15
22
Cable Support
204390125
Unavailable
23
Cable Cover | UTOPIA 240 EFI.
204390269
$76.99
24
Loctite 243, 10 ml
293800060
$21.49
25
Hex. Elastic Stop Nut M6
232561600
$1.15
26
PIVOT 3/8? - Call your local BRP dealership
277000461
Unavailable
27
LOCK NUT - Call your local BRP dealership
211100024
Unavailable
28
SCREW 8-32 X 1-1/4 - Call your local BRP dealership
204390059
Unavailable
29
Stainless Flat Washer M6
234061600
$0.33
30
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
31
Support
277000383
Unavailable
32
LOCK NUT 1/2-20 - Call your local BRP dealership
211100021
Unavailable
33
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
34
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
35
PIVOT - Call your local BRP dealership
277000456
Unavailable
36
Lock Washer 1/4”
211200025
$1.29
37
Flat Washer M5, Stainless
234051600
$0.77
38
SPACER 6.7 MM - Call your local BRP dealership
277000584
Unavailable
39
Hex. Screw M6 X 25
207162560
$1.47
40
Flanged Bushing
293350014
$12.99
41
HELM ARM - Call your local BRP dealership
204390250
Unavailable
42
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
43
HEX. SCREW M6 X 12 - Call your local BRP dealership
207151260
Unavailable
44
Helical Lock Washer M5
234151601
$1.15
45
External Serrated Lock Washer 6 mm
234461608
$1.15
46
SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership
205051660
Unavailable
47
BUSHING - Call your local BRP dealership
293350012
Unavailable
48
Helical Lock Washer M5
234151601
$1.15
49
Cable Attachment | CHALLENGER 1800 (5774).
204390234
Unavailable
50
CABLE RETAINER (LOW SPEED) - Call your local BRP dealership | UTOPIA 240 EFI.
204390268
Unavailable
51
Spacer
204390057
Unavailable
52
Adjustment Block
204390056
Unavailable
53
Hex. Screw M5 X 35
207153560
Unavailable
54
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152560
Unavailable
55
Not Available As Spare Part - Friction Washer
Unavailable
56
Cable Support | CHALLENGER 1800 (5774).
204390233
Unavailable
57
Ring Retainer | UTOPIA 240 EFI.
204390180
Unavailable
58
Support Cable (Low Speed) | UTOPIA 240 EFI.
204390181
Unavailable
59
Loctite 243, 10 ml
293800060
$21.49
