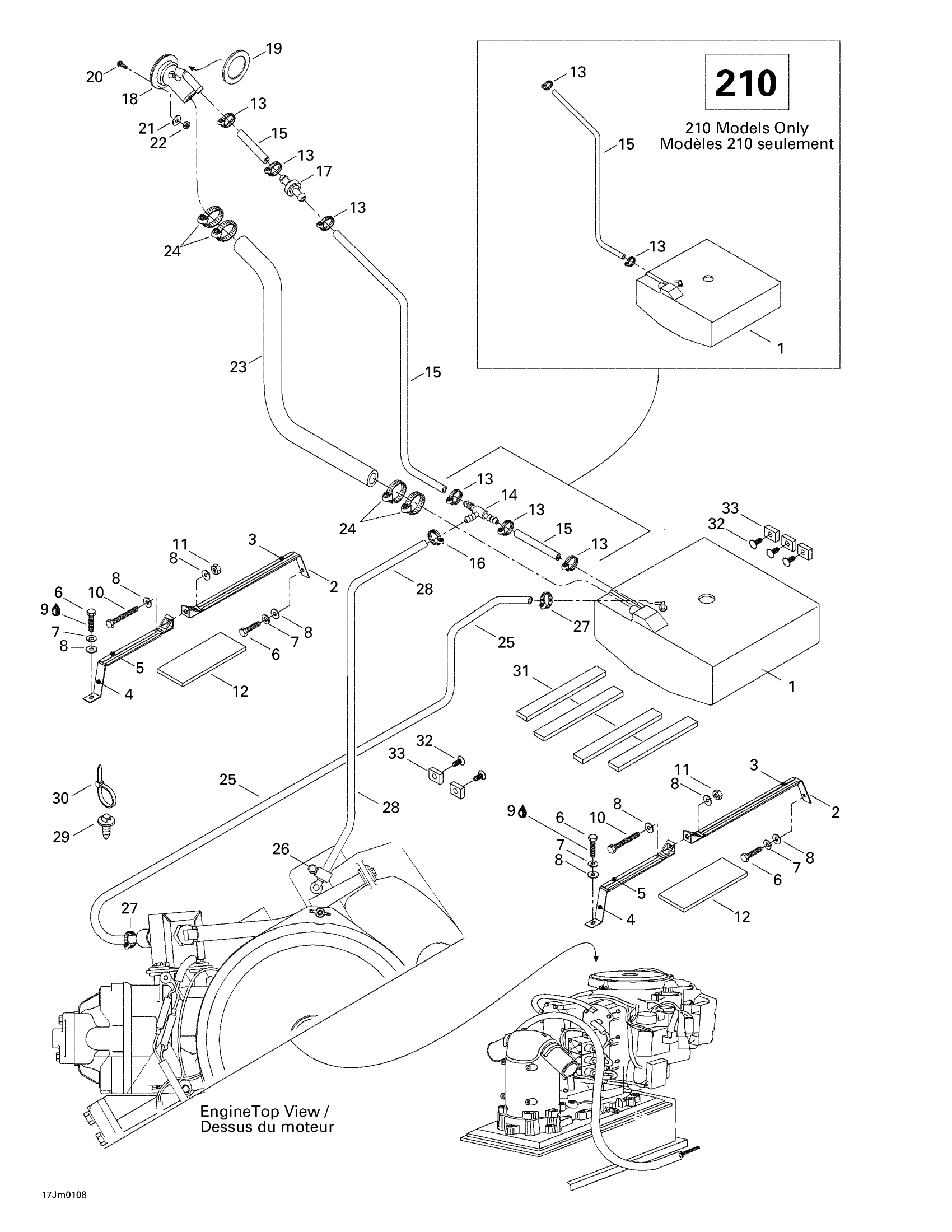

Sea-doo Utopia, 200 Optimax, 2001 02- Fuel System Diagram
#
Description
Price
1
Fuel Tank
204560175
Unavailable
2
FUEL TANK STRAP - Call your local BRP dealership
204560181
Unavailable
3
PROTECTOR PAD - Call your local BRP dealership
204560185
Unavailable
4
Fuel Tank Strap
204560184
Unavailable
5
Protector Pad
204560186
Unavailable
6
Hex. Screw M8 X 30
207183060
$1.58
7
Lock Washer 8 mm, Stainless
234181601
$0.55
8
Flat Washer 8 mm, Stainless
234082600
$2.43
9
Loctite 271, 10 ml
293800005
$26.99
10
HEX. SCREW M8 X 80 - Call your local BRP dealership
207188060
Unavailable
11
Hex. Elastic Nut M8
232581600
$1.48
12
NEOPRENE PAD - Call your local BRP dealership
204560191
Unavailable
13
NORMA CLAMP - Call your local BRP dealership
293650069
Unavailable
14
T-Fitting
204560038
Unavailable
15
HOSE 16 MM - Call your local BRP dealership
204560358
Unavailable
16
NORMA CLAMP - Call your local BRP dealership
293650121
Unavailable
17
VENT FUEL SURGE PROTECTOR - Call your local BRP dealership
204560101
Unavailable
18
FILLER NECK - Call your local BRP dealership
204560182
Unavailable
19
SPACER - Call your local BRP dealership This part replaces 275500801.
204560188
Unavailable
20
Phillips Screw M4 X 35
208643560
Unavailable
21
Flat Washer 4 mm
234040600
$0.55
22
Elastic Stop Nut M4
232541600
$1.15
23
Filler Neck Hose
204560134
Unavailable
24
Norma Clamp
293650077
$7.41
25
Hose 5/16”, Meter
204560177
Unavailable
26
NORMA CLAMP - Call your local BRP dealership
293650121
Unavailable
NORMA CLAMP - Call your local BRP dealership
293650070
Unavailable
27
Tridon Gear Clamp
293650172
$3.09
28
HOSE 1/4 - Call your local BRP dealership
204560178
Unavailable
29
Mount Dart
293730040
$1.04
30
Tie-Rap 180 mm
414115200
$0.11
31
PROTECTOR PAD - Call your local BRP dealership
204560115
Unavailable
32
Black, Dart
293730006
$0.99
33
Rubber Pad
274000354
Unavailable
