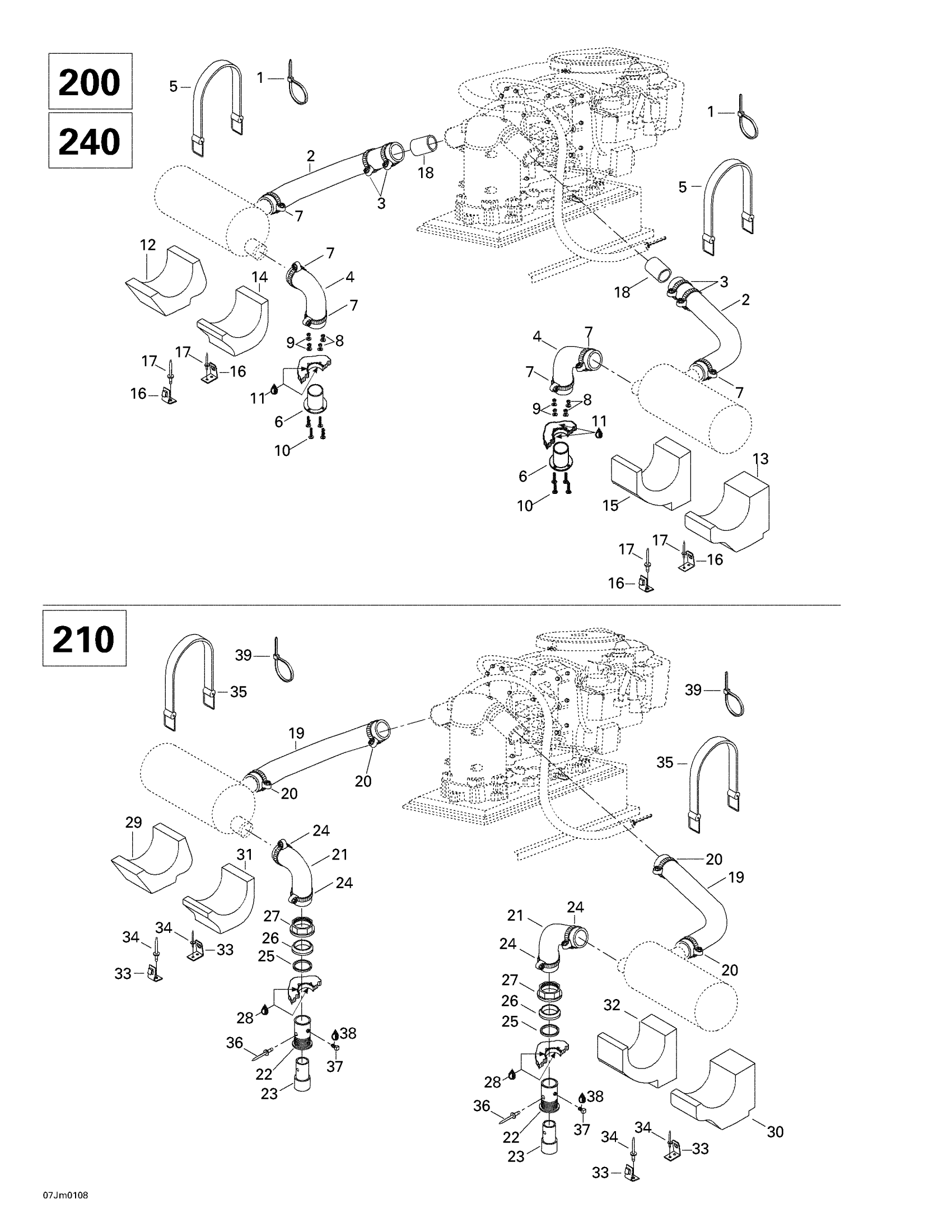

Sea-doo Utopia, 200 Optimax, 2001 01- Exhaust System Diagram
#
1
WRAP_TIE 828 X 9 - Call your local BRP dealership
293750020
Unavailable
2
Exhaust Hose
204340306
Unavailable
3
Tridon Clamp
293650064
$8.29
4
Exhaust Hose | UTOPIA 240 EFI.
204340315
Unavailable
5
STRAP - Call your local BRP dealership
293850022
Unavailable
6
Exhaust Outlet Ass'y
204340252
Unavailable
7
Tridon Clamp
293650112
$12.99
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
Stainless Flat Washer M6
234061600
$0.33
10
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership
208663560
Unavailable
11
Silicone Sealant 51388, 300 ml
296000309
$36.99
12
Outer Muffler Support, Port Side
204340307
Unavailable
13
Muffler Outer Support (Starboard) | UTOPIA 200 OPTIMAX. UTOPIA 240 EFI. UTOPIA 250 OPTIMAX.
204340308
Unavailable
14
Muffler Inner Support (Port Side) | UTOPIA 210. UTOPIA 240 EFI.
204340309
Unavailable
15
Muffler Inner Support (Starboard) | UTOPIA 210. UTOPIA 240 EFI.
204340310
Unavailable
16
Strap Clip 90°
204060017
Unavailable
17
Pop Rivet 3/16"
293150008
$0.50
18
Exhaust Hose Insert
204340326
Unavailable
19
Exhaust Hose | UTOPIA 200 OPTIMAX. UTOPIA 210. UTOPIA 240 EFI.
204340305
Unavailable
20
Tridon Clamp
293650064
$8.29
21
Exhaust Hose | UTOPIA 210.
204340281
Unavailable
22
EXHAUST OUTLET - Call your local BRP dealership
274000222
Unavailable
23
Extension Exhaust Outlet | CHALLENGER 1800 (5774).
204340130
Unavailable
24
Tridon Clamp
293650112
$12.99
25
GASKET - Call your local BRP dealership
293250041
Unavailable
26
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
27
Nut 72 mm
274000224
$16.34
28
Silicone Sealant 51388, 300 ml
296000309
$36.99
29
Outer Muffler Support, Port Side
204340307
Unavailable
30
Muffler Outer Support (Starboard) | UTOPIA 200 OPTIMAX. UTOPIA 240 EFI. UTOPIA 250 OPTIMAX.
204340308
Unavailable
31
Muffler Inner Support (Port Side) | UTOPIA 210. UTOPIA 240 EFI.
204340309
Unavailable
32
Muffler Inner Support (Starboard) | UTOPIA 210. UTOPIA 240 EFI.
204340310
Unavailable
33
Strap Clip 90°
204060017
Unavailable
34
Pop Rivet 3/16"
293150008
$0.50
35
STRAP - Call your local BRP dealership
293850022
Unavailable
36
Pop Rivet 3/16" | UTOPIA 210.
293150060
Unavailable
37
Pipe Plug Socket Head 1/8-27 Npt
211500001
$9.59
38
Was 293800013 Loctite 56765
219704454
$65.99
39
WRAP_TIE 828 X 9 - Call your local BRP dealership
293750020
Unavailable
