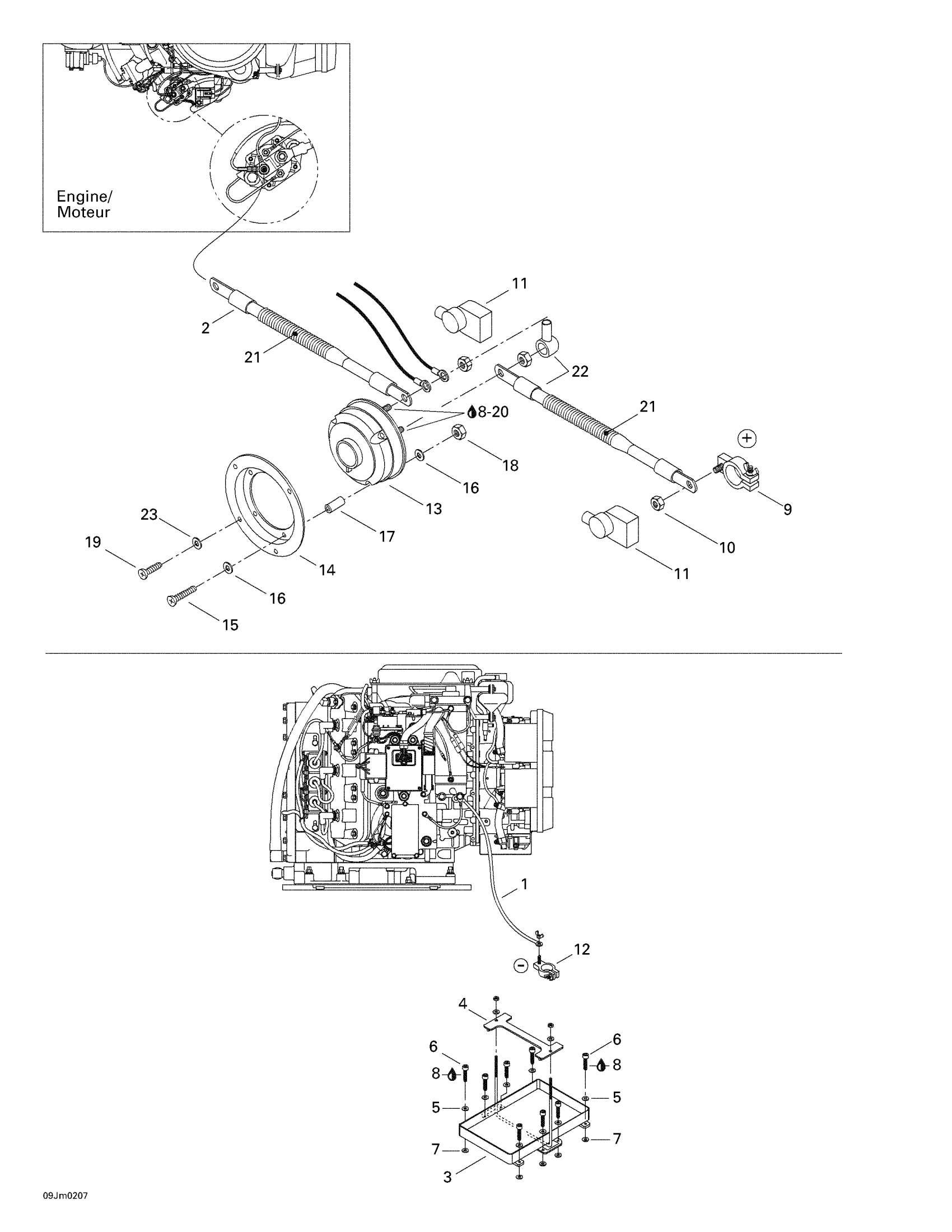

Sea-doo Utopia 185/205, 2002 Electrical System Diagram

#

Description
Price

1

Battery Ground Cable

204470389

Unavailable

2

Switch Cable, Positive

204470640

Unavailable

3

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

4

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

5

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

6

Socket Head Screw M6 X 25

205062560

$1.69

7

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

8

Loctite 243, 10 ml

293800060

$21.49

9

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

10

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

11

Red Boot

204470388

Unavailable

12

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

13

Battery Switch

204470329

Unavailable

14

SWITCH SUPPORT - Call your local BRP dealership

204470259

Unavailable

15

Phillips Screw M5 X 25

208652560

$3.39

16

Flat Washer M5, Stainless

234051600

$0.77

17

NYLON SPACER - Call your local BRP dealership

204470330

Unavailable

18

Hex. Elastic Nut M5 | X

232551600

$1.15

19

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

20

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

21

SLIT CONDUIT, METER - Call your local BRP dealership

204550015

Unavailable

22

Switch Cable, Positive

204470640

Unavailable

23

Flat Washer 4 mm, Stainless

234041600

$1.15
