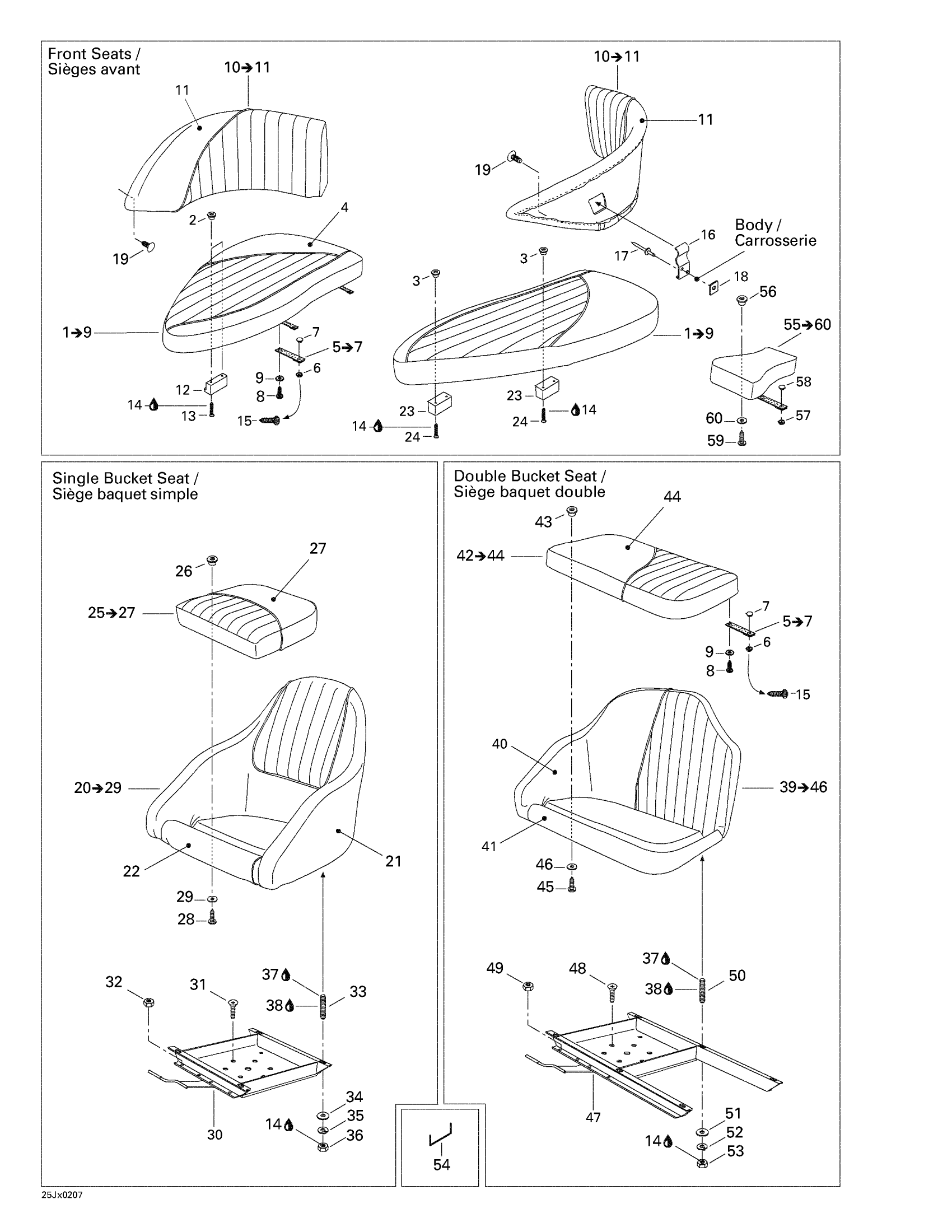

Sea-doo Utopia 185/205, 2002 Front Driver Passenger Seat Diagram

#

Description
Price

1

Front Seat Cushion Ass'y (Port Side) | Includes 1 - 9.

204612018

Unavailable

Front Seat Cushion Ass'y (Port Side) (18

204611943

Unavailable

Front Seat Cushion Ass'y (Starboard)

204612019

Unavailable

Front Seat Cushion Ass'y (Starboard) (18

204611944

Unavailable

2

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

3

TEE-NUT #10-32 - Call your local BRP dealership

204100044

Unavailable

4

Front Seat Cushion Cover (Port Side)

204611869

Unavailable

Front Seat Cushion Cover (Starboard)

204611871

Unavailable

5

Retaining Strap (185) | Includes 5 - 7.

204611416

Unavailable

Retaining Strap

204611881

Unavailable

6

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

7

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

8

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

9

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

10

Front Seat Backrest Ass'y (Port Side) (1 | Includes 10 - 11.

204611324

Unavailable

Front Seat Backrest Ass’y, Port Side | Includes 26 to 27

204611843

Unavailable

Front Seat Backrest Ass'y (Starboard) (1

204611325

Unavailable

Front Seat Backrest Ass’y, Starboard | Includes 26 to 27

204611844

Unavailable

11

Front Seat Backrest Cover (Port Side)

204611873

Unavailable

Front Seat Backrest Cover (Starboard)

204611875

Unavailable

12

Seat Base Catch

204611598

Unavailable

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

13

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

14

Loctite 243, 10 ml

293800060

$21.49

15

Threaded Stud 5/8”

204100046

Unavailable

16

SEAT SUPPORT - Call your local BRP dealership

204613998

Unavailable

17

Pop Rivet 3/16"

293150043

$2.09

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Black Dart

293730014

$0.99

Black, Dart

293730006

$0.99

20

Single Bucket Seat Ass'y (185) | Includes 20 - 29.

204611452

Unavailable

Single Bucket Seat Ass’y | Includes 7 to 11

204611832

Unavailable

21

Seat Shell Cover

204612098

Unavailable

22

Seat Shell Front Cover

204612099

Unavailable

23

LATCH - Call your local BRP dealership

204611805

Unavailable

24

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

Screw 10-32 X 1-1/4”

204100075

Unavailable

25

Single Bucket Seat Cushion (185) | Includes 25 - 27.

204611590

Unavailable

25

Inferior Panel, Port Side

204612596

Unavailable

26

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

27

Single Bucket Seat Cushion Cover

204612101

Unavailable

28

HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership

204100014

Unavailable

29

Flat Washer 8 mm, Stainless

234082600

$2.43

30

Not Available As Spare Part - Friction Washer

Unavailable

31

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

208463560

Unavailable

32

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

33

THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership

204100077

Unavailable

34

Flat Washer M6, Stainless

234062600

$0.77

Stainless Flat Washer M6

234061600

$0.33

35

Lock Washer Helical M6

234161601

$1.15

36

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

37

Was 293800041 Loctite Primer 7649

219704458

$39.99

38

Loctite 271, 10 ml

293800005

$26.99

39

Double Bucket Seat Ass’y, Port Side | Includes 1 to 5

204611837

Unavailable

Double Bucket Seat Ass'y (Starboard)

204611838

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

41

Seat shell Inside Cover

204611399

Unavailable

42

Double Bucket Seat Cushion, Port Side | Includes 2 to 3

204612014

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Double Bucket Seat Cushion (Starboard)

204611016

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

43

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

44

Double Bucket Seat Cushion Cover (Port S

204612050

Unavailable

Double Bucket Seat Cushion Cover (Starbo

204612052

Unavailable

45

HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership

204100014

Unavailable

46

Flat Washer 8 mm, Stainless

234082600

$2.43

47

Double Bucket Seat Swivel Base (Port Sid

204611755

Unavailable

48

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

208463560

Unavailable

49

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

50

THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership

204100077

Unavailable

51

Flat Washer M6, Stainless

234062600

$0.77

52

Lock Washer Helical M6

234161601

$1.15

53

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

Anchor Cushion Ass'y | Includes 55 - 60.

204612017

Unavailable

56

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

57

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

58

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

59

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

60

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable
