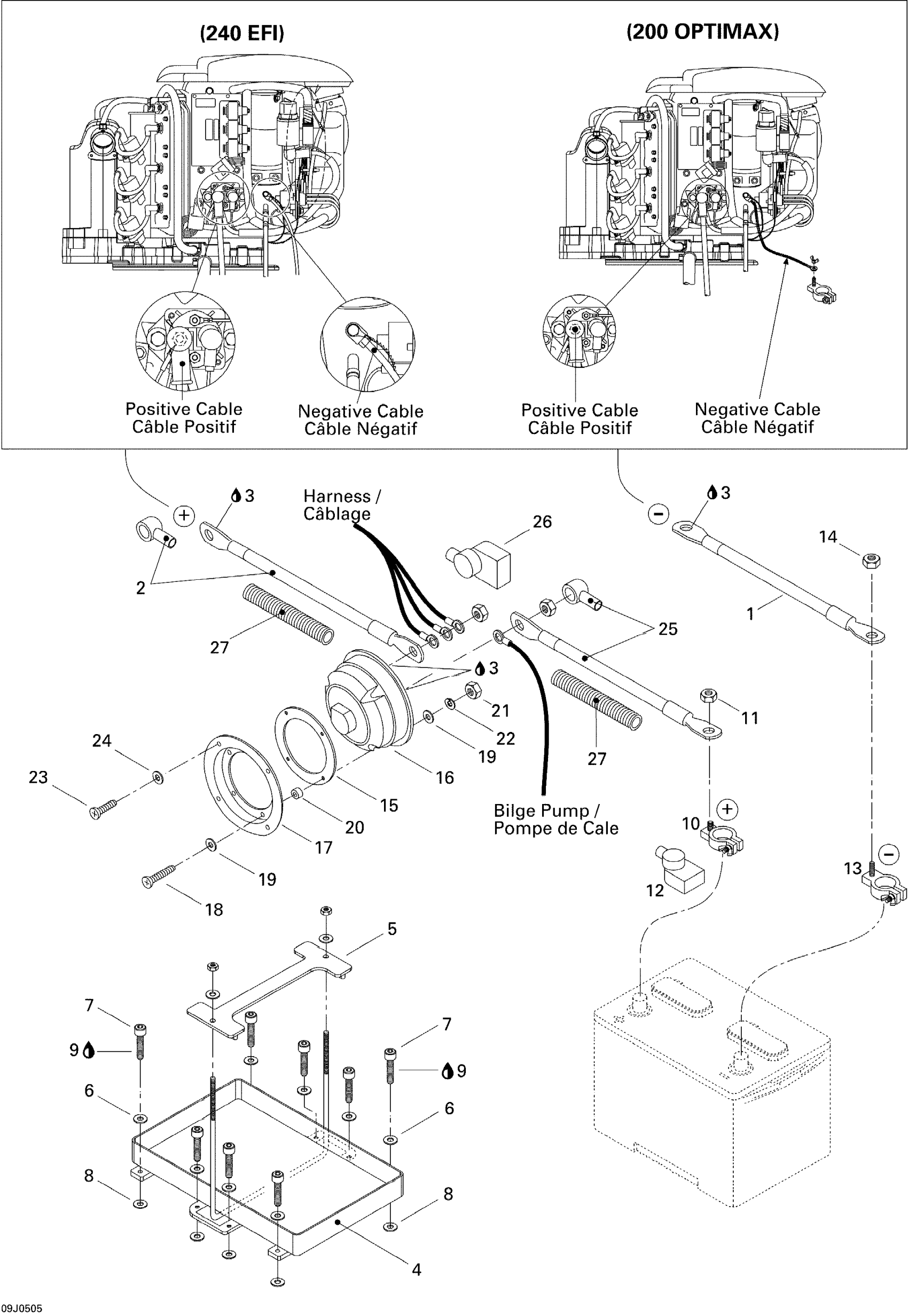

Sea-doo Utopia 185, 2005 Electrical System Diagram

#

Description
Price

1

Battery Ground Cable

204470389

Unavailable

2

Switch Cable, Positive

204470640

Unavailable

3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

4

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

5

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

6

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

7

Socket Head Screw M6 X 25

205062560

$1.69

8

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

9

Loctite 243, 10 ml

293800060

$21.49

10

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

11

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

12

Red Boot

204470388

Unavailable

13

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

14

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

15

SWITCH ADAPTOR - Call your local BRP dealership

204470813

Unavailable

16

BATTERY SWITCH - Call your local BRP dealership

204470814

Unavailable

17

SWITCH SUPPORT - Call your local BRP dealership

204470259

Unavailable

18

SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership

205455060

Unavailable

19

Flat Washer M5, Stainless

234051600

$0.77

20

NYLON SPACER - Call your local BRP dealership

204470330

Unavailable

21

Hex. Nut M5

232051600

$1.15

22

Helical Lock Washer M5

234151601

$1.15

23

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

24

Flat Washer 4 mm, Stainless

234041600

$1.15

25

Switch Cable, Positive

204470640

Unavailable

26

Red Boot

204470388

Unavailable

27

SLIT CONDUIT, METER - Call your local BRP dealership

204550015

Unavailable
