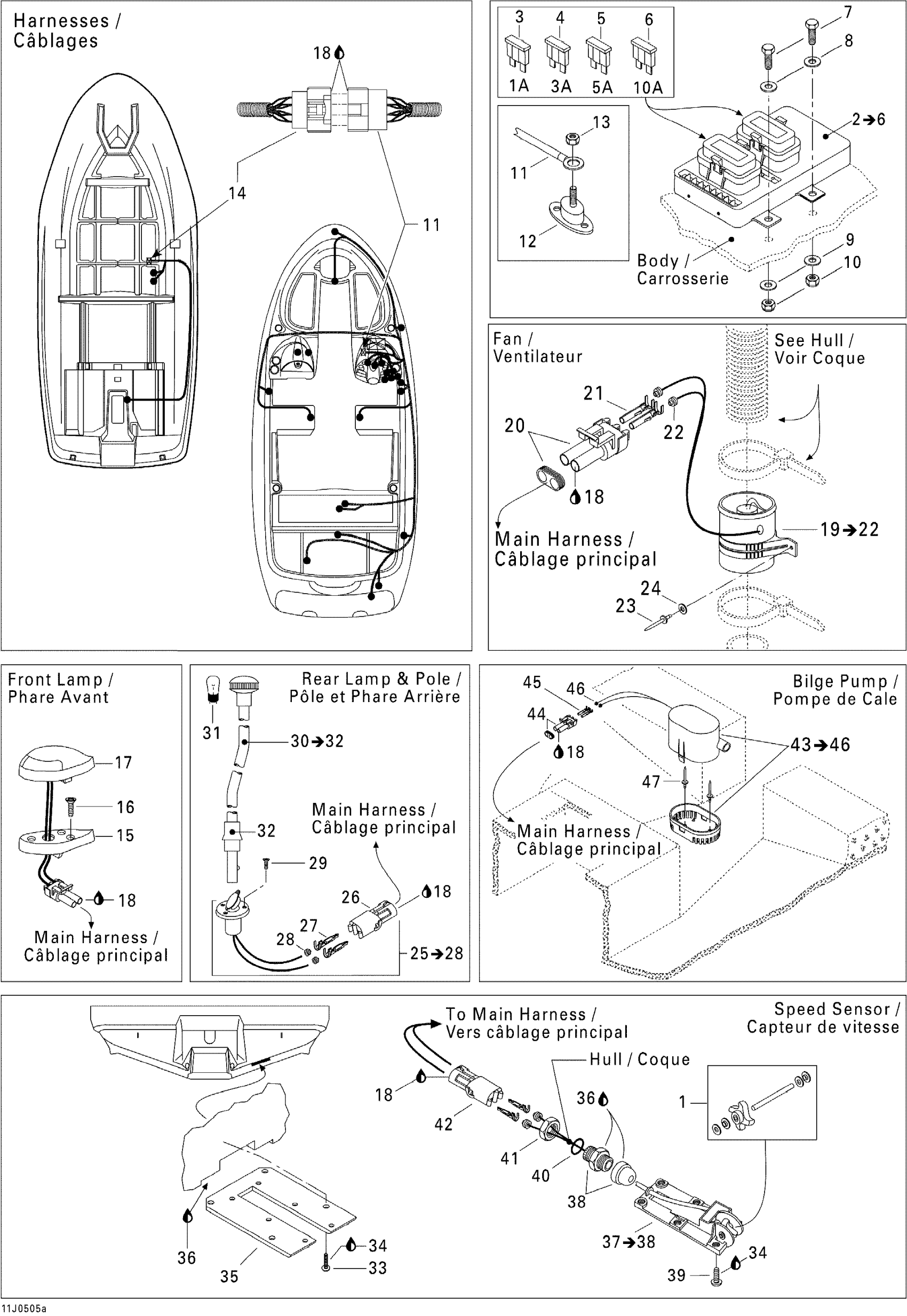

Sea-doo Utopia 185, 2005 Electrical Accessories 1 Diagram

#

Description
Price

1

Paddle Wheel Kit

295500108

Unavailable

2

FUSE BLOCK - Call your local BRP dealership

204470815

Unavailable

3

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

4

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

5

Fuse, 5 Amperes | CE

278000344

$3.28

6

Fuse, 10 Amperes | North America

278001197

$2.21

7

Hex. Screw M6 X 35

207063560

$2.22

8

Flat Washer M6, Stainless

234062600

$0.77

9

Flat Washer M6, Stainless

234062600

$0.77

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

Main Harness, Utopia 185

204470836

Unavailable

12

Ground Post

204470715

Unavailable

13

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

14

Instrument Harness, Mercury

204470800

Unavailable

15

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

16

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

17

Front Lamp

204470372

Unavailable

18

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

19

Fan Ass'y | Includes 44 to 47

204470108

$144.99

20

Male Connector, 2 Circuits

278000220

$15.49

21

Female Terminal

278000223

$3.19

22

Wire Seal

278000218

$4.39

23

Pop Rivet 3/16"

293150008

$0.50

24

Flat Washer 5 mm, Stainless

234052600

$0.77

25

REAR LAMP BASE ASSY - Call your local BRP dealership | 210 Challenger This part replaces 204470643.

204470642

Unavailable

26

Female Housing, 2 Circuits

278000217

$9.59

27

Male Terminal | XT Models

278000222

$3.19

28

Wire Seal

278000218

$4.39

29

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

30

REAR LAMP POLE - Call your local BRP dealership | Includes 26 to 28

204470625

Unavailable

31

Bulb

204470053

Unavailable

32

COLLAR - Call your local BRP dealership

204470350

Unavailable

33

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$2.00

34

Loctite 243, 10 ml

293800060

$21.49

35

Sensor Support

204470538

Unavailable

36

Silicone Sealant 51388, 300 ml

296000309

$36.99

37

SPEED SENSOR ASS'Y - Call your local BRP dealership | Includes 34 to 35

278001997

Unavailable

38

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

39

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

40

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

41

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

42

Female Housing, 2 Circuits

278000217

$9.59

43

Bilge Pump

204471431

Unavailable

44

Male Connector, 2 Circuits

278000220

$15.49

45

Female Terminal

278000223

$3.19

46

Wire Seal

278000218

$4.39

47

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable
