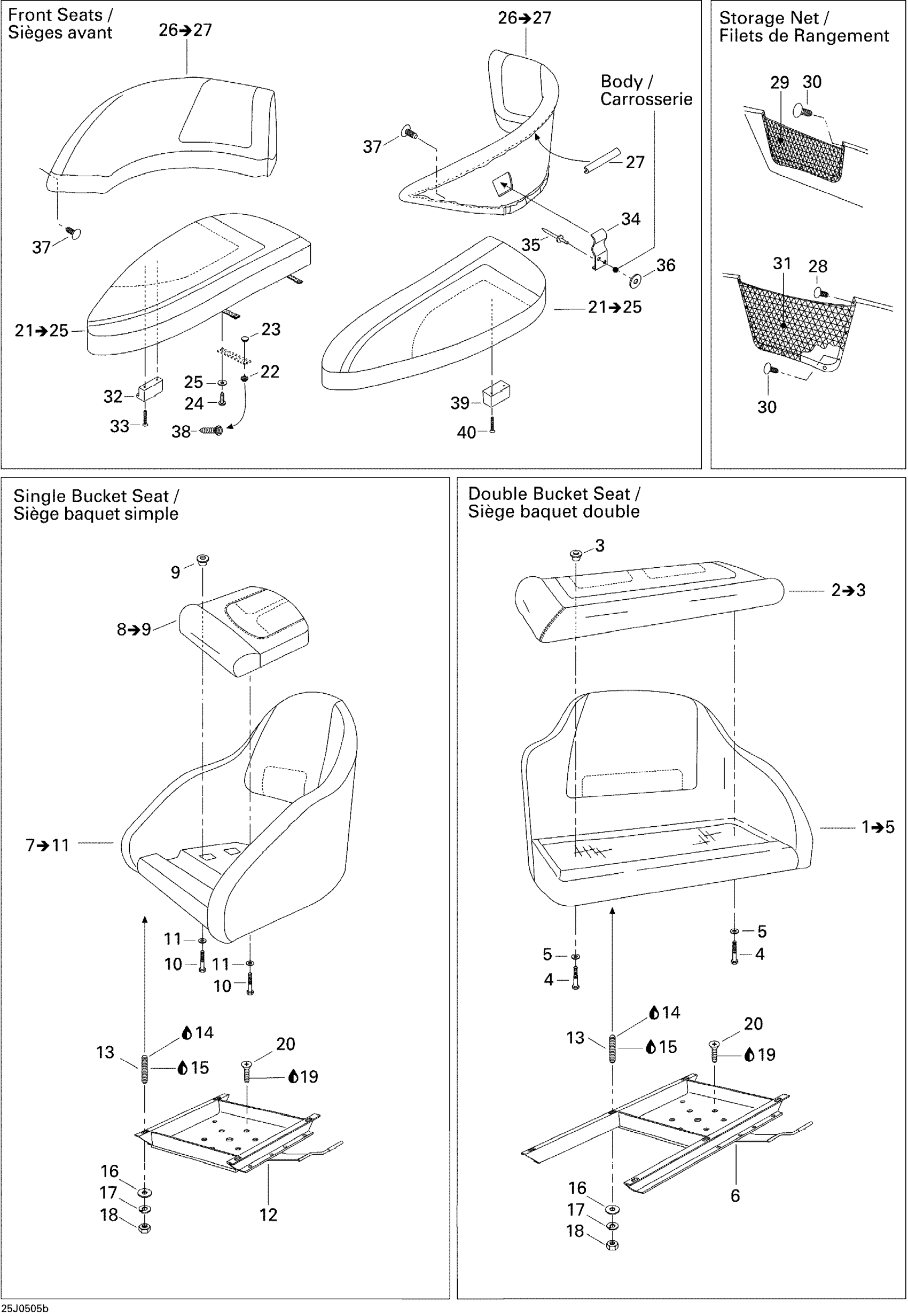

Sea-doo Utopia 185, 2005 09- Seat 2 Diagram
#
1
Double Bucket Seat Ass'y, Port Side | Includes 21 to 24
204612828
Unavailable
2
Bucket Seat Cushion, Port Side
204612850
Unavailable
3
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
4
Pan Head Phillips Screw 1/4-20
204100125
Unavailable
5
Flat Washer 8 mm, Stainless
234082600
$2.43
6
Bucket Seat Swivel Base, Port Side
204611749
Unavailable
7
Simple Bucket Seat Ass'y | Includes 10 to 13
204612829
Unavailable
8
Bucket Seat Cushion
204612854
Unavailable
9
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
10
Pan Head Phillips Screw 1/4-20
204100125
Unavailable
11
Flat Washer 8 mm, Stainless
234082600
$2.43
12
Single Seat Swivel Base
204611789
Unavailable
13
THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership
204100077
Unavailable
14
Loctite 271, 10 ml
293800005
$26.99
15
Was 293800041 Loctite Primer 7649
219704458
$39.99
16
Flat Washer M6, Stainless
234062600
$0.77
17
Lock Washer Helical M6
234161601
$1.15
18
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
19
Loctite 243, 10 ml
293800060
$21.49
20
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership
208463560
Unavailable
21
Seat Cushion Ass'y, Port Side | Includes 28 to 32
204612832
Unavailable
21
Seat Cushion Ass'y, Starboard | Includes 28 to 32
204612833
Unavailable
22
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
23
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
24
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
25
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
26
Backrest Ass'y, Port Side | Includes 38 to 39
204612834
Unavailable
26
Backrest Ass'y, Starboard | Includes 38 to 39
204612835
Unavailable
27
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
28
Black, Dart
414644300
$0.98
29
Front Storage Net, Starboard
204611326
Unavailable
29
Front Storage Net, Port Side
204611529
Unavailable
30
Black, Dart
293730006
$0.99
31
Rear Storage Net, Starboard
204611327
Unavailable
31
Rear Storage Net, Port Side
204611530
Unavailable
32
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
33
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
34
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
35
Pop Rivet 3/16"
293150043
$2.09
36
Stainless Flat Washer M6
234061600
$0.33
37
Black Dart
293730014
$0.99
38
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
39
LATCH - Call your local BRP dealership
204611805
Unavailable
40
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
