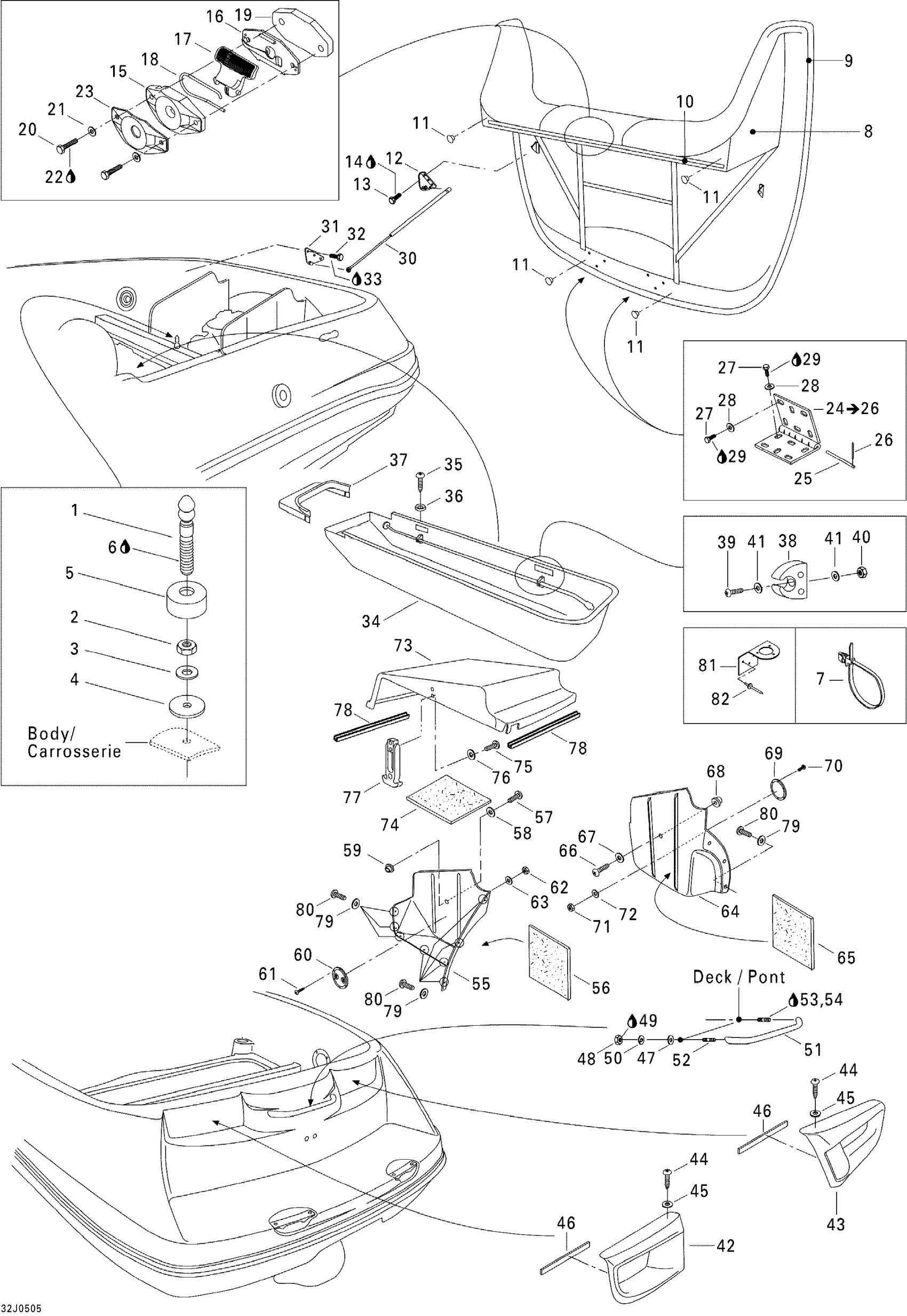

Sea-doo Utopia 185, 2005 09- Engine Compartment Diagram
#
1
DOUBLE LATCH STUD - Call your local BRP dealership
204130052
Unavailable
2
Hex. Jam Nut M10
232100600
$2.22
3
Flat Washer 10 mm, Stainless
234002600
$2.22
4
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
5
Rubber Pad
293830025
Unavailable
6
Loctite 243, 10 ml
293800060
$21.49
7
TIE RAP WITH DART - Call your local BRP dealership
204130098
Unavailable
8
Engine Cover
204072114
Unavailable
9
Seal Tray 1000Mm Long
219704368
$13.99
10
Was 293200017 Neoprene Seal
219704365
$149.99
11
GROMMET - Call your local BRP dealership
293720017
Unavailable
12
Shock Bracket
204073074
$27.99
13
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
14
Loctite 243, 10 ml
293800060
$21.49
15
Latch Ass'y
269700109
$24.99
16
Latch Ass'y
269700109
$24.99
17
Latch Ass'y
269700109
$24.99
18
Latch Spring
269700017
$9.19
19
SHIM - Call your local BRP dealership
269700015
Unavailable
20
Hex. Screw M6 X 50
207065060
$2.22
21
Stainless Flat Washer M6
234061600
$0.33
22
Loctite 243, 10 ml
293800060
$21.49
23
LATCH PROTECTOR - Call your local BRP dealership
204070952
Unavailable
24
HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21
204070127
Unavailable
25
HINGE ROD - Call your local BRP dealership
204070204
Unavailable
26
Cotter Pin M2.5 X 12
204070205
Unavailable
27
Hex. Screw M6 X 25
207162560
$1.47
28
Stainless Flat Washer M6
234061600
$0.33
29
Loctite 243, 10 ml
293800060
$21.49
30
Gas Shock
204071925
Unavailable
31
Shock Bracket
204071673
Unavailable
32
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152560
Unavailable
33
Loctite 243, 10 ml
293800060
$21.49
34
Rear Seat Storage
204071177
Unavailable
35
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
36
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
37
Cap End
204071329
Unavailable
38
Pole Support
291000642
Unavailable
39
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership
208642560
Unavailable
40
Elastic Stop Nut M4
232541600
$1.15
41
Flat Washer 4 mm
234040600
$0.55
42
Vent Cover Ass'y, Port Side
204072102
Unavailable
43
Vent Cover Ass'y, Starboard
204072104
Unavailable
44
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
45
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
46
Was 293200017 Neoprene Seal
219704365
$149.99
47
Flat Washer 10 mm, Stainless
234002600
$2.22
48
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
49
Loctite 271, 10 ml
293800005
$26.99
50
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
51
GRAB HANDLE - Call your local BRP dealership
204071122
Unavailable
52
Threaded Stud
204100031
Unavailable
53
Loctite 271, 10 ml
293800005
$26.99
54
Was 293800041 Loctite Primer 7649
219704458
$39.99
55
Not Available As Spare Part - Friction Washer
Unavailable
56
Sound Barrier, Port Side
204071400
Unavailable
57
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
58
Flat Washer 5 mm, Stainless
234052600
$0.77
59
Strap Retainer
204071384
Unavailable
60
BOTTOM PLATE - Call your local BRP dealership
204070622
Unavailable
61
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership
208442060
Unavailable
62
Elastic Stop Nut M4
232541600
$1.15
63
Flat Washer 4 mm, Stainless
234042600
$1.15
64
Bulkhead Panel, Starboard
204071828
Unavailable
65
Sound Barrier, Port Side
204071400
Unavailable
66
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
67
Flat Washer 5 mm, Stainless
234052600
$0.77
68
Strap Retainer
204071384
Unavailable
69
BOTTOM PLATE - Call your local BRP dealership
204070622
Unavailable
70
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership
208442060
Unavailable
71
Elastic Stop Nut M4
232541600
$1.15
72
Flat Washer 4 mm, Stainless
234042600
$1.15
73
Bulkhead Cap
204071731
Unavailable
74
Sound Barrier, Port Side
204071400
Unavailable
75
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
76
Flat Washer 5 mm, Stainless
234052600
$0.77
77
Rubber Latch
204071330
Unavailable
78
Seal Tray 1000Mm Long
219704368
$13.99
79
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
80
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
81
Oil Filler Bracket
204071235
Unavailable
82
RIVET - Call your local BRP dealership
293150065
Unavailable
