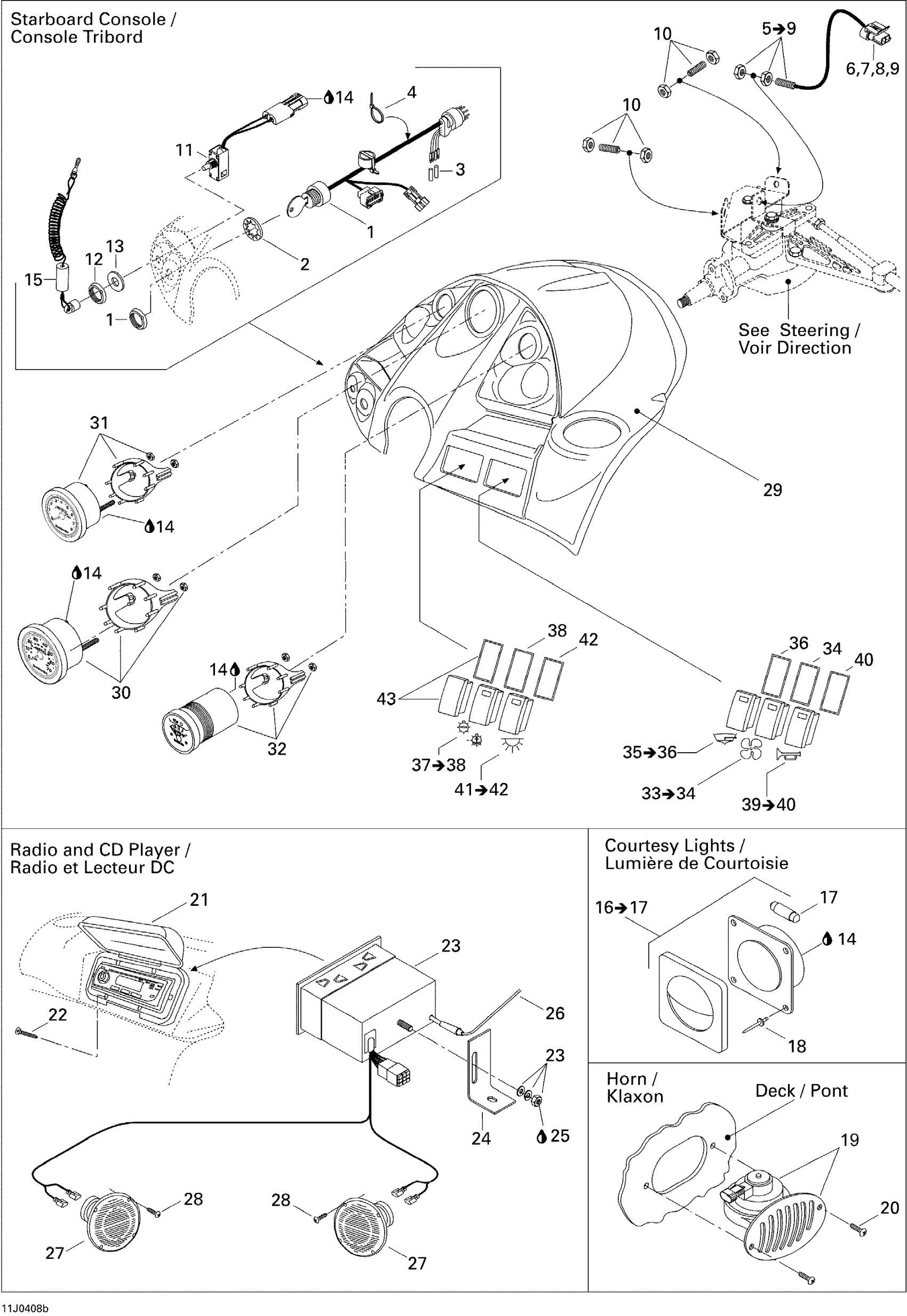

Sea-doo Utopia 185, 2004 Electrical Accessories 2 Diagram
#
1
Instrument Harness, Mercury
204470800
Unavailable
2
Internal Tooth Lock Washer 1"
204100085
Unavailable
3
RUBBER CAP - Call your local BRP dealership
204130033
Unavailable
4
Tie Wrap 94 mm | 4X4
293750001
Unavailable
5
LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50
204470631
Unavailable
6
Female Terminal Housing
204470634
Unavailable
7
Terminal Support
204470635
Unavailable
8
Wire Seal
204470641
Unavailable
9
Female Terminal
278001481
Unavailable
10
Low Speed Control Actuator
204470632
Unavailable
11
SAFETY SWITCH ASS'Y - Call your local BRP dealership | Includes 10 to 13
204470867
Unavailable
12
Safety Switch Nut
278000099
Unavailable
13
FLAT WASHER - Call your local BRP dealership
204100027
Unavailable
14
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
15
Safety Lanyard
278001431
Unavailable
16
Courtesy Light Ass'y | Includes 29 to 30
204470026
Unavailable
17
BULB - Call your local BRP dealership
204470081
Unavailable
18
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
19
HORN - Call your local BRP dealership
204470801
Unavailable
20
Phillips Tapping Screw M4.2 X 32
209943260
Unavailable
21
RADIO CD PLAYER COVER - Call your local BRP dealership
204470894
Unavailable
22
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
23
Compact Disk Radio
204470869
Unavailable
24
Radio Support
204470688
Unavailable
25
Loctite 243, 10 ml
293800060
Unavailable
26
Antenna
204470380
Unavailable
27
Speaker
204470378
Unavailable
28
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
29
Dashboard Top Ass'y
204470898
Unavailable
30
Speedometer Gauge
204470803
Unavailable
31
Tachometer
204470802
Unavailable
32
Oil/Fuel Gauge
204470804
Unavailable
33
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
34
Gasket
204470132
Unavailable
35
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
36
Gasket
204470132
Unavailable
37
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
38
Gasket
204470132
Unavailable
39
HORN SWITCH ASS'Y - Call your local BRP dealership
204470101
Unavailable
40
Gasket
204470132
Unavailable
41
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470102
Unavailable
42
Gasket
204470132
Unavailable
43
SWITCH PLUG - Call your local BRP dealership
204470596
Unavailable
