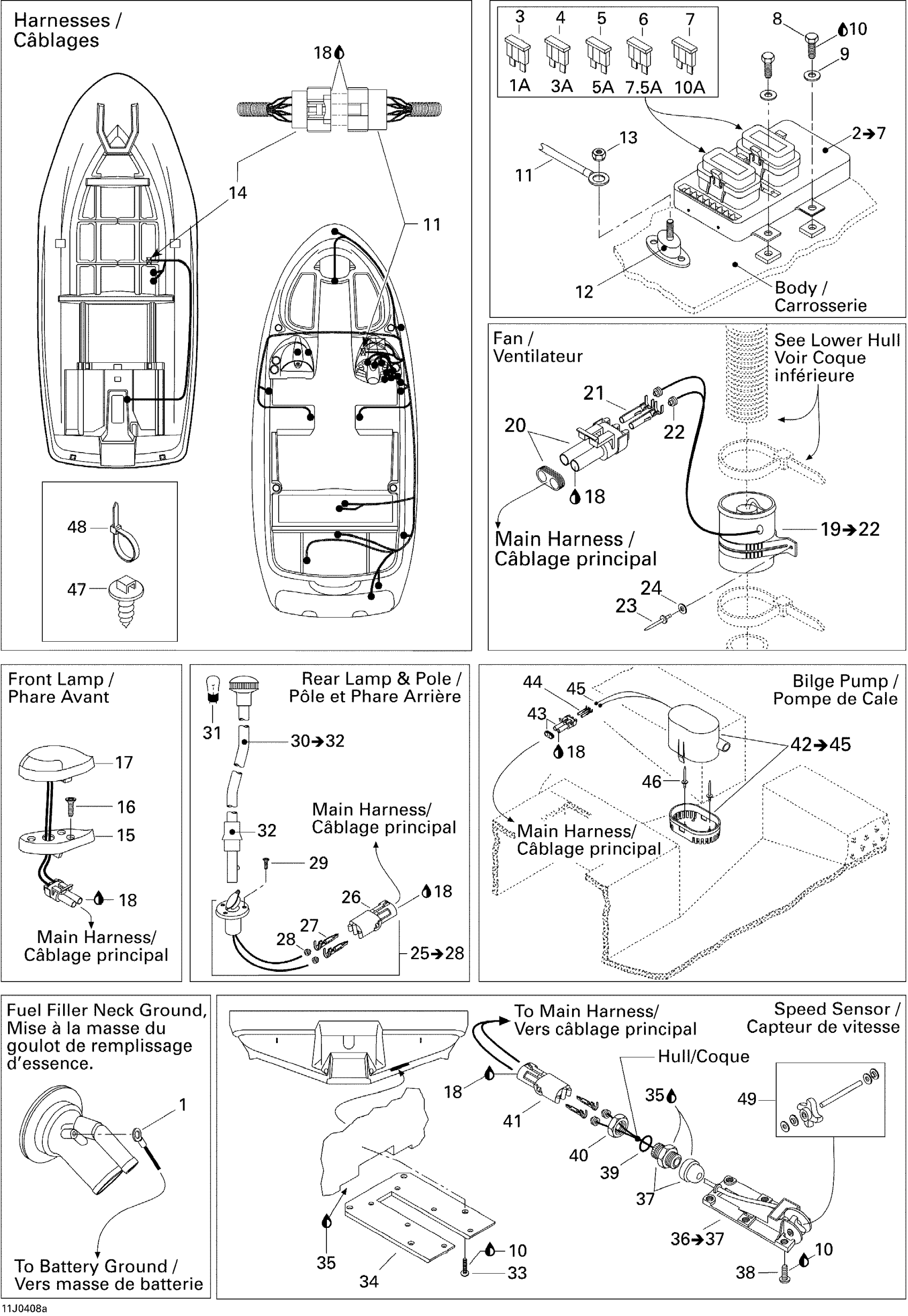

Sea-doo Utopia 185, 2004 Electrical Accessories 1 Diagram
#
1
Ground Cable
204470730
Unavailable
2
FUSE BLOCK - Call your local BRP dealership
204470815
Unavailable
3
FUSE, 1 AMPERE - Call your local BRP dealership
409012800
Unavailable
4
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
5
Fuse, 5 Amperes | CE
278000344
Unavailable
6
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
7
Fuse, 10 Amperes | North America
278001197
Unavailable
8
Hex. Cap Screw M6 X 12
207161260
Unavailable
9
Flat Washer M6, Stainless
234062600
Unavailable
10
Loctite 243, 10 ml
293800060
Unavailable
11
Main Harness, Utopia 185
204470836
Unavailable
11
Main Harness, Utopia 205
204470830
Unavailable
12
Ground Post
204470715
Unavailable
13
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
14
Instrument Harness, Mercury
204470800
Unavailable
15
FRONT LAMP SUPPORT - Call your local BRP dealership
204470072
Unavailable
16
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
17
Front Lamp
204470372
Unavailable
18
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
19
Fan Ass'y | Includes 44 to 47
204470108
Unavailable
20
Male Connector, 2 Circuits
278000220
Unavailable
21
Female Terminal
278000223
Unavailable
22
Wire Seal
278000218
Unavailable
23
Pop Rivet 3/16"
293150008
Unavailable
24
Flat Washer 5 mm, Stainless
234052600
Unavailable
25
REAR LAMP BASE ASSY - Call your local BRP dealership | 210 Challenger This part replaces 204470643.
204470642
Unavailable
26
Female Housing, 2 Circuits
278000217
Unavailable
27
Male Terminal | XT Models
278000222
Unavailable
28
Wire Seal
278000218
Unavailable
29
Phillips Tapping Screw M4.2 X 32
209943260
Unavailable
30
REAR LAMP POLE - Call your local BRP dealership | Includes 26 to 28
204470625
Unavailable
31
Bulb
204470053
Unavailable
32
COLLAR - Call your local BRP dealership
204470350
Unavailable
33
Phillips Screw M6 X 35 | W/O Weedless System
208563560
Unavailable
34
Sensor Support
204470538
Unavailable
35
Silicone Sealant 51388, 300 ml
296000309
Unavailable
36
SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.
278001998
Unavailable
37
ELECTRIC CONNECTION - Call your local BRP dealership
293710031
Unavailable
38
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208551060
Unavailable
39
SEAL WASHER - Call your local BRP dealership
278000416
Unavailable
40
LOCKING NUT - Call your local BRP dealership
293710032
Unavailable
41
Female Housing, 2 Circuits
278000217
Unavailable
42
Bilge Pump
204471431
Unavailable
43
Male Connector, 2 Circuits
278000220
Unavailable
44
Female Terminal
278000223
Unavailable
45
Wire Seal
278000218
Unavailable
46
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
47
Mount Dart
293730040
Unavailable
48
Tie-Rap 180 mm
414115200
Unavailable
49
Paddle Wheel Kit
295500108
Unavailable
