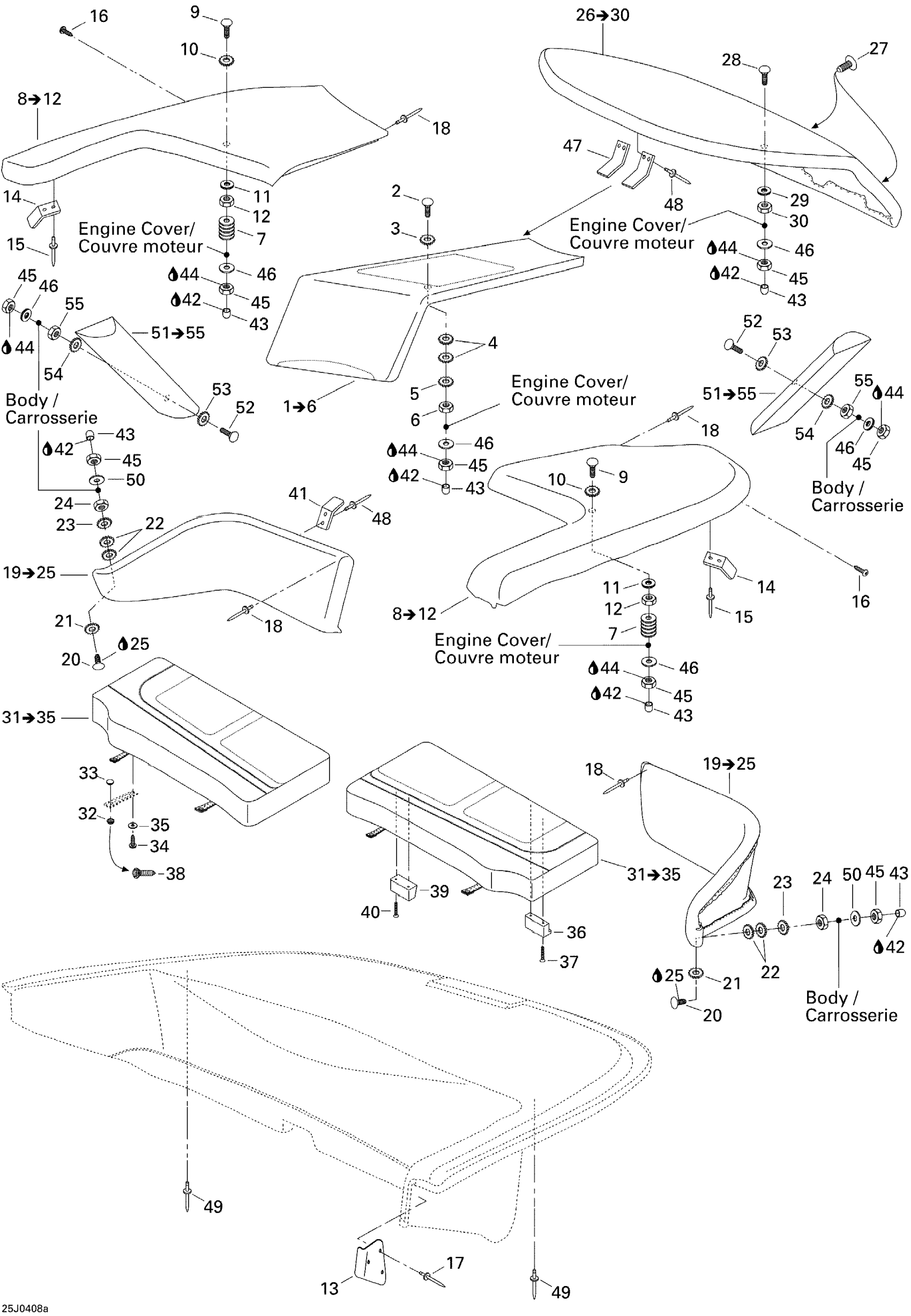

Sea-doo Utopia 185, 2004 09- Seat (Rear Seat) Diagram
#
1
Sundeck Center Cushion | Includes 1 to 6
204612746
Unavailable
2
Elevator Bolt
204000130
Unavailable
3
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
4
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
5
External Serrated Lock Washer 6 mm
234461608
$1.15
6
Hex. Jam Nut
204100060
Unavailable
7
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
8
Sundeck Cushion, Port Side | Includes 8 to 12
204611831
Unavailable
8
Sundeck Cushion, Starboard | Includes 8 to 12
204611833
Unavailable
9
Screw #8 X 1/2”
204100088
Unavailable
10
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
11
External Serrated Lock Washer 6 mm
234461608
$1.15
12
Hex. Jam Nut
204100060
Unavailable
13
Upholstery Cap, Port Side
204611599
Unavailable
13
Upholstery Cap, Starboard
204611600
Unavailable
14
Slotted Keyhold Clip
204130029
Unavailable
15
Pop RIvet 1/8 X ,375
293150285
$0.33
16
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
17
Avdel Rivet 3/16"
293150037
$0.56
18
Pop Rivet 3/16"
293150013
$1.37
19
Sundeck Backrest, Port Side | Includes 19 to 25
204612786
Unavailable
19
Sundeck Backrest, Starboard | Includes 19 to 25
204612787
Unavailable
20
Elevator Bolt
204000130
Unavailable
21
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
22
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
23
External Serrated Lock Washer 6 mm
234461608
$1.15
24
Hex. Jam Nut
204100060
Unavailable
25
Loctite 243, 10 ml
293800060
$21.49
26
Sundeck Rear Cushion | Includes 26 to 30
204611836
Unavailable
27
Black, Dart
293730006
$0.99
28
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
29
External Serrated Lock Washer 6 mm
234461608
$1.15
30
Hex. Jam Nut
204100060
Unavailable
31
Rear Seat Cushion Ass'y, Port | Includes 31 to 35
204612771
Unavailable
31
Rear Seat Cushion Ass'y, Starboard | Includes 31 to 35
204612772
Unavailable
32
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
33
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
34
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
35
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
36
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
37
TAPPING PAN SCREW M14 X 2 - Call your local BRP dealership
204100120
Unavailable
38
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
39
LATCH - Call your local BRP dealership
204611805
Unavailable
40
SCREW #8 X 1-1/4? - Call your local BRP dealership
204100081
Unavailable
41
RETAINING CLIP - Call your local BRP dealership
204611531
Unavailable
42
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
43
Plastic Cap, White
204130008
Unavailable
44
Loctite 243, 10 ml
293800060
$21.49
45
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
46
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
47
SUNDECK PLATE - Call your local BRP dealership
204611597
Unavailable
48
Pop Rivet 3/16"
293150008
$0.50
49
Pop Rivet 3/16"
293150008
$0.50
50
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
51
Sound Pad, Starboard | Includes 51 to 55
204612621
Unavailable
51
Sound Pad, Port Side | Includes 51 to 55
204612627
Unavailable
52
Elevator Bolt
204000130
Unavailable
53
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
54
External Serrated Lock Washer 6 mm
234461608
$1.15
55
Hex. Jam Nut
204100060
Unavailable
