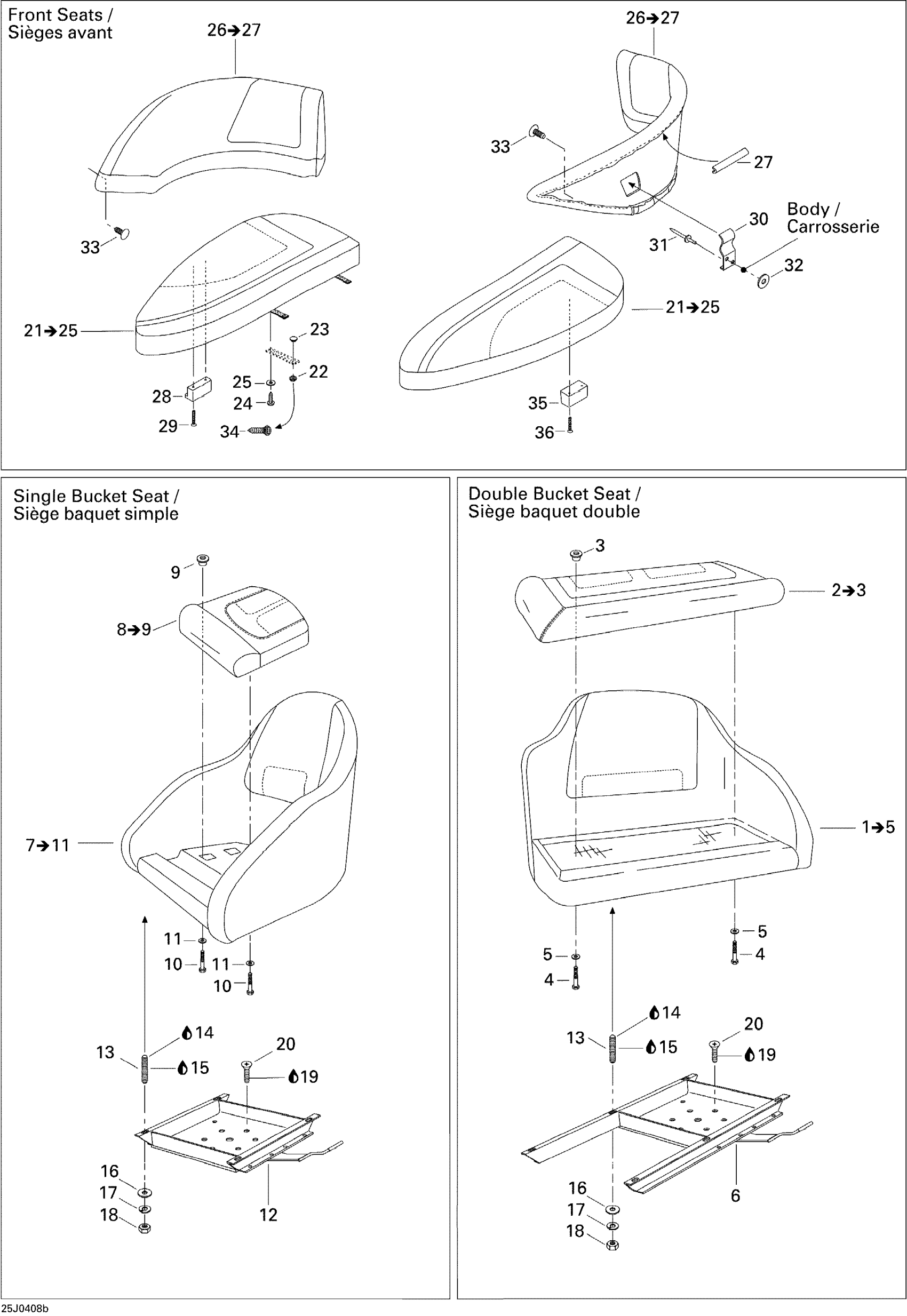

Sea-doo Utopia 185, 2004 Seat (Front, Driver and Passenger Seat) Diagram

#

Description
Price

1

Double Bucket Seat Ass’y, Port Side | Includes 1 to 5

204611837

Unavailable

2

Double Bucket Seat Cushion, Port Side | Includes 2 to 3

204612014

Unavailable

3

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

4

Pan Head Phillips Screw 1/4-20

204100125

Unavailable

5

Flat Washer 8 mm, Stainless

234082600

Unavailable

6

Bucket Seat Swivel Base, Port Side

204611749

Unavailable

7

Single Bucket Seat Ass’y | Includes 7 to 11

204611832

Unavailable

8

Single Bucket Seat Cushion | Includes 8 to 9

204612096

Unavailable

9

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

10

Pan Head Phillips Screw 1/4-20

204100125

Unavailable

11

Flat Washer 8 mm, Stainless

234082600

Unavailable

12

Single Seat Swivel Base

204611789

Unavailable

13

THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership

204100077

Unavailable

14

Loctite 271, 10 ml

293800005

Unavailable

15

Was 293800041 Loctite Primer 7649

219704458

Unavailable

16

Flat Washer M6, Stainless

234062600

Unavailable

17

Lock Washer Helical M6

234161601

Unavailable

18

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

19

Loctite 243, 10 ml

293800060

Unavailable

20

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

208463560

Unavailable

21

Front Seat Cushion Ass’y, Port Side | Includes 21 to 25

204612548

Unavailable

21

Front Seat Cushion Ass’y, Starboard | Includes 21 to 25

204612549

Unavailable

22

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

23

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

24

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

25

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

26

Front Seat Backrest Ass’y, Port Side | Includes 26 to 27

204611843

Unavailable

26

Front Seat Backrest Ass’y, Starboard | Includes 26 to 27

204611844

Unavailable

27

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

28

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

29

TAPPING PAN SCREW M14 X 2 - Call your local BRP dealership

204100120

Unavailable

30

SEAT SUPPORT - Call your local BRP dealership

204613998

Unavailable

31

Pop Rivet 3/16"

293150043

Unavailable

32

Stainless Flat Washer M6

234061600

Unavailable

33

Black Dart

293730014

Unavailable

34

SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership

202000159

Unavailable

35

LATCH - Call your local BRP dealership

204611805

Unavailable

36

SCREW #8 X 1-1/4? - Call your local BRP dealership

204100081

Unavailable
