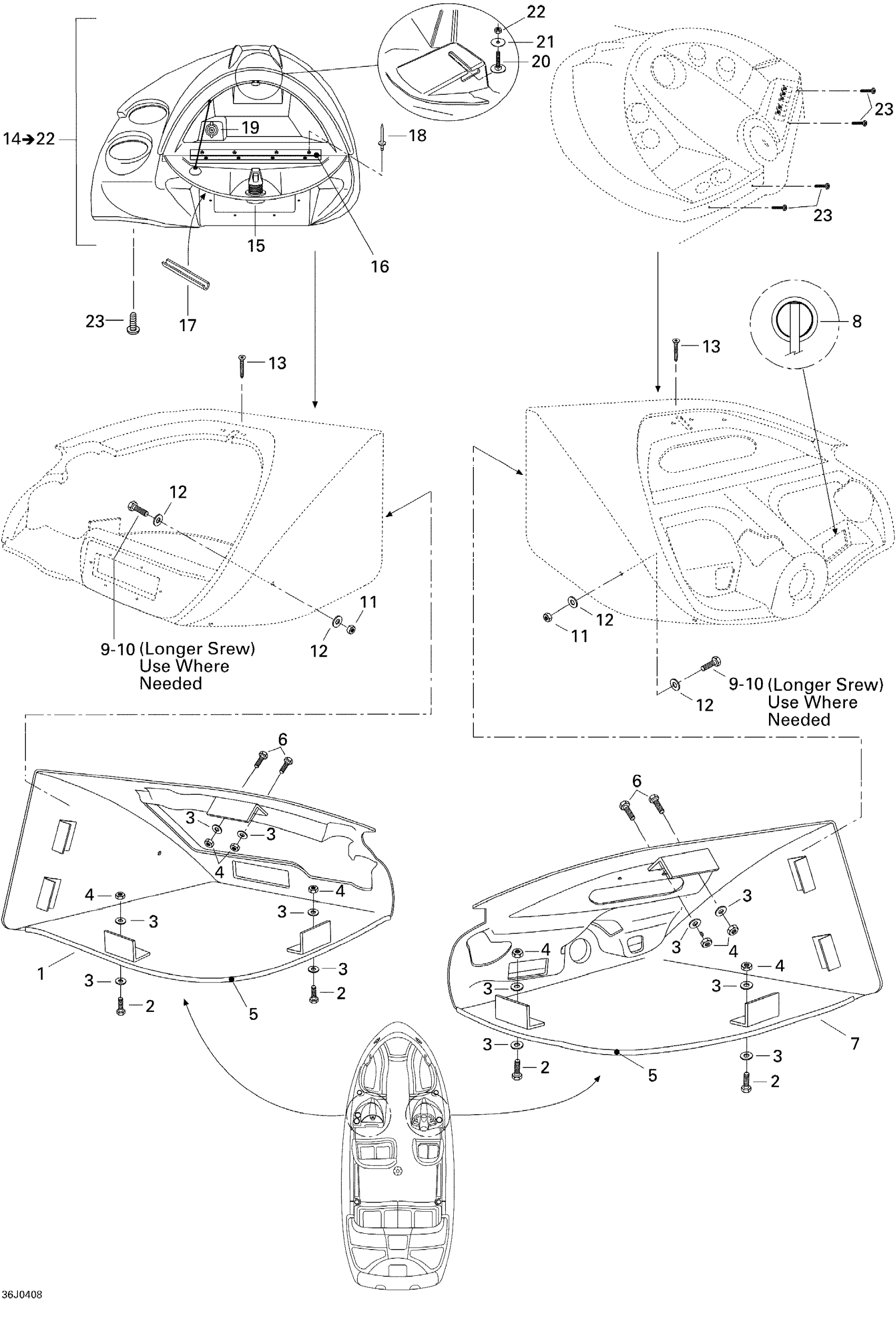

Sea-doo Utopia 185, 2004 Front Console and Glove Box Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Hex. Screw M6 X 30

207163060

$1.48

3

FLAT WASHER 6 MM - Call your local BRP dealership

234060600

Unavailable

4

Hex. Elastic Stop Nut M6

232561600

$1.15

5

TRIM, WHITE - Call your local BRP dealership

204071878

Unavailable

6

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

9

Hex. Screw M6 X 45

207164560

$1.89

10

Hex. Screw M6 X 65

207166560

$2.75

11

Hex. Elastic Stop Nut M6

232561600

$1.15

12

Flat Washer M6, Stainless

234062600

$0.77

13

PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership

204100056

Unavailable

14

GLOVE BOX ASS'Y - Call your local BRP dealership | Includes 21 to 29

204073355

Unavailable

15

DOOR LATCH - Call your local BRP dealership

204071524

Unavailable

16

Hinge

204071525

Unavailable

17

Door Edge

204071526

Unavailable

18

Pop Rivet

204130021

Unavailable

19

DC Outlet

710001248

$37.99

20

Elevator Bolt

204000130

Unavailable

21

FLAT WASHER 9/32? - Call your local BRP dealership

204100089

Unavailable

22

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

23

PHILLIPS FORMING SCREW M8 X 3/4? - Call your local BRP dealership

204100126

Unavailable
