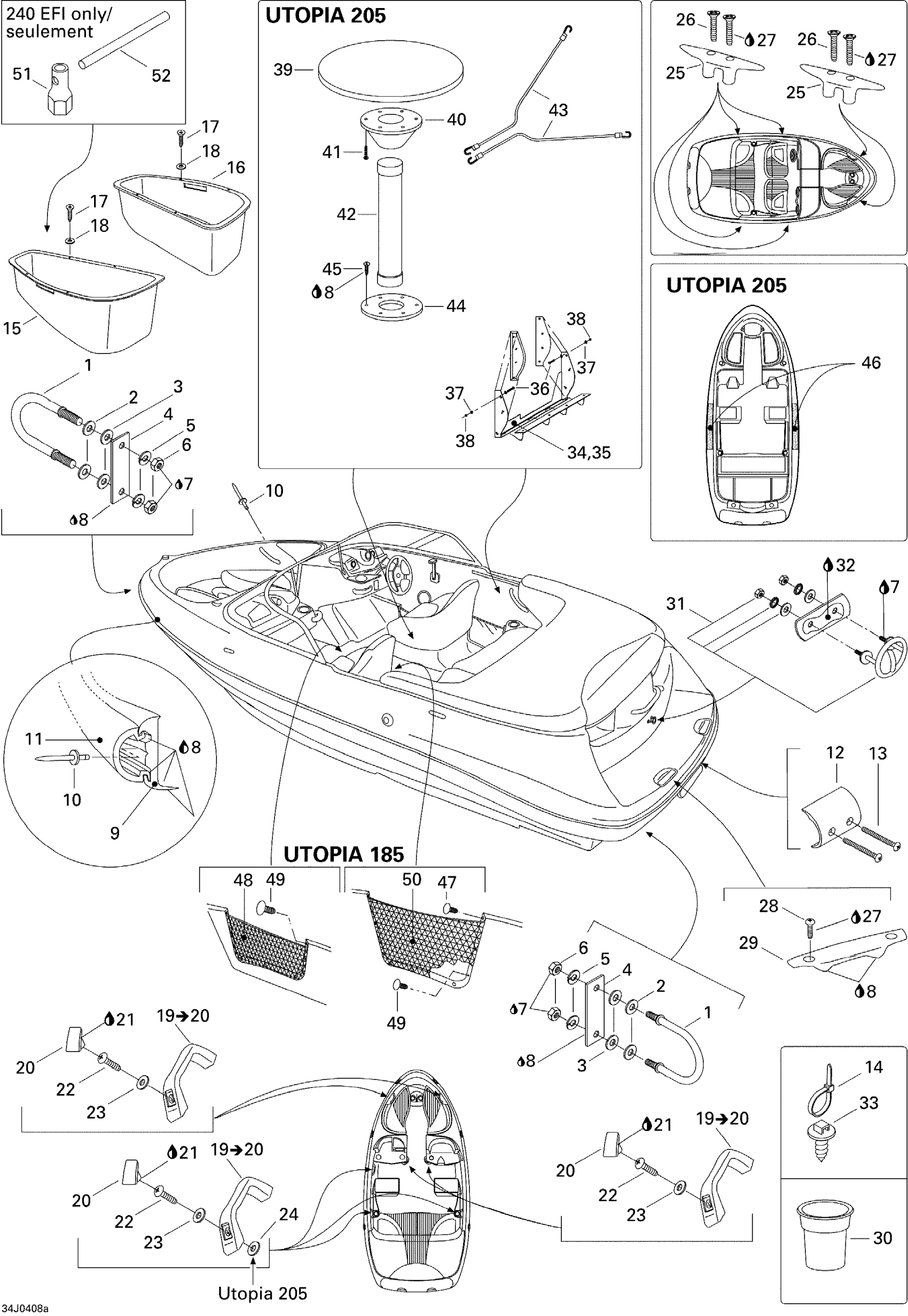

Sea-doo Utopia 185, 2004 09- Body and Accessories 1 Diagram
#
1
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
2
Flat Washer M8.5 x 18
293050001
$3.07
3
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
4
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
5
Lock Washer 8 mm, Stainless
234181601
$0.55
6
Hex. Nut M8
232081600
$1.47
7
Loctite 271, 10 ml
293800005
$26.99
8
Silicone Sealant 51388, 300 ml
296000309
$36.99
9
Black, Bumper
204050136
Unavailable
9
Bumper, Black
204050467
Unavailable
10
Pop Rivet 3/16"
293150013
$1.37
11
Black, Trim - Call your local BRP dealership
204050137
Unavailable
11
Bumper Trim, Black
204050463
Unavailable
12
BUMPER COVER, BLACK - Call your local BRP dealership
204050031
Unavailable
13
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
14
Tie-Rap 180 mm
414115200
$0.11
15
Storage Tray, Port Side
204071773
Unavailable
16
Storage Tray, Starboard
204071774
Unavailable
17
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
18
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
19
GRIP HANDLE, WHITE - Call your local BRP dealership | Includes 20a to 20b
204071182
Unavailable
20
Snap Cap
204071195
Unavailable
21
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
22
SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership
205963060
Unavailable
23
Stainless Flat Washer M6
234061600
$0.33
24
Flat Washer M6, Stainless
234062600
$0.77
25
CLEAT - Call your local BRP dealership | STD
204070592
Unavailable
26
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership | STD
204100144
Unavailable
27
Loctite 243, 10 ml
293800060
$21.49
28
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
205364060
Unavailable
29
GRIP HANDLE, BLACK - Call your local BRP dealership
204070194
Unavailable
30
CUP HOLDER - Call your local BRP dealership | STD
291000619
Unavailable
31
Ski Tow Hook
204070206
Unavailable
32
Silicone Sealant 51388, 300 ml
296000309
$36.99
33
Mount Dart
293730040
$1.04
34
Storage Latéral Carpet
204071521
Unavailable
35
Storage Latéral Carpet
204071522
Unavailable
36
Hex. Screw M6 X 70
207067060
$5.61
37
Flat Washer M6, Stainless
234062600
$0.77
38
Hex. Elastic Stop Nut M6
232561600
$1.15
39
Cockpit Table
204070632
Unavailable
40
TABLE MOUNT - Call your local BRP dealership | Challenger S
204071315
Unavailable
41
TAPPING SCREW M5 X 19 - Call your local BRP dealership | Challenger S
209951960
Unavailable
42
TABLE POST, LARGE - Call your local BRP dealership | Challenger S
204070634
Unavailable
43
ICE CHEST STRAP - Call your local BRP dealership
204070905
Unavailable
44
TABLE BASE - Call your local BRP dealership
204071209
Unavailable
45
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
46
Deck/Storage Carpet
204071534
Unavailable
47
Black, Dart
414644300
$0.98
48
Front Storage Net, Port Side
204611529
Unavailable
48
Front Storage Net, Starboard
204611326
Unavailable
49
Black, Dart
293730006
$0.99
50
Rear Storage Net, Port Side
204611530
Unavailable
50
Rear Storage Net, Starboard
204611327
Unavailable
51
Socket Wrench
204630050
Unavailable
52
Not Available As Spare Part - Friction Washer
Unavailable
