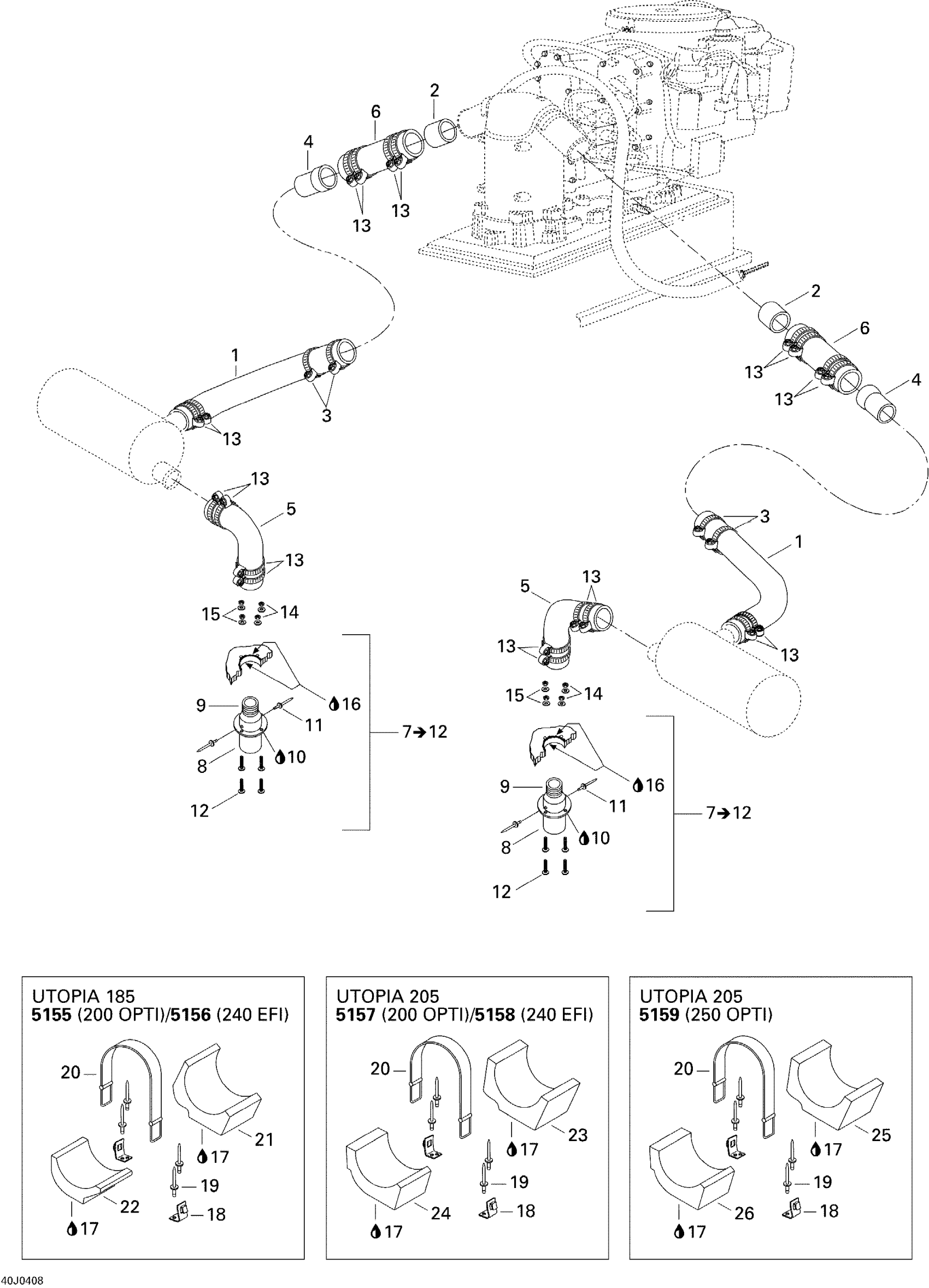

Sea-doo Utopia 185, 2004 01- Exhaust Diagram
#
Description
Price
1
Exhaust Hose
204340408
Unavailable
2
Exhaust Spacer
204340403
$30.49
3
Tridon Clamp
293650064
$8.29
4
Exhaust Adaptor
204340402
$59.49
5
Exhaust Hose
204340368
Unavailable
5
Exhaust Hose
204340299
Unavailable
6
Exhaust Hose, Meter
204340256
Unavailable
7
Exhaust Outlet Ass’Y | Includes 7 to 10
204340322
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Exhaust Outlet
204340229
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Pop Rivet 3/16"
293150043
$2.09
12
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership
208663560
Unavailable
13
Tridon Clamp
293650112
$12.99
14
Hex. Elastic Stop Nut M6
232561600
$1.15
15
Stainless Flat Washer M6
234061600
$0.33
16
Silicone Sealant 51388, 300 ml
296000309
$36.99
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Strap Clip 90°
204060017
Unavailable
19
Pop Rivet 3/16"
293150088
$0.99
20
STRAP - Call your local BRP dealership
293850022
Unavailable
21
Outer Muffler Support, Port Side
204340307
Unavailable
Outer Muffler Support, Starboard
204340395
Unavailable
22
Inner Muffler Support, Port Side
204340372
Unavailable
Inner Muffler Support, Starboard
204340373
Unavailable
23
Outer Muffler Support, Port Side
204340369
Unavailable
Outer Muffler Support, Starboard
204340371
Unavailable
24
Muffler Inner Support, Port Side
204340370
Unavailable
25
Outer Muffler Support, Port Side
204340369
Unavailable
Outer Muffler Support, Starboard
204340371
Unavailable
26
Inner Muffler Support
204340383
Unavailable
