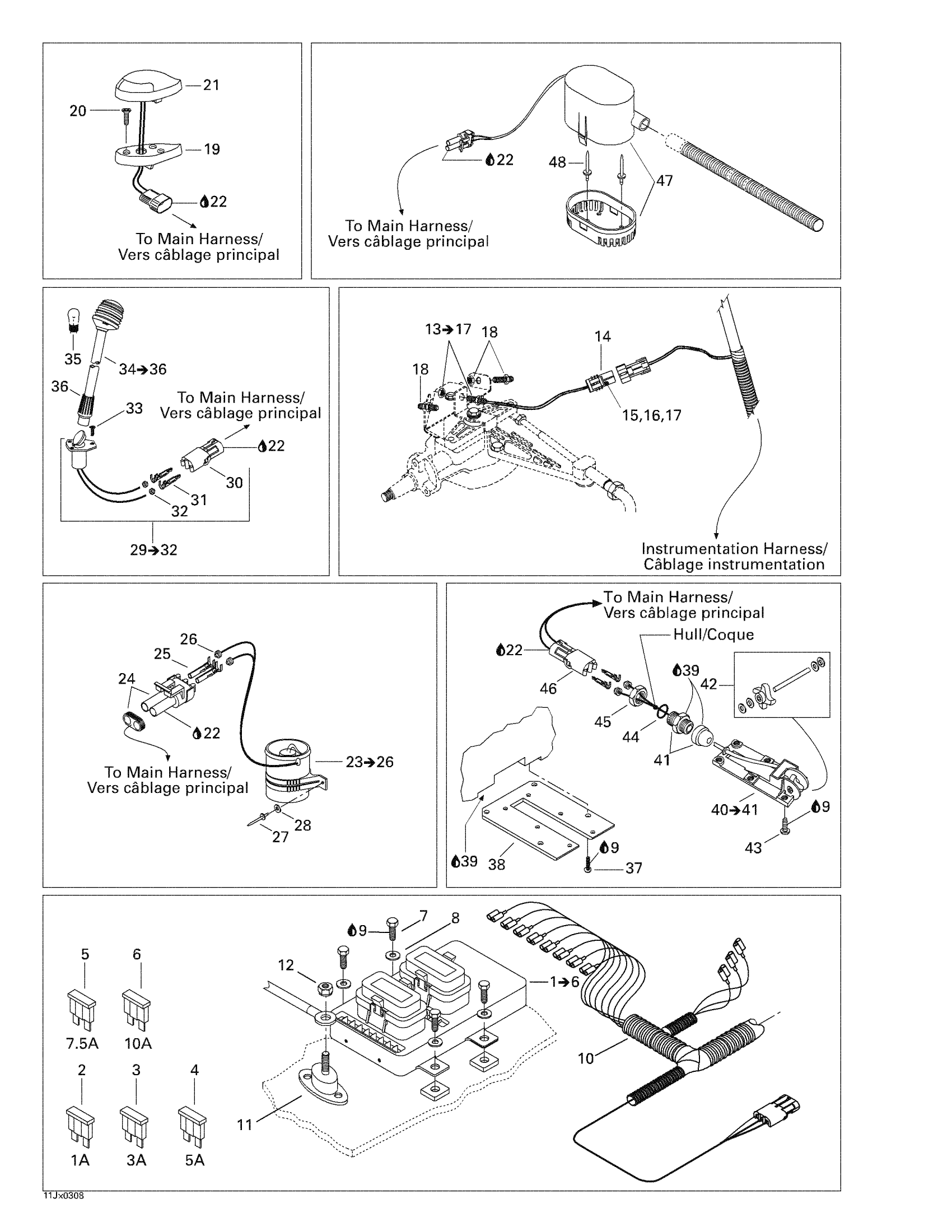

Sea-doo Utopia 185, 2003 10- Electrical Accessories 2 Diagram

#

Description
Price

1

FUSE BLOCK - Call your local BRP dealership

204470815

Unavailable

2

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

3

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

4

Fuse, 5 Amperes | CE

278000344

$3.28

5

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

6

Fuse, 10 Amperes | North America

278001197

$2.21

7

Hex. Cap Screw M6 X 12

207161260

$1.26

8

Flat Washer M6, Stainless

234062600

$0.77

9

Loctite 243, 10 ml

293800060

$21.49

10

Main Harness, Utopia 185

204470836

Unavailable

Main Harness, Utopia 205

204470830

Unavailable

11

Ground Post

204470715

Unavailable

12

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

13

LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50

204470631

Unavailable

14

Female Terminal Housing

204470634

Unavailable

15

Terminal Support

204470635

Unavailable

16

Wire Seal

204470641

Unavailable

17

Female Terminal

278001481

$3.49

18

Low Speed Control Actuator

204470632

$42.99

19

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

20

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

21

Front Lamp

204470372

Unavailable

22

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

23

Fan Ass'y | Includes 44 to 47

204470108

$144.99

24

Male Connector, 2 Circuits

278000220

$15.49

25

Female Terminal

278000223

$3.19

26

Wire Seal

278000218

$4.39

27

Pop Rivet 3/16"

293150008

$0.50

28

Flat Washer 5 mm, Stainless

234052600

$0.77

29

REAR LAMP BASE ASSY - Call your local BRP dealership | 210 Challenger This part replaces 204470643.

204470642

Unavailable

30

Female Housing, 2 Circuits

278000217

$9.59

31

Male Terminal | XT Models

278000222

$3.19

32

Wire Seal

278000218

$4.39

33

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

34

REAR LAMP POLE - Call your local BRP dealership | Includes 26 to 28

204470625

Unavailable

35

Bulb

204470053

Unavailable

36

COLLAR - Call your local BRP dealership

204470350

Unavailable

37

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$2.00

38

Sensor Support

204470538

Unavailable

39

Silicone Sealant 51388, 300 ml

296000309

$36.99

40

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

41

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

42

Paddle Wheel Kit

295500108

Unavailable

43

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

44

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

45

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

46

Female Housing, 2 Circuits

278000217

$9.59

47

Bilge Pump

204471431

Unavailable

48

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable
