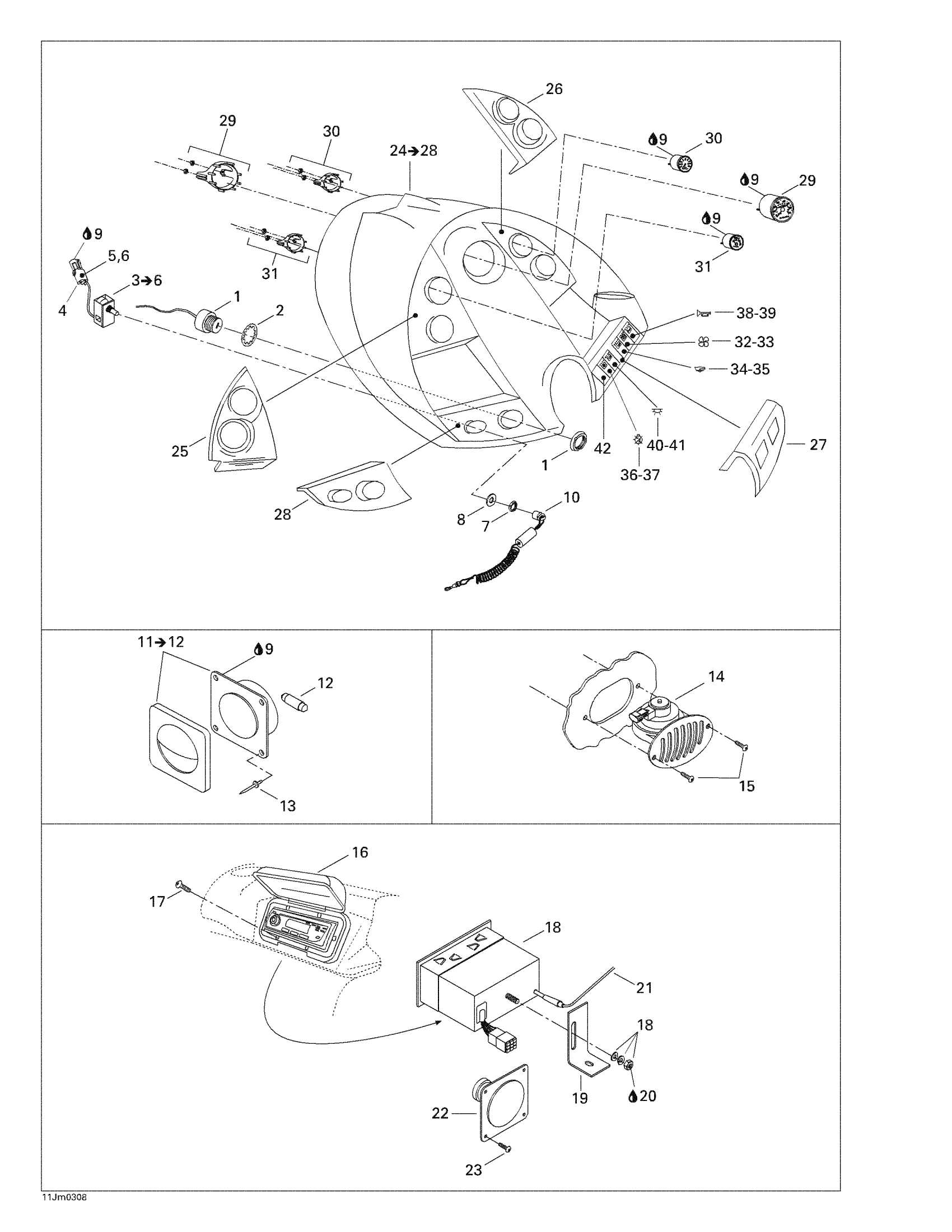

Sea-doo Utopia 185, 2003 10- Electrical Accessories 1 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Internal Tooth Lock Washer 1"

204100085

Unavailable

3

Safety Switch | Includes 17 - 20.

204470463

Unavailable

4

Male Connector, 2 Circuits

278000220

$15.49

5

Wire Seal

278000218

$4.39

6

Female Terminal

278000223

$3.19

7

Safety Switch Nut

278000099

Unavailable

8

FLAT WASHER - Call your local BRP dealership

204100027

Unavailable

9

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

10

Safety Lanyard

278001431

$47.49

11

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

12

BULB - Call your local BRP dealership

204470081

Unavailable

13

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

14

HORN - Call your local BRP dealership

204470801

Unavailable

15

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

16

Radio Cover

204470535

Unavailable

17

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

18

Compact Disc Radio

204470682

Unavailable

19

Radio Support

204470683

Unavailable

20

Loctite 243, 10 ml

293800060

$21.49

21

Antenna

204470380

Unavailable

22

Speaker

204470378

Unavailable

23

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

24

Upper Dashbord Ass’y | Includes 24 - 28.

204470827

Unavailable

25

LH Gauge Panel

204470721

Unavailable

26

RH Gauge Panel

204470722

Unavailable

27

RH Interruptor Panel

204470723

Unavailable

28

LH Interruptor Panel

204470724

Unavailable

29

Speedometer Gauge

204470803

Unavailable

30

Tachometer

204470802

Unavailable

31

Oil/Fuel Gauge

204470804

Unavailable

32

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

33

Gasket

204470132

Unavailable

34

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

35

Gasket

204470132

Unavailable

36

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

37

Gasket

204470132

Unavailable

38

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

39

Gasket

204470132

Unavailable

40

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

41

Gasket

204470132

Unavailable

42

SWITCH PLUG - Call your local BRP dealership

204470596

Unavailable
