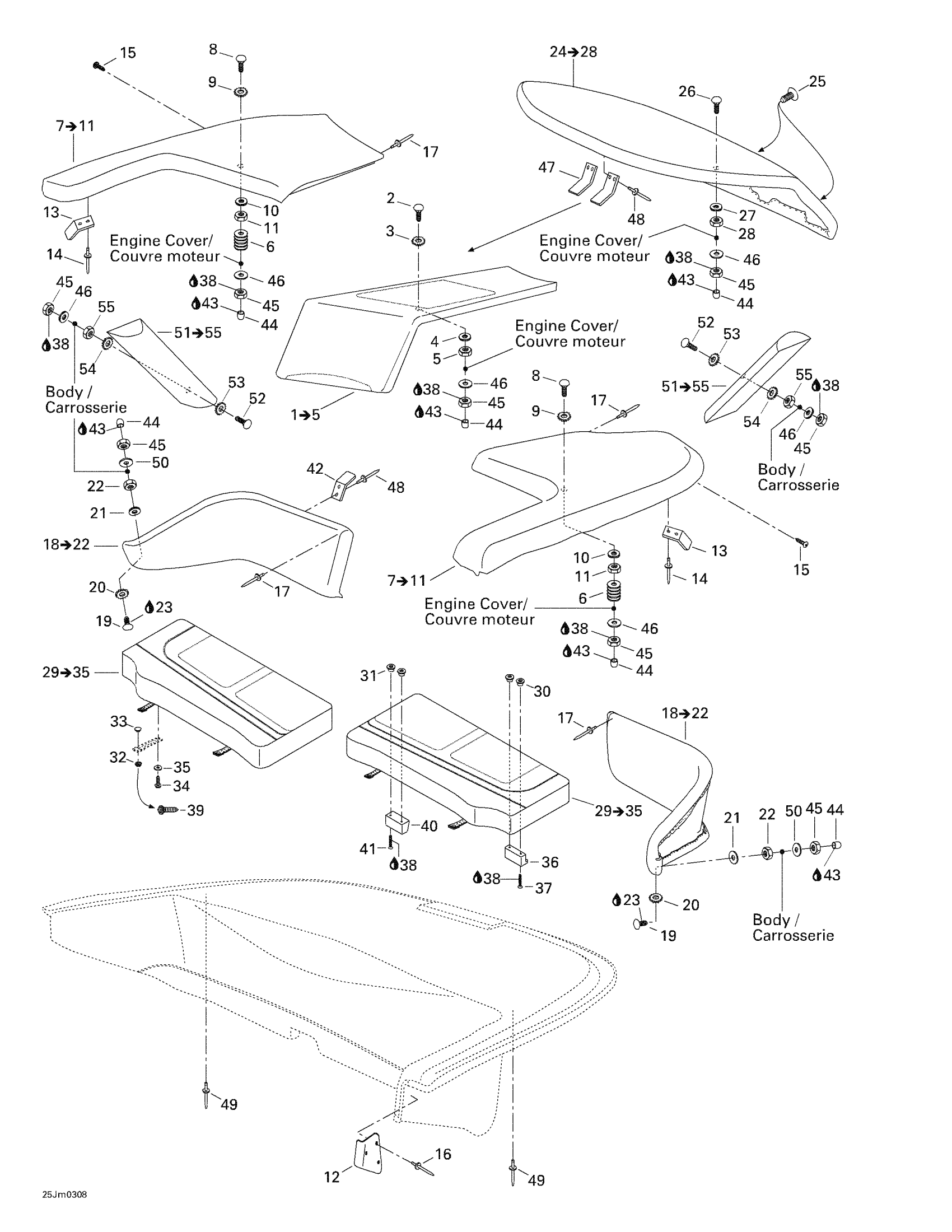

Sea-doo Utopia 185, 2003 Rear Seat Diagram

#

Description
Price

1

Sundeck Center Cushion | Includes 1 - 5.

204611746

Unavailable

2

Elevator Bolt

204000130

Unavailable

3

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

4

External Serrated Lock Washer 6 mm

234461608

$1.15

5

Hex. Jam Nut

204100060

Unavailable

6

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

7

Sundeck Cushion, Port Side | Includes 8 to 12

204611831

Unavailable

Sundeck Cushion, Starboard | Includes 8 to 12

204611833

Unavailable

8

Screw #8 X 1/2”

204100088

Unavailable

9

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

10

External Serrated Lock Washer 6 mm

234461608

$1.15

11

Hex. Jam Nut

204100060

Unavailable

12

Upholstery Cap, Port Side

204611599

Unavailable

Upholstery Cap, Starboard

204611600

Unavailable

13

Slotted Keyhold Clip

204130029

Unavailable

14

Pop RIvet 1/8 X ,375

293150285

$0.33

15

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

16

Avdel Rivet 3/16"

293150037

$0.56

17

Pop Rivet 3/16"

293150013

$1.37

18

Sundeck Backrest (Port Side) | Includes 18 - 22.

204611786

Unavailable

Sundeck Backrest (Starboard)

204611787

Unavailable

19

Elevator Bolt

204000130

Unavailable

20

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

21

External Serrated Lock Washer 6 mm

234461608

$1.15

22

Hex. Jam Nut

204100060

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

Sundeck Rear Cushion | Includes 26 to 30

204611836

Unavailable

25

Black, Dart

293730006

$0.99

26

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

27

External Serrated Lock Washer 6 mm

234461608

$1.15

28

Hex. Jam Nut

204100060

Unavailable

29

Rear Seat Cushion Ass'y, Port | Includes 31 to 35

204612771

Unavailable

Rear Seat Cushion Ass'y, Starboard | Includes 31 to 35

204612772

Unavailable

30

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

31

TEE-NUT #10-32 - Call your local BRP dealership

204100044

Unavailable

32

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

33

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

34

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

35

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

36

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

37

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

38

Loctite 243, 10 ml

293800060

$21.49

39

Threaded Stud 5/8”

204100046

Unavailable

40

LATCH - Call your local BRP dealership

204611805

Unavailable

41

Screw 10-32 X 1-1/4”

204100075

Unavailable

42

RETAINING CLIP - Call your local BRP dealership

204611531

Unavailable

43

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

44

Plastic Cap, White

204130008

Unavailable

45

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

46

FLAT WASHER 9/32? - Call your local BRP dealership

204100089

Unavailable

47

SUNDECK PLATE - Call your local BRP dealership

204611597

Unavailable

48

Pop Rivet 3/16"

293150008

$0.50

49

Pop Rivet 3/16"

293150008

$0.50

50

Flat Washer M6, Stainless

234062600

$0.77

51

Sound Pad, Starboard | Includes 51 to 55

204612621

Unavailable

Sound Pad, Port Side | Includes 51 to 55

204612627

Unavailable

52

Elevator Bolt

204000130

Unavailable

53

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

54

External Serrated Lock Washer 6 mm

234461608

$1.15

55

Hex. Jam Nut

204100060

Unavailable
