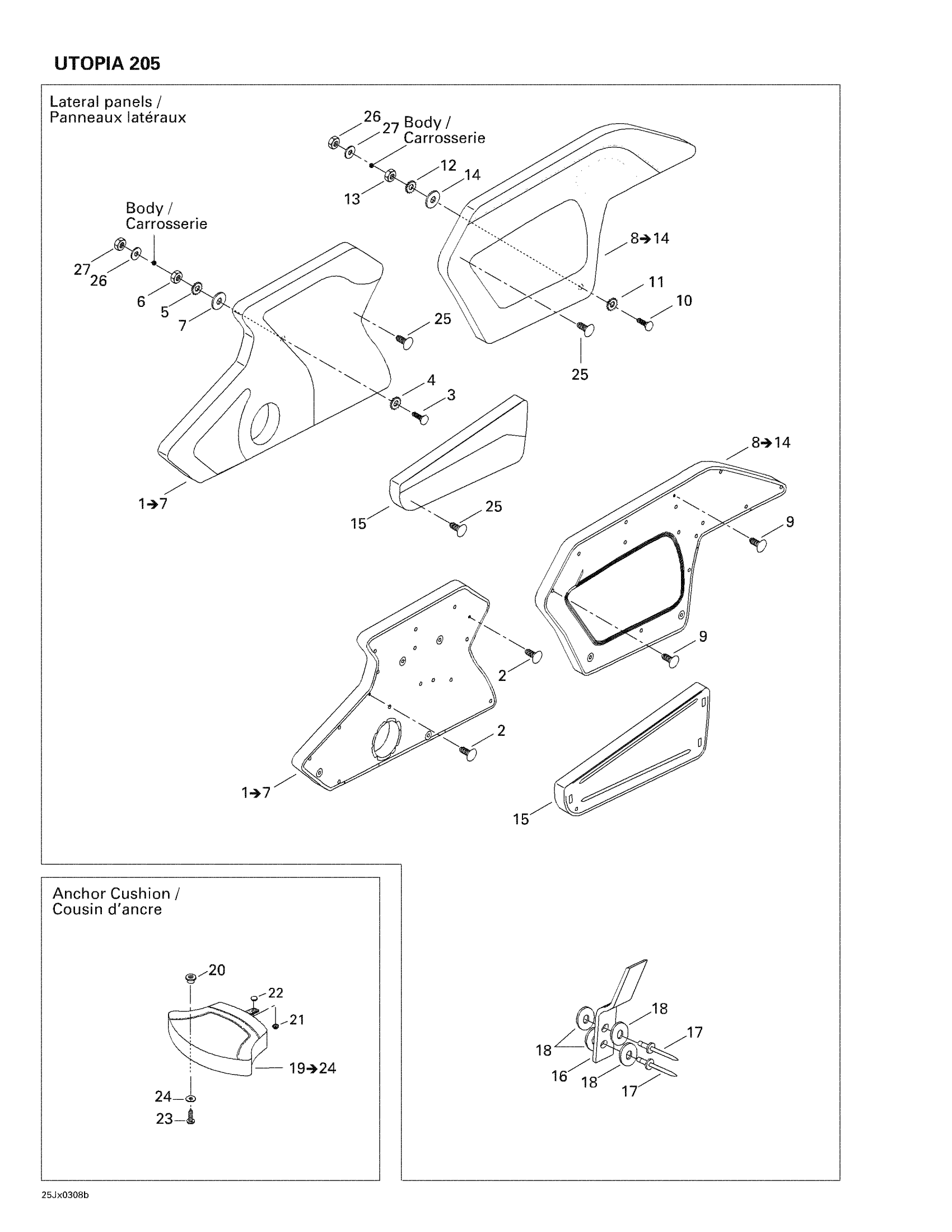

Sea-doo Utopia 185, 2003 Lateral Panel & Anchor Cushion (Utopia 205) Diagram

#

Description
Price

1

Front Lateral Panel, Port Side | Includes 1 to 7

204612572

Unavailable

Front Lateral Panel, Starboard | Includes 1 to 7

204612574

Unavailable

2

Black Dart

293730014

$0.99

3

Elevator Bolt

204000130

Unavailable

4

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

5

External Serrated Lock Washer 6 mm

234461608

$1.15

6

Hex. Jam Nut

204100060

Unavailable

7

Flat Washer M6, Stainless

234062600

$0.77

8

Rear Lateral Panel, Port Side | Includes 8 to 14

204612573

Unavailable

Rear Lateral Panel, Starboard | Includes 8 to 14

204612575

Unavailable

9

Black Dart

293730014

$0.99

10

Elevator Bolt

204000130

Unavailable

11

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

12

External Serrated Lock Washer 6 mm

234461608

$1.15

13

Hex. Jam Nut

204100060

Unavailable

14

Flat Washer M6, Stainless

234062600

$0.77

15

Inferior Panel, Port Side

204612596

Unavailable

Inferior Panel, Starboard

204612600

Unavailable

16

S-clip

204130048

Unavailable

17

RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.

293150201

Unavailable

18

Flat Washer M5, Stainless

234051600

$0.77

19

Anchor Cushion Ass’y | Includes 19 - 24. UTOPIA 205.

204612547

Unavailable

20

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

21

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

22

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

23

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

24

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

25

Black Dart

293730014

$0.99

26

Plastite Hex. Screw M6.8 X 35

243163560

$4.44

27

FLAT WASHER 9/32? - Call your local BRP dealership

204100089

Unavailable
