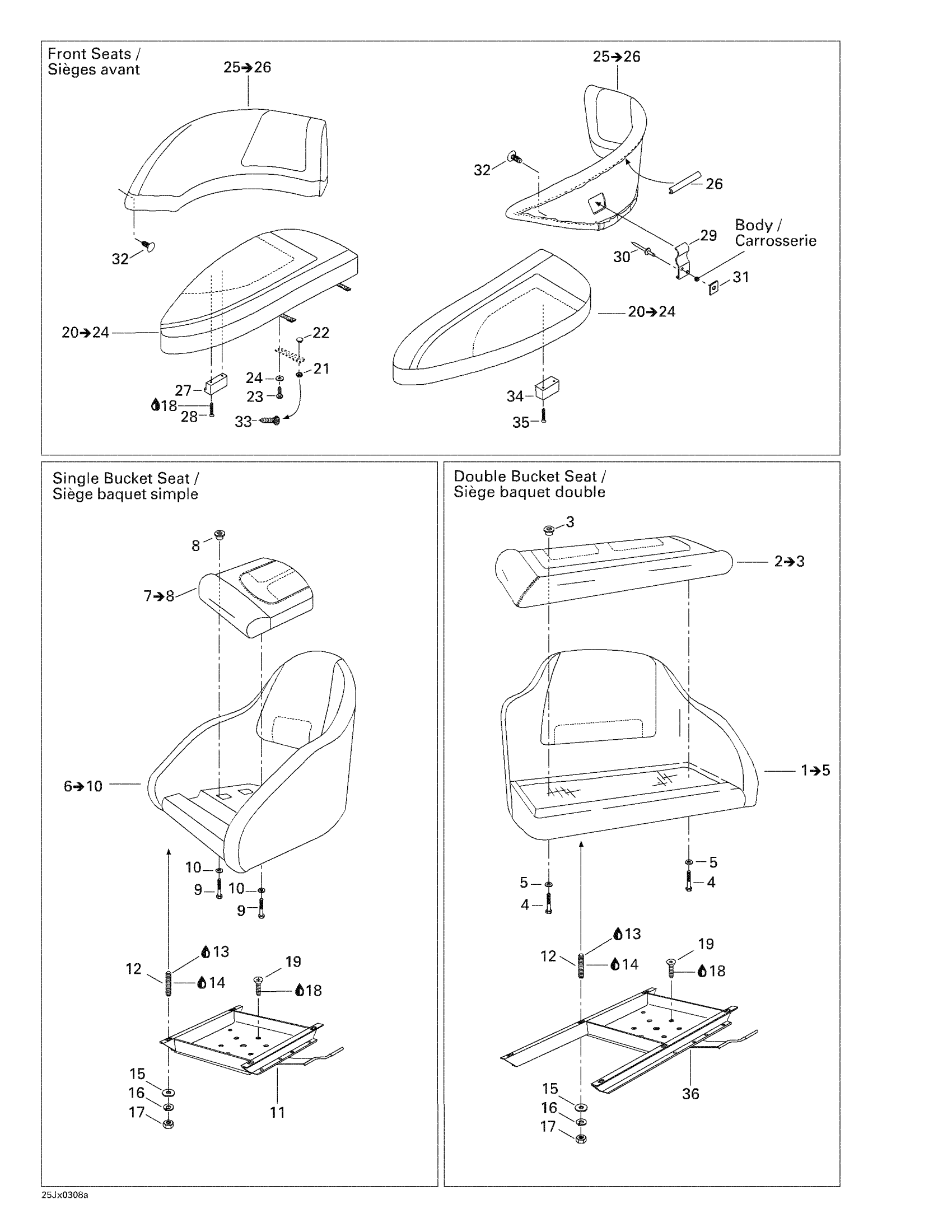

Sea-doo Utopia 185, 2003 Front Driver Passenger Seat Diagram

#

Description
Price

1

Double Bucket Seat Ass’y, Port Side | Includes 1 to 5

204611837

Unavailable

2

Double Bucket Seat Cushion, Port Side | Includes 2 to 3

204612014

Unavailable

3

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

4

Pan Head Phillips Screw 1/4-20

204100125

Unavailable

5

Flat Washer 8 mm, Stainless

234082600

$2.43

6

Single Bucket Seat Ass’y | Includes 7 to 11

204611832

Unavailable

7

Single Bucket Seat Cushion | Includes 8 to 9

204612096

Unavailable

8

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

9

Pan Head Phillips Screw 1/4-20

204100125

Unavailable

10

Flat Washer 8 mm, Stainless

234082600

$2.43

11

Single Seat Swivel Base

204611789

Unavailable

12

THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership

204100077

Unavailable

13

Loctite 271, 10 ml

293800005

$26.99

14

Was 293800041 Loctite Primer 7649

219704458

$39.99

15

Flat Washer M6, Stainless

234062600

$0.77

16

Lock Washer Helical M6

234161601

$1.15

17

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

18

Loctite 243, 10 ml

293800060

$21.49

19

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

208463560

Unavailable

20

Front Seat Cushion Ass’y, Port Side | Includes 21 to 25

204612548

Unavailable

Front Seat Cushion Ass’y, Starboard | Includes 21 to 25

204612549

Unavailable

21

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

22

SNAP COVER - Call your local BRP dealership | SE

204611609

Unavailable

23

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

24

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

25

Front Seat Backrest Ass’y, Port Side | Includes 26 to 27

204611843

Unavailable

Front Seat Backrest Ass’y, Starboard | Includes 26 to 27

204611844

Unavailable

26

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

27

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

28

Phillips Screw 2”

204100116

Unavailable

29

SEAT SUPPORT - Call your local BRP dealership

204613998

Unavailable

30

Pop Rivet 3/16"

293150043

$2.09

31

Stainless Flat Washer M6

234061600

$0.33

32

Black Dart

293730014

$0.99

33

Threaded Stud 5/8”

204100046

Unavailable

34

LATCH - Call your local BRP dealership

204611805

Unavailable

35

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

36

Bucket Seat Swivel Base, Port Side

204611749

Unavailable
