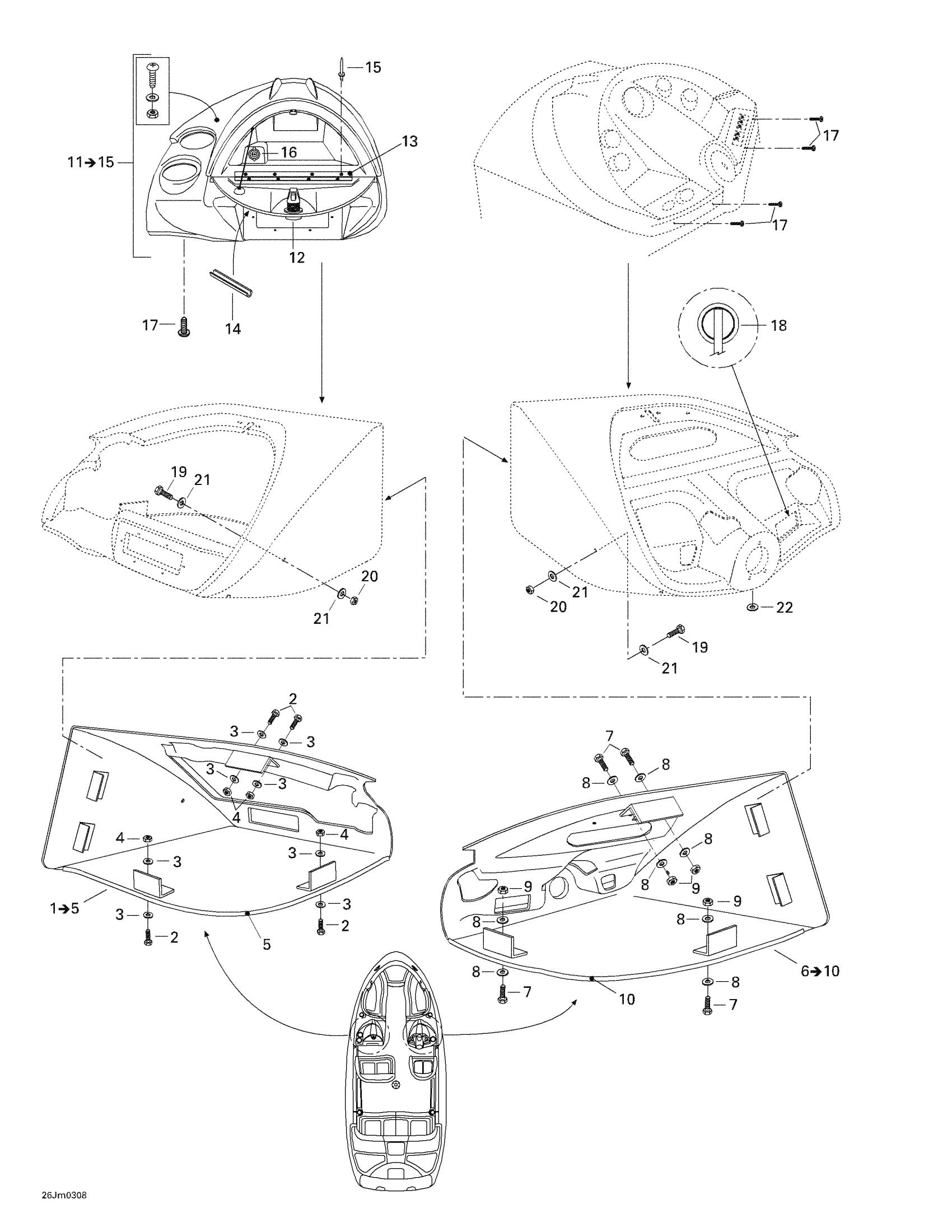

Sea-doo Utopia 185, 2003 09- Front Console Glove Box Diagram

#

Description
Price

1

Console Ass’y, Port Side | Includes 1 - 5.

204071879

Unavailable

2

Hex. Screw M6 X 30

207163060

$1.48

3

FLAT WASHER 6 MM - Call your local BRP dealership

234060600

Unavailable

4

Hex. Elastic Stop Nut M6

232561600

$1.15

5

TRIM, WHITE - Call your local BRP dealership

204071878

Unavailable

6

Console Ass’y, Starboard | Includes 6 - 10.

204071880

Unavailable

7

Hex. Screw M6 X 30

207163060

$1.48

8

FLAT WASHER 6 MM - Call your local BRP dealership

234060600

Unavailable

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

TRIM, WHITE - Call your local BRP dealership

204071878

Unavailable

11

GLOVE BOX ASS'Y - Call your local BRP dealership | Includes 21 to 29

204073355

Unavailable

12

DOOR LATCH - Call your local BRP dealership

204071524

Unavailable

13

Hinge

204071525

Unavailable

14

Door Edge

204071526

Unavailable

15

Pop Rivet

204130021

Unavailable

16

DC Outlet

710001248

$37.99

17

PHILLIPS FORMING SCREW M8 X 3/4? - Call your local BRP dealership

204100126

Unavailable

18

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

19

Hex. Screw M6 X 30

207163060

$1.48

20

Hex. Elastic Stop Nut M6

232561600

$1.15

21

Flat Washer M6, Stainless

234062600

$0.77

22

Stainless Flat Washer M6

234061600

$0.33
