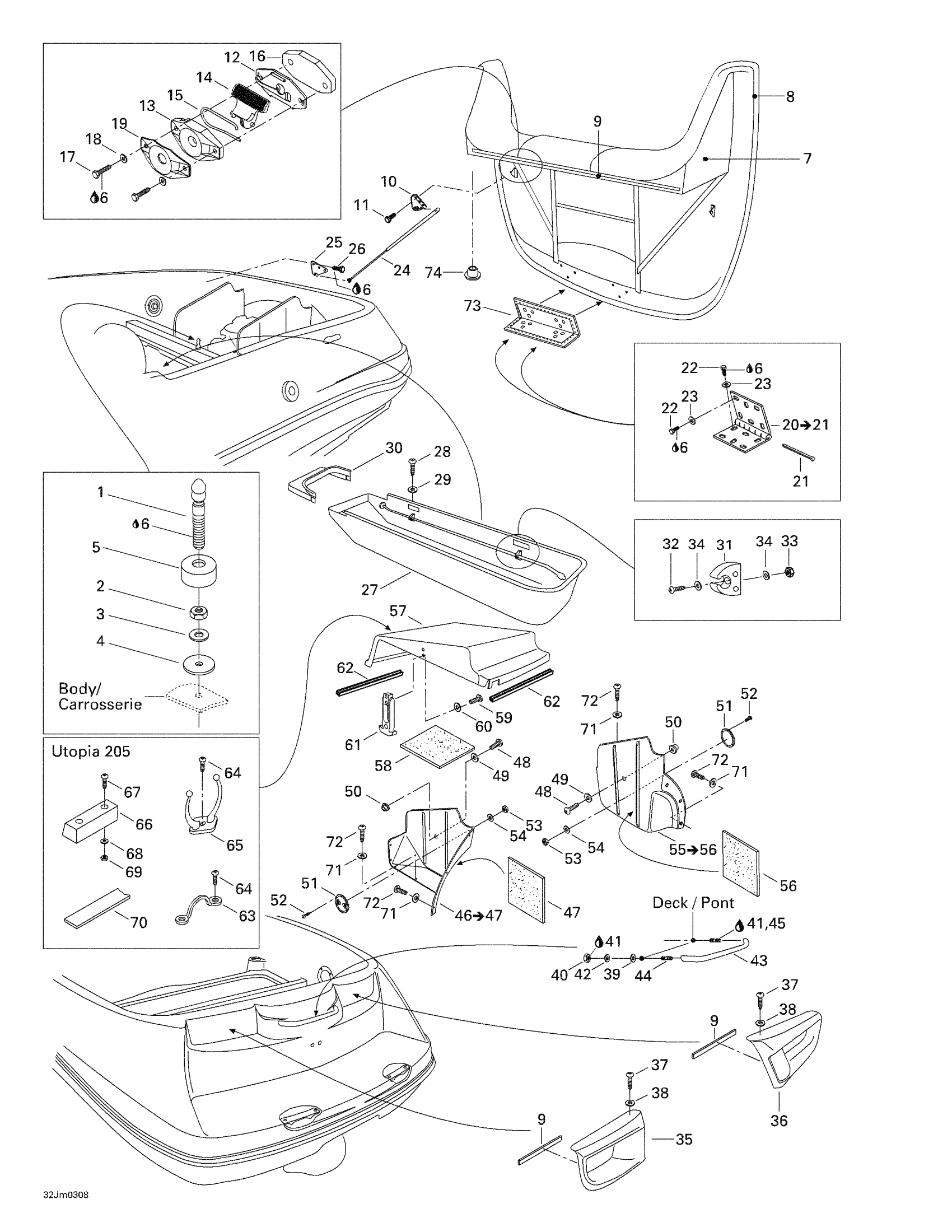

Sea-doo Utopia 185, 2003 Engine Compartment Diagram

#

Description
Price

1

DOUBLE LATCH STUD - Call your local BRP dealership

204130052

Unavailable

2

Hex. Jam Nut M10

232100600

$2.22

3

Flat Washer 10 mm, Stainless

234002600

$2.22

4

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

5

Rubber Pad

293830025

Unavailable

6

Loctite 243, 10 ml

293800060

$21.49

7

Engine Cover

204071478

Unavailable

8

Seal Tray 1000Mm Long

219704368

$13.99

9

Was 293200017 Neoprene Seal

219704365

$149.99

10

Shock Bracket

204073074

$27.99

11

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

12

Latch Ass'y

269700109

$24.99

13

Latch Ass'y

269700109

$24.99

14

Latch Ass'y

269700109

$24.99

15

Latch Spring

269700017

$9.19

16

SHIM - Call your local BRP dealership

269700015

Unavailable

17

Hex. Screw M6 X 50

207065060

$2.22

18

Stainless Flat Washer M6

234061600

$0.33

19

LATCH PROTECTOR - Call your local BRP dealership

204070952

Unavailable

20

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

21

Cotter Pin M2.5 X 12

204070205

Unavailable

22

Hex. Screw M6 X 25

207162560

$1.47

23

Stainless Flat Washer M6

234061600

$0.33

24

Air Shock, 90 Lb

204071087

Unavailable

25

Shock Support

291000615

Unavailable

26

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152560

Unavailable

27

Rear Seat Storage

204071177

Unavailable

28

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

29

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

30

Cap End

204071329

Unavailable

31

Pole Support

291000642

Unavailable

32

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

33

Elastic Stop Nut M4

232541600

$1.15

34

Flat Washer 4 mm

234040600

$0.55

35

Vent Cover Ass’y, Port Side

204071500

Unavailable

36

Vent Cover Ass’y, Starboard

204071502

Unavailable

37

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

38

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

39

Flat Washer 10 mm, Stainless

234002600

$2.22

40

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

41

Loctite 271, 10 ml

293800005

$26.99

42

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

43

GRAB HANDLE - Call your local BRP dealership

204071122

Unavailable

44

Threaded Stud

204100031

Unavailable

45

Was 293800041 Loctite Primer 7649

219704458

$39.99

46

Bulkhead Panel, Port Side | Includes 46 - 47.

204071825

Unavailable

47

Sound Barrier, Port Side

204071400

Unavailable

48

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

49

Flat Washer 5 mm, Stainless

234052600

$0.77

50

Strap Retainer

204071384

Unavailable

51

BOTTOM PLATE - Call your local BRP dealership

204070622

Unavailable

52

PHILLIPS SCREW M4 X 20 - Call your local BRP dealership

208442060

Unavailable

53

Elastic Stop Nut M4

232541600

$1.15

54

Flat Washer 4 mm, Stainless

234042600

$1.15

55

Bulkhead Panel, Starboard

204071828

Unavailable

56

Sound Barrier, Port Side

204071400

Unavailable

57

Bulkhead Cap

204071731

Unavailable

Bulkhead Cap

204071732

Unavailable

58

Sound Barrier, Port Side

204071400

Unavailable

59

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

60

Flat Washer 5 mm, Stainless

234052600

$0.77

61

Rubber Latch

204071330

Unavailable

62

Seal Tray 1000Mm Long

219704368

$13.99

63

Strap Tie

204070234

Unavailable

64

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

65

POLE CLIP - Call your local BRP dealership | Challenger S

204070342

Unavailable

66

LATCH - Call your local BRP dealership

204611805

Unavailable

67

Phillips Screw M5 X 35

208653560

$2.22

68

Flat Washer 5 mm

234051500

$0.73

69

Hex. Elastic Nut M5 | X

232551600

$1.15

70

Seal Tray 1000Mm Long

219704368

$13.99

71

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

72

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

73

Hinge Cover

204612605

Unavailable

74

Black Plug

291000279

$7.69
