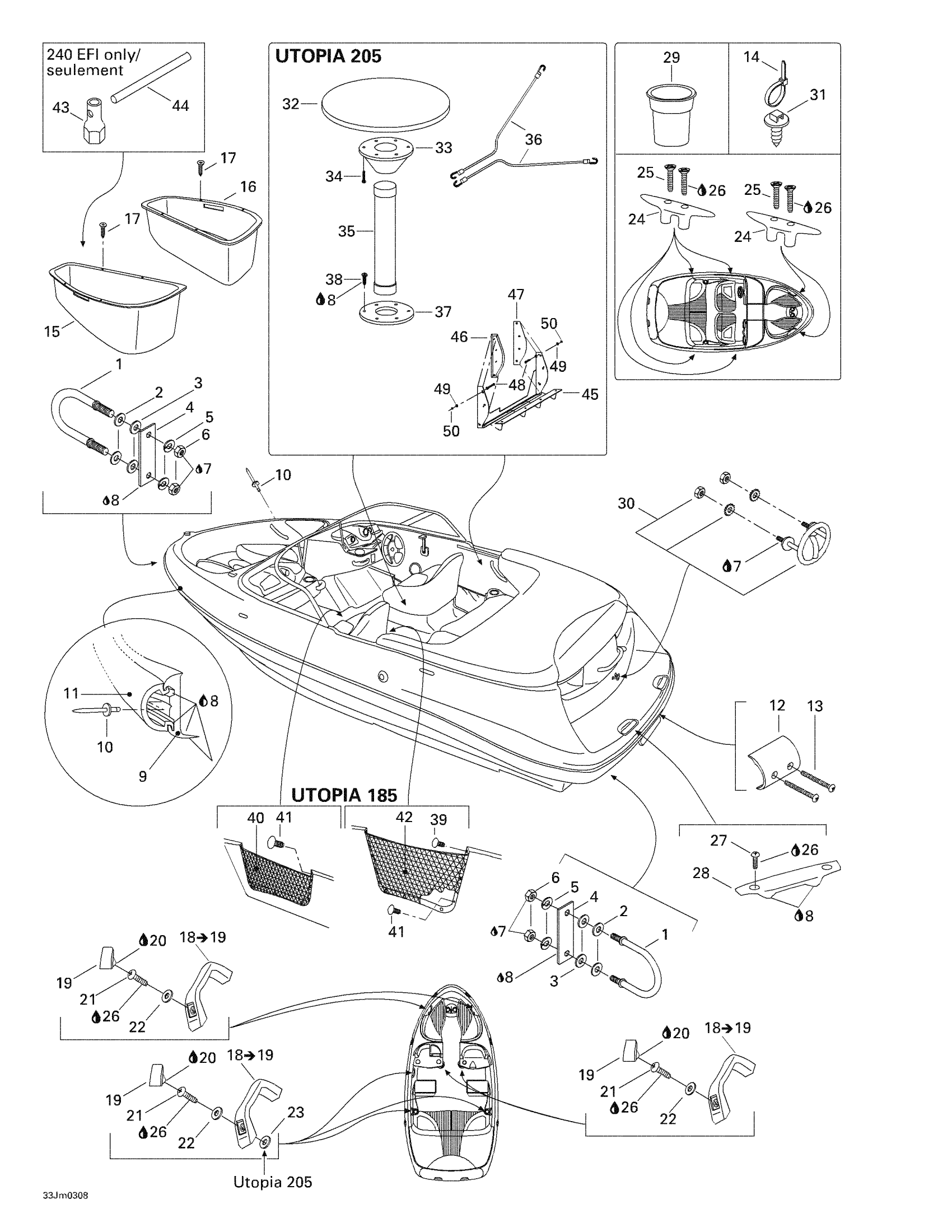

Sea-doo Utopia 185, 2003 09- Body And Accessories 1 Diagram

#

Description
Price

1

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

2

Flat Washer M8.5 x 18

293050001

$3.07

3

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

4

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

5

Lock Washer 8 mm, Stainless

234181601

$0.55

6

Hex. Nut M8

232081600

$1.47

7

Loctite 271, 10 ml

293800005

$26.99

8

Silicone Sealant 51388, 300 ml

296000309

$36.99

9

Black, Bumper

204050136

Unavailable

Bumper, Black

204050467

Unavailable

10

Pop Rivet 3/16"

293150013

$1.37

11

Black, Trim - Call your local BRP dealership

204050137

Unavailable

Bumper Trim, Black

204050463

Unavailable

12

BUMPER COVER, BLACK - Call your local BRP dealership

204050031

Unavailable

13

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

14

Tie-Rap 180 mm

414115200

$0.11

15

Storage Tray, Port Side

204071773

Unavailable

16

Storage Tray, Starboard

204071774

Unavailable

17

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

18

GRIP HANDLE, WHITE - Call your local BRP dealership | Includes 20a to 20b

204071182

Unavailable

19

Snap Cap

204071195

Unavailable

20

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

21

SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership

205963060

Unavailable

22

Stainless Flat Washer M6

234061600

$0.33

23

Flat Washer M6, Stainless

234062600

$0.77

24

CLEAT - Call your local BRP dealership | STD

204070592

Unavailable

25

Socket Head Screw M6 X 70

205367060

Unavailable

26

Loctite 243, 10 ml

293800060

$21.49

27

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

28

GRIP HANDLE, BLACK - Call your local BRP dealership

204070194

Unavailable

29

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

30

Ski Tow Hook

204070206

Unavailable

31

Mount Dart

293730040

$1.04

32

Cockpit Table

204070632

Unavailable

33

TABLE MOUNT - Call your local BRP dealership | Challenger S

204071315

Unavailable

34

TAPPING SCREW M5 X 19 - Call your local BRP dealership | Challenger S

209951960

Unavailable

35

TABLE POST, LARGE - Call your local BRP dealership | Challenger S

204070634

Unavailable

36

ICE CHEST STRAP - Call your local BRP dealership

204070905

Unavailable

37

TABLE BASE - Call your local BRP dealership

204071209

Unavailable

38

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

39

Black, Dart

414644300

$0.98

40

Front Storage Net, Port Side

204611529

Unavailable

Front Storage Net, Starboard

204611326

Unavailable

41

Black, Dart

293730006

$0.99

42

Rear Storage Net, Starboard

204611327

Unavailable

Rear Storage Net, Port Side

204611530

Unavailable

43

Socket Wrench

204630050

Unavailable

44

Steel Bar

204630051

Unavailable

45

Storage Carpet | UTOPIA 205.

204071537

Unavailable

46

Side Storage Carpet “A” | UTOPIA 205.

204071538

Unavailable

47

Side Storage Carpet “B” | UTOPIA 205.

204071539

Unavailable

48

Hex. Screw M6 X 70

207067060

$5.61

49

Flat Washer M6, Stainless

234062600

$0.77

50

Hex. Elastic Stop Nut M6

232561600

$1.15
