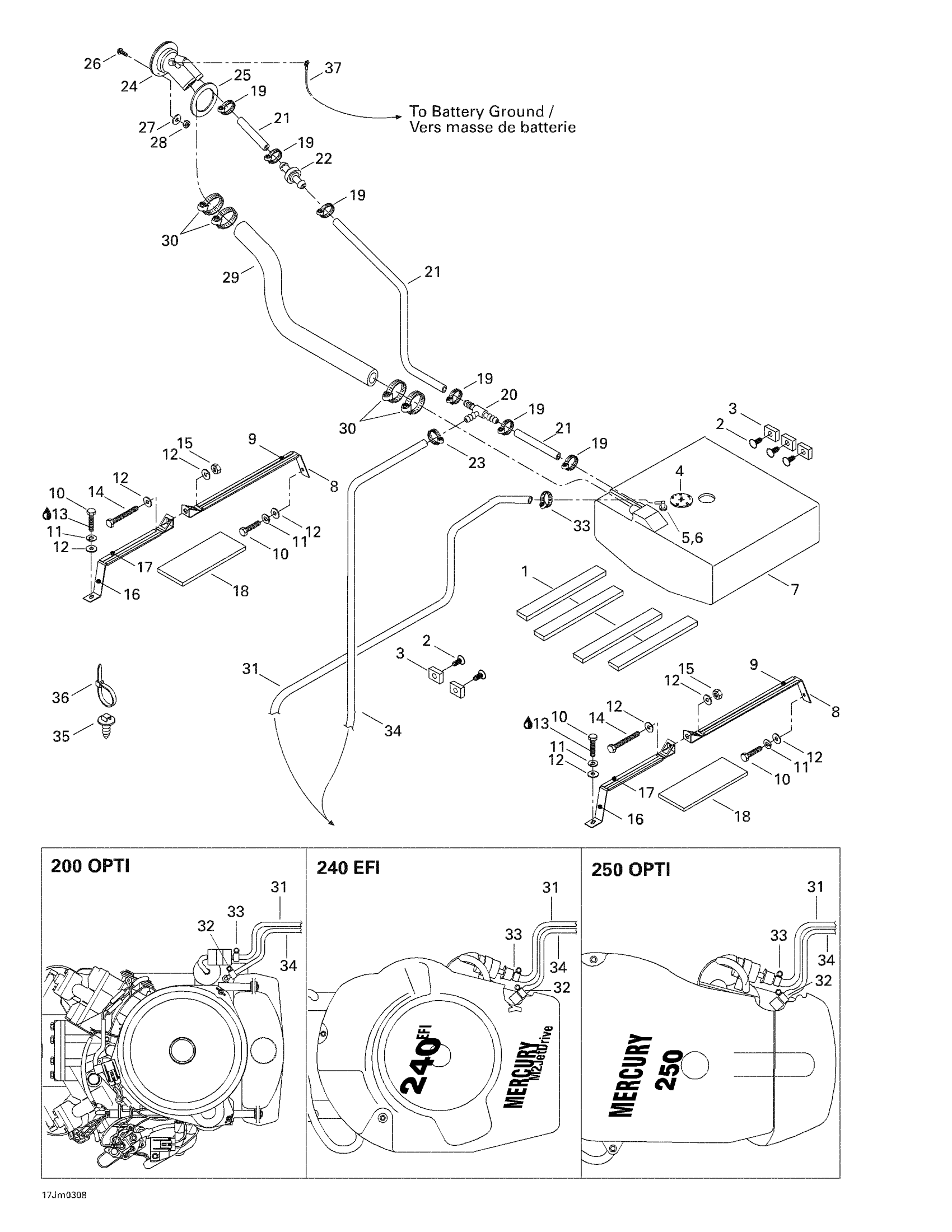

Sea-doo Utopia 185, 2003 02- Fuel System Diagram

#

Description
Price

1

PROTECTOR PAD - Call your local BRP dealership

204560115

Unavailable

2

Black, Dart

293730006

$0.99

3

RUBBER PAD - Call your local BRP dealership

204060684

Unavailable

4

Fuel Level Sensor

204560217

Unavailable

5

Rigid Pick-Up Tub

204560218

Unavailable

6

Anti-Siphon Valve

204560219

Unavailable

7

Fuel Tank

204560220

Unavailable

8

FUEL TANK STRAP - Call your local BRP dealership

204560181

Unavailable

9

PROTECTOR PAD - Call your local BRP dealership

204560185

Unavailable

10

Hex. Screw M8 X 30

207183060

$1.58

11

Lock Washer 8 mm, Stainless

234181601

$0.55

12

Flat Washer 8 mm, Stainless

234082600

$2.43

13

Loctite 271, 10 ml

293800005

$26.99

14

HEX. SCREW M8 X 80 - Call your local BRP dealership

207188060

Unavailable

15

Hex. Elastic Nut M8

232581600

$1.48

16

Fuel Tank Strap

204560184

Unavailable

17

Protector Pad

204560186

Unavailable

18

NEOPRENE PAD - Call your local BRP dealership

204560191

Unavailable

19

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

20

T-Fitting

204560038

Unavailable

21

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

22

VENT FUEL SURGE PROTECTOR - Call your local BRP dealership

204560101

Unavailable

23

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

24

FILLER NECK - Call your local BRP dealership

204560182

Unavailable

25

SPACER - Call your local BRP dealership This part replaces 275500801.

204560188

Unavailable

26

Phillips Screw M4 X 35

208643560

Unavailable

27

Flat Washer 4 mm

234040600

$0.55

28

Elastic Stop Nut M4

232541600

$1.15

29

Filler Neck Hose

204560134

Unavailable

30

Norma Clamp

293650077

$7.41

31

Hose 5/16”, Meter

204560177

Unavailable

32

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

33

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

34

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

35

Mount Dart

293730040

$1.04

36

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

37

Ground Cable | UTOPIA 185.

204470646

Unavailable

Ground Cable

204470730

Unavailable
