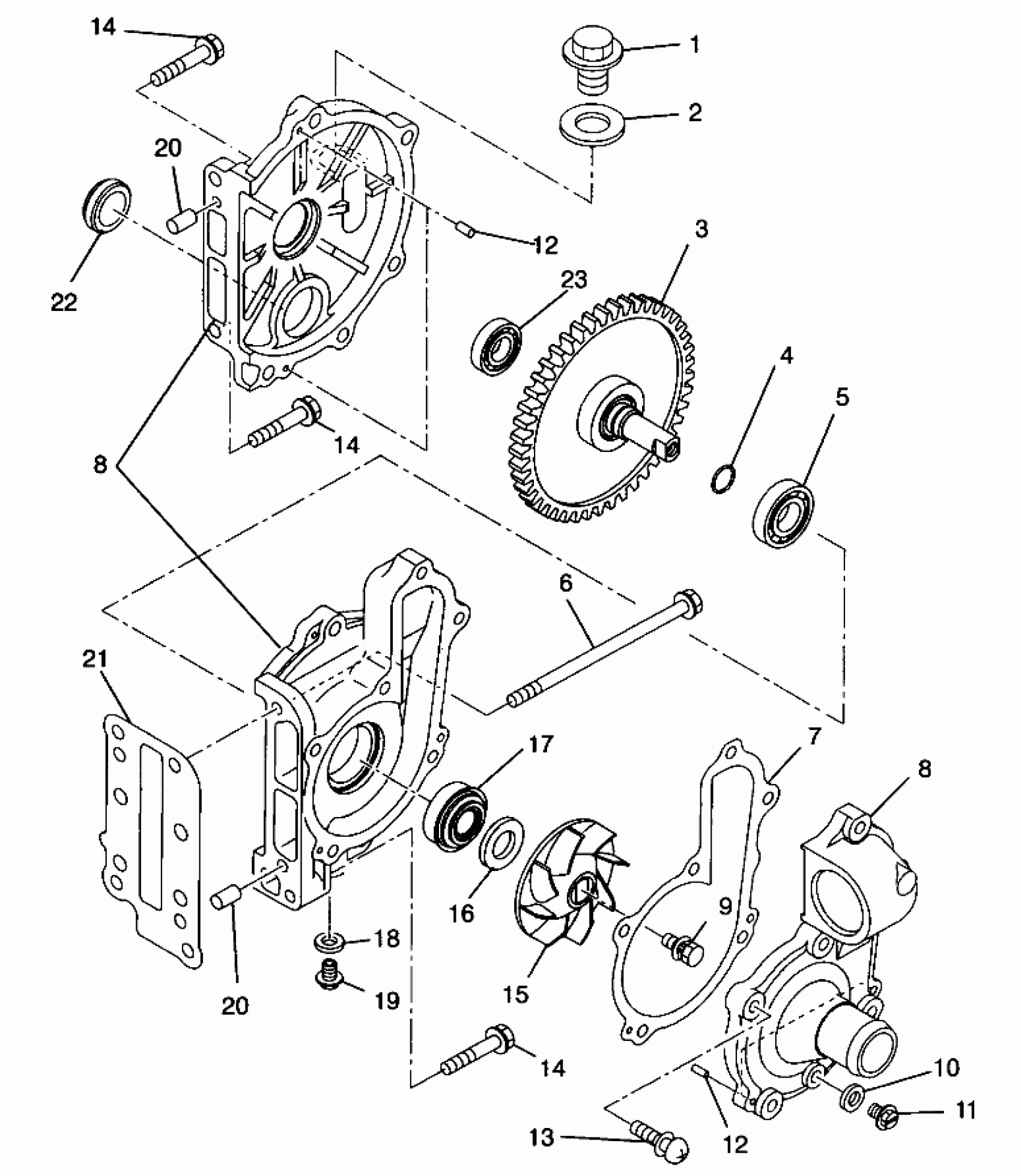

Polaris ULTRA SP - 0960678 WATER PUMP ULTRA SP 0960678 and EUROPEAN ULTRA SP E960678 (4937083708C011) Diagram

#

Description
Price

1

PLUG Substituted by 3086749

3083453

Unavailable

2

GASKET

3082956

$4.84

3

SHAFT,WATER PUMP *

3085269

Unavailable

4

O-RING,(WATER PUMP SHAFT)

3085149

Unavailable

5

BALLBEARING

3085145

Unavailable

6

Bolt, Flange

3085272

$6.23

7

GASKET,(PUMP CASING 1)

3085151

Unavailable

8

Water Pump Complete

-------

Unavailable

8

Pump Casing 1 Complete

-------

Unavailable

8

PUMP ASM, WATER (Incl. 1-5, 7-13, 15-20, 22, 23)

3085267

$629.99

8

Water Pump Complete

-------

Unavailable

8

Pump Casing 1 Complete

-------

Unavailable

8

PUMP ASM, WATER (Incl. 1-5, 7-13, 15-20, 22, 23)

3085267

$629.99

9

Bolt

3085270

Unavailable

10

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

11

PLUG, AIR VENT Substituted by 7517266

3083350

Unavailable

12

PIN, DOWEL

3084721

$4.79

12

PIN, DOWEL

3084721

$4.79

13

SCREW&WASHER ASM.(10)

3084221

$2.39

14

Bolt, Flange

3085295

$2.63

14

Bolt, Flange

3085295

$2.63

14

Bolt, Flange

3085295

$2.63

15

IMPELLER UNIT

3085174

Unavailable

16

PLATE,SEALING

3085175

Unavailable

17

Seal, Mechanical

3085384

$60.70

18

GASKET,ALUMINUM(10)

3083482

$3.22

19

PLUG

3085152

Unavailable

20

PIN, DOWEL Substituted by 3086838

3080103

$7.14

20

PIN, DOWEL Substituted by 3086838

3080103

$7.14

21

GASKET, WATER PUMP

3085271

Unavailable

22

GAUGE, OIL

3085146

Unavailable

23

BEARING, BALL

3085286

Unavailable
