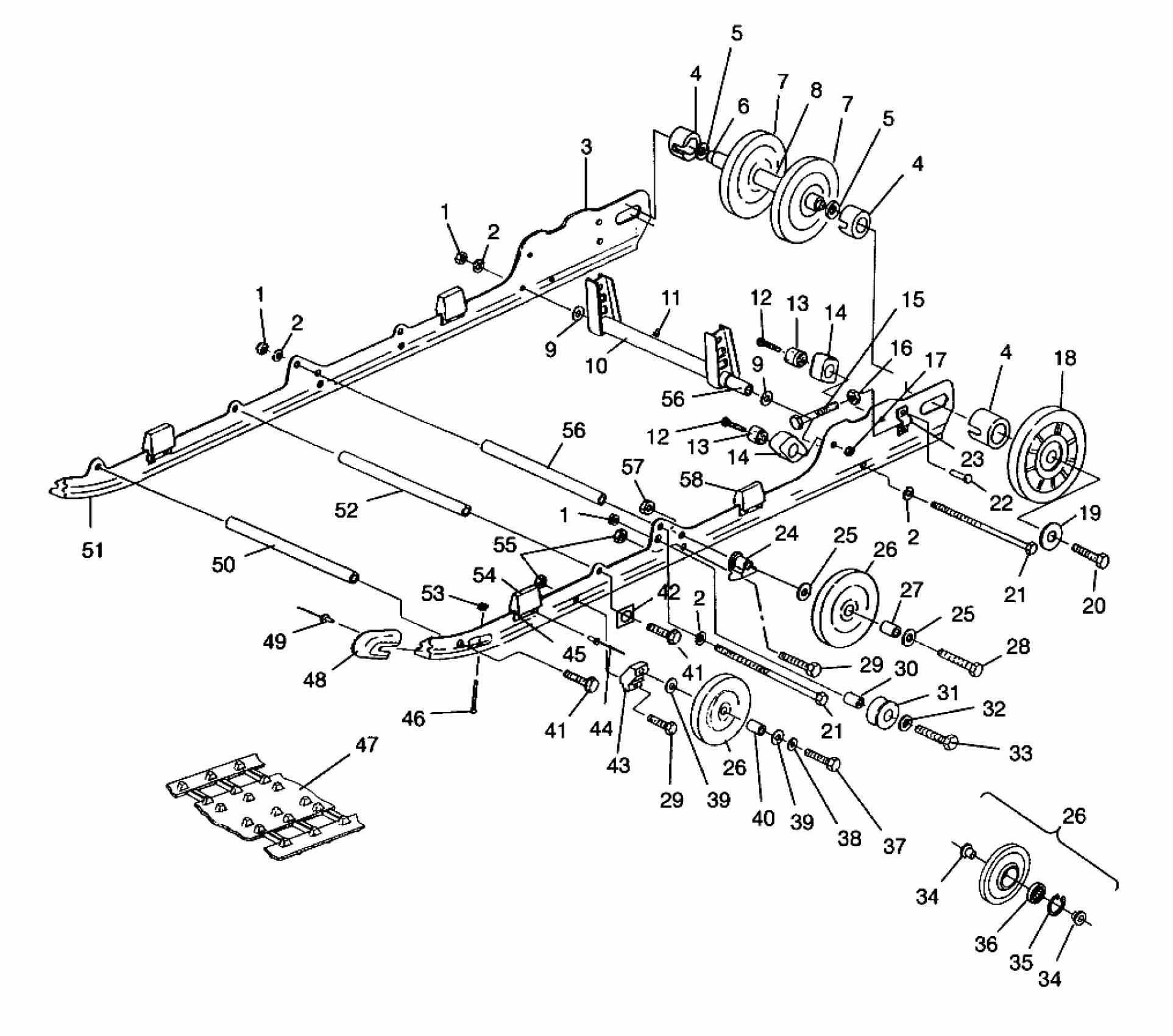

Polaris ULTRA SP - 0960678 SUSPENSION ULTRA SP 0960678 and EUROPEAN ULTRA SP E960678 (4937083708B010) Diagram

#

Description
Price

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

3

RAIL ASM,LH,(XTRA-10) Substituted by 1541146

1541016

$288.99

3

RAIL ASM,RH,(XTRA-10) Substituted by 1541147

1541017

Unavailable

4

SPACER-IDLER-OUTER

5332641

Unavailable

4

SPACER-IDLER-OUTER

5332641

Unavailable

4

SPACER-IDLER-OUTER

5332641

Unavailable

5

SPACER INNER IDLER

5010169

Unavailable

5

SPACER INNER IDLER

5010169

Unavailable

6

SHAFT,IDLER

5020722

Unavailable

7

WHEEL, IDLER Substituted by 1594079-070 (P-067)

1594021

Unavailable

7

WHEEL, IDLER Substituted by 1594079-070 (P-067)

1594021

Unavailable

8

SPACER CTR IDLER

5010168

Unavailable

9

WASHER(10)

7555893

$1.49

9

WASHER(10)

7555893

$1.49

10

ARM,R.PIVOT

1540982-067

$38.05

11

ZERK,FITTING,THREADED(10)

7080433

$1.49

12

BOLT(10)

7515537

$10.99

12

BOLT(10)

7515537

$10.99

13

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

13

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

14

BUMPER,F.PIVOT ARM

5410925

$12.94

14

BUMPER,F.PIVOT ARM

5410925

$12.94

15

BOLT, ADJUSTER(10)

7515455

$29.99

16

NUT(10)

7542440

Unavailable

17

NUT LOCK(10)

7542403

$3.99

18

WHEEL,IDLER,LAV. (P-171)

1594049

Unavailable

19

WASHER(10) Substituted by 7556130

7571629

Unavailable

20

BOLT(10)

7515526

$1.19

21

SCREW Substituted by 7517353

7515549

Unavailable

21

SCREW Substituted by 7517353

7515549

Unavailable

22

RIVET,(50)

7621501

$2.39

23

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

24

SPACER

5630399

$11.99

25

WASHER, FLAT(10)

7555852

$2.39

25

WASHER, FLAT(10)

7555852

$2.39

26

WHEEL, IDLER (Incl. 34-36)

1543018

$56.65

26

WHEEL, IDLER (Incl. 34-36)

1543018

$56.65

26

WHEEL, IDLER (Incl. 34-36)

1543018

$56.65

27

SPACER, WHEEL

5333116

$7.99

28

BOLT(10)

7512538

$6.39

29

BOLT(10)

7512404

$3.99

29

BOLT(10)

7512404

$3.99

30

Spacer

5332787

Unavailable

31

ROLLER,SPRING

5432170

Unavailable

32

WASHER(10)

7555743

Unavailable

33

BOLT Substituted by 7515491

7515433

$1.59

34

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

34

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

35

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

36

BEARING (1 per Wheel)

3514303

$11.99

37

BOLT(10)

7512659

$7.99

38

LOCK WASHER(10)

7553201

$3.99

39

WASHER(10)

7555804

$3.99

39

WASHER(10)

7555804

$3.99

40

SPACER

5332786

$7.99

41

BOLT

7515542

Unavailable

41

BOLT

7515542

Unavailable

42

BRKT-SHAFT SUPPORT

5241443

Unavailable

43

BRACKET,BOGIE WHEEL

5130570

$48.56

44

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

45

REINF., BUMPER

5222629

$13.75

46

BOLT(10)

7515175

$3.99

47

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

47

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

47

TRACK,121"X.82 MOD(LIGHTNING)

5411057

$583.99

48

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

49

RIVET(50)

7621435

$1.49

50

SHAFT,PIVOT ARM

5020723

$29.99

51

SLIDER,BLACK(2)

5521320

Unavailable

52

SHAFT,PIVOT ARM

5020724

$29.99

53

NUT-LOCK(10)

7542122

$1.49

54

BUMPER,SUSPENSION

5811097

Unavailable

55

NUT-LOCK(10)

7542439

$1.49

56

SHAFT

5333404

$24.27

56

SHAFT

5333404

$24.27

57

NUT, NYLOCK(10)

7542525

$4.79

58

BUMPER, RAIL

5810554

$7.27
