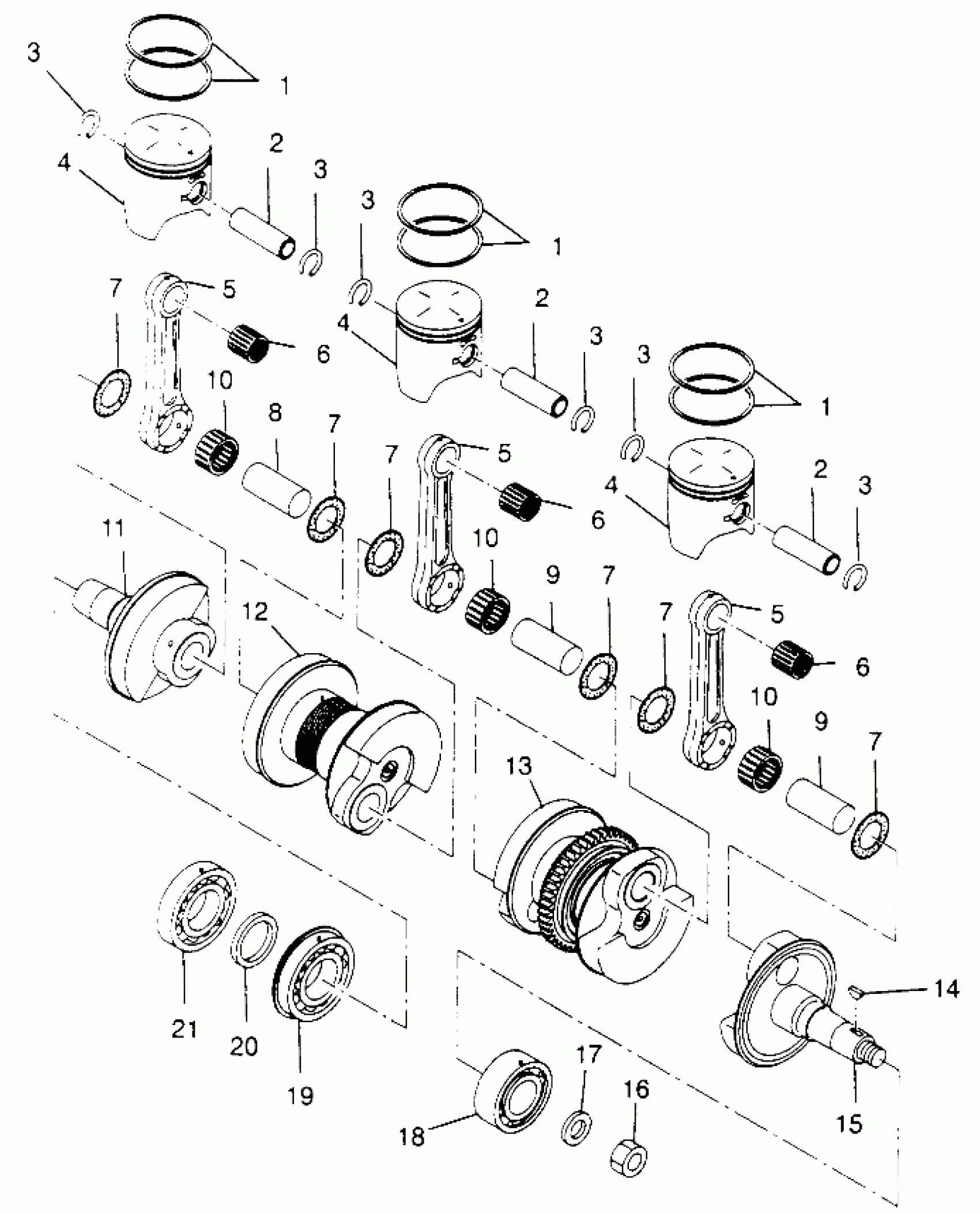

Polaris ULTRA SP - 0960678 PISTON and CRANKSHAFT ULTRA SP 0960678 and EUROPEAN ULTRA SP E960678 (4937083708C012) Diagram

#

Description
Price

1

RING, PISTON

3085132

Unavailable

1

RING, PISTON

3085132

Unavailable

1

RING, PISTON

3085132

Unavailable

2

Pin, Piston

3083849

$19.83

2

Pin, Piston

3083849

$19.83

2

Pin, Piston

3083849

$19.83

3

CLIP,(10)

3084167

$6.39

3

CLIP,(10)

3084167

$6.39

3

CLIP,(10)

3084167

$6.39

3

CLIP,(10)

3084167

$6.39

3

CLIP,(10)

3084167

$6.39

3

CLIP,(10)

3084167

$6.39

4

PISTON

3085262

$138.08

4

PISTON

3085262

$138.08

4

PISTON

3085262

$138.08

5

ROD,CONNECTING

3085256

Unavailable

5

ROD,CONNECTING

3085256

Unavailable

5

ROD,CONNECTING

3085256

Unavailable

6

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

6

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

6

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

7

Spacer

3083804

$19.99

7

Spacer

3083804

$19.99

7

Spacer

3083804

$19.99

7

Spacer

3083804

$19.99

7

Spacer

3083804

$19.99

7

Spacer

3083804

$19.99

8

PIN,CRANK #2 (58.5mm)

3085259

Unavailable

9

PIN,CRANK #1 (51mm)

3085258

Unavailable

9

PIN,CRANK #1 (51mm)

3085258

Unavailable

10

BEARING,LARGE END

3085257

$35.99

10

BEARING,LARGE END

3085257

$35.99

10

BEARING,LARGE END

3085257

$35.99

11

CRANKSHAFT,#3

3085255

$319.99

12

CRANKSHAFT,PTO (Incl. 8)

3085254

Unavailable

13

CRANKSHAFT ASM,CTR. (Incl. 5, 7-10, 12)

3085252

$804.99

13

CRANKSHAFT,MAG (Incl. 9)

3085253

Unavailable

14

KEY Substituted by 3081543

3080130

Unavailable

15

CRANKSHAFT #1

3085251

$329.99

15

CRANKSHAFT (Incl. 5, 7-13, 15, 18-21)

3085250

$1,279.99

16

NUT

3083093

$19.99

17

Washer

3084457

Unavailable

18

BEARING, BALL

3085260

Unavailable

19

BALLBEARING Substituted by 3085753

3085125

Unavailable

20

Spacer

3085261

Unavailable

21

BEARING, BALL

3084544

Unavailable
