HOOD ULTRA SP 0960678 and EUROPEAN ULTRA SP E960678 (4937083708A010)

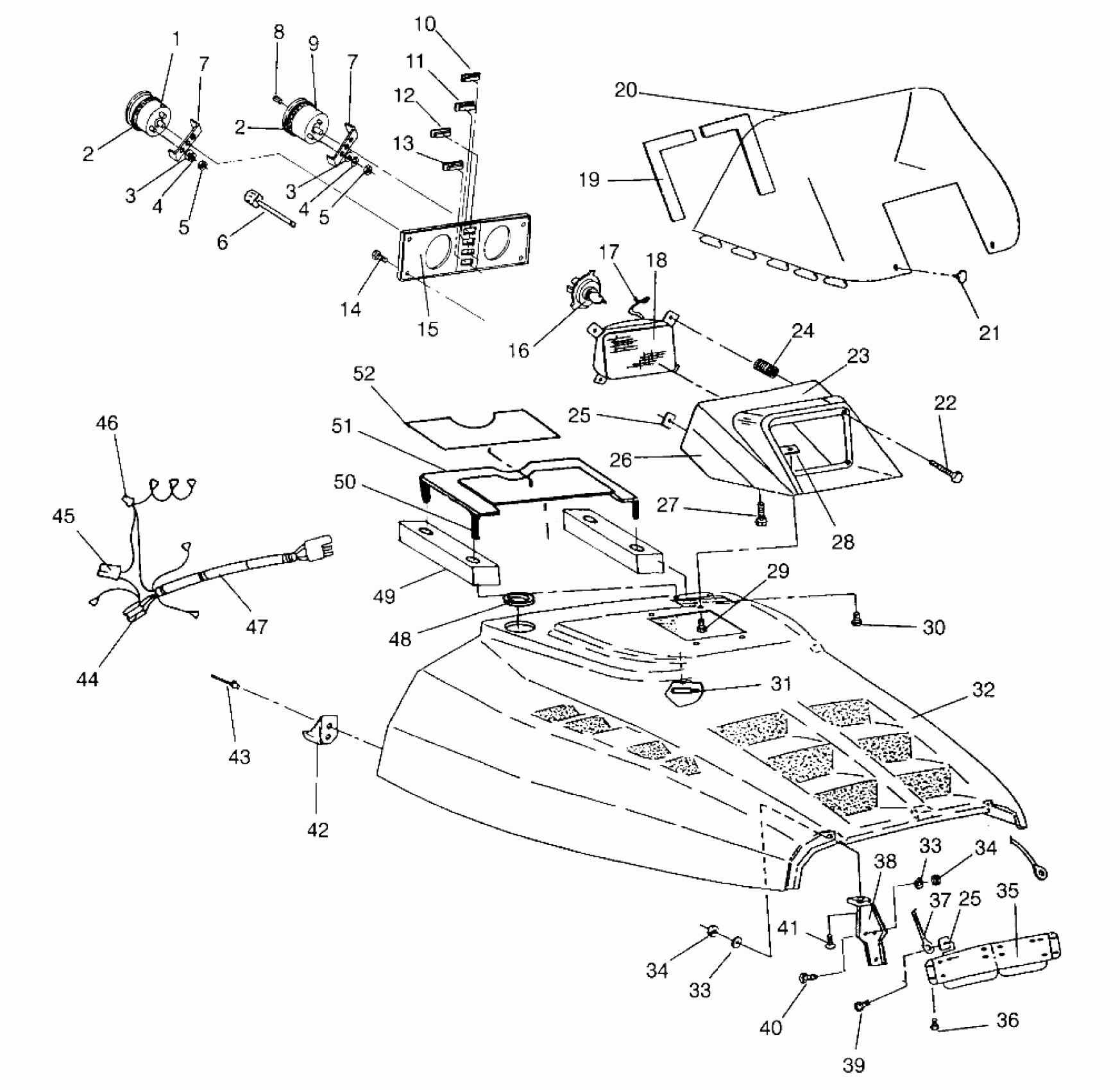

Polaris ULTRA SP - 0960678 HOOD ULTRA SP 0960678 and EUROPEAN ULTRA SP E960678 (4937083708A010) Diagram
#
1
BULB TAILLIGHT(10)
4030015
$4.03
1
TACH,6P,BACKLIT (Incl. 3-5, 7)
3280162
Unavailable
2
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
2
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
3
WASHER,FLAT,(10)
3280157
$2.39
3
WASHER,FLAT,(10)
3280157
$2.39
4
WASHER,SPLIT LOCK
3280156
$1.49
4
WASHER,SPLIT LOCK
3280156
$1.49
5
Nut
3280158
Unavailable
5
Nut
3280158
Unavailable
6
CABLE,SPEEDO.
3280094
$60.70
7
BRKT,SPEEDO/TACH
3280153
Unavailable
7
BRKT,SPEEDO/TACH
3280153
Unavailable
8
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
9
SPEEDO,190KPH,BACKLIT (Incl. 3-5, 7, 8) (190 KPH) (EURO)
3280190
Unavailable
9
SPEEDO ASM,120MPH.BACKLIT (Incl. 3-5, 7, 8)
3280188
Unavailable
10
INDICATOR'TEMP'WARN.
4040011
$32.37
11
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
12
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
13
INDICATOR,'ACC'WARN.
4040014
Unavailable
14
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
15
BEZEL, INST.
5430924
Unavailable
16
BULB,QUARTZ.H/L,INDY
2870448
$24.99
17
RETAINER,H/L BULB
4032063
Unavailable
18
HEADLIGHT ASM. (Incl. 16, 17)
4032040
Unavailable
19
PAD,W/S,LH,BLACK
5810437
Unavailable
19
PAD,W/S,RH,BLACK
5810438
$1.67
20
WINDSHIELD,LOW,BLK.
5431447
Unavailable
21
RIVET,PLASTI-LOC.(50)
7621509
$1.49
22
SCREW, ADJ.(10)
4032003
Unavailable
23
HSG,INST,TOP,BLK
5430923-070
Unavailable
24
SPRING-ADJ
4032002
Unavailable
25
NUT, SPEED(10)
7670056
Unavailable
25
NUT, SPEED(10)
7670056
Unavailable
26
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
27
SCREW(10)
7512009
Unavailable
28
NUT, SPEED(10)
7670057
$1.49
29
SCREW, SEMS(10)
7512283
$3.99
30
SCREW(10)
7511877
Unavailable
31
RETAINER,WINDSHIELD,(10)
5410970
$1.49
32
HOOD,FOIL/FOAM(ULTRA BK MT) (Incl. Foam, Foil & Warning Decals)
2631719-177
Unavailable
33
WASHER,WROUGHT(10)
7558302
$1.59
33
WASHER,WROUGHT(10)
7558302
$1.59
34
NUT-LOCK(10)
7542122
$1.49
34
NUT-LOCK(10)
7542122
$1.49
35
PLATE,RE-INF.,(HD.)
5222105
$49.51
36
SCREW(10)
7511858
$3.99
37
CABLE,HD.RETAINER
7080624
Unavailable
38
HINGE ASM,HD,BLK
2635005-067
$16.67
39
SCREW(10)
7511989
Unavailable
40
BOLT(10)
7512193
$2.39
41
BOLT-CARRIAGE(10)
7512263
$3.99
42
CUP, HOOD LATCH,(10)
5430733
$4.84
43
RIVET(50)
7621334
$1.49
44
Housing
4020115
$1.59
45
HOUSING
4020114
Unavailable
46
HOUSING
4020052
Unavailable
47
HARNESS,HEADLIGHT
2460382
Unavailable
48
SHIELD,INLET,RUBBER
5410835
Unavailable
49
SEAL,INTAKE
5811056
Unavailable
50
STAND-OFF,EXTENSION
5431685
Unavailable
51
PANEL ASM,INTAKE,BLK.MET. (Incl. 52)
2620095-177
Unavailable
52
DECAL,WARN."PK.BRAKE"
7075457
Unavailable
