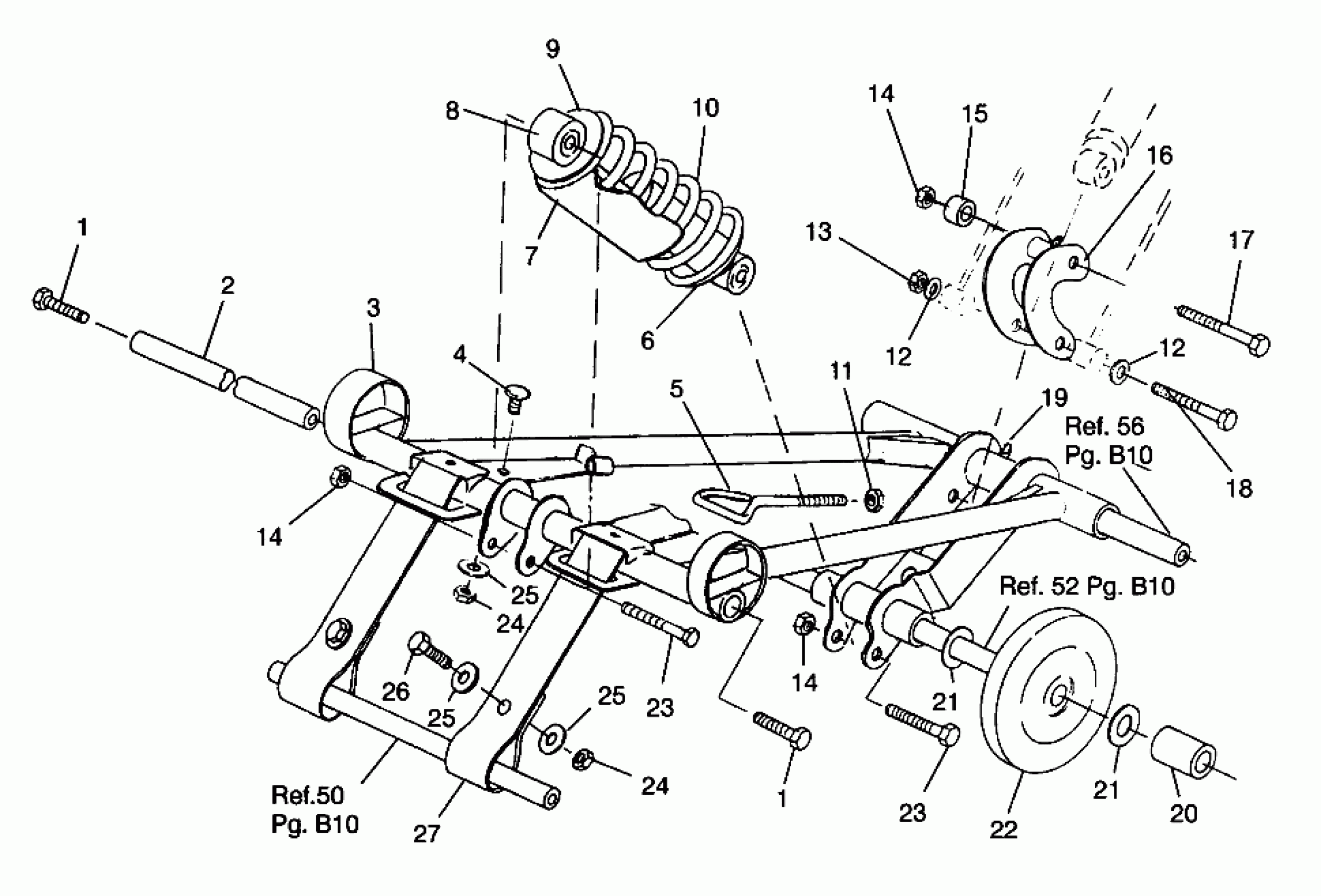

Polaris ULTRA SP - 0960678 FRONT TORQUE ARM ULTRA SP 0960678 and EUROPEAN ULTRA SP E960678 (4937083708B012) Diagram

#

Description
Price

1

BOLT,NYLOC,BLACK(10) Substituted by 7515432

7515493

Unavailable

1

BOLT,NYLOC,BLACK(10) Substituted by 7515432

7515493

Unavailable

2

SHAFT, MTG, REAR

5020570

Unavailable

3

ARM,FR.TORQUE Substituted by 1541140-067

1540973-067

Unavailable

4

BOLT(10)

7512377

$4.79

5

BOLT,EYE

7010050

Unavailable

6

RETAINER, SPRING BODY

5020617

Unavailable

7

SHIELD-SPRING

5430671

$24.27

8

SHOCK,FR.TRACK,FOX

7041402

Unavailable

9

RETAINER,SPRING,SLOTTED

5020618

$24.99

10

SPRING,BLACK,COMP.

7041253-067

$95.22

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

12

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

13

NUT LOCK(10)

7542411

$3.19

14

NUT LOCK(10)

7542403

$3.99

14

NUT LOCK(10)

7542403

$3.99

14

NUT LOCK(10)

7542403

$3.99

15

Spacer

5333028

$1.59

16

ARM,SHOCK

1540942-067

Unavailable

17

BOLT(10)

7515438

$4.79

18

BOLT(10)

7515472

$2.39

19

ZERK,FITTING,THREADED(10)

7080433

$1.49

20

SPACER, OUTER

5332784

Unavailable

21

MACHINERY BUSHING(10)

7556301

$3.19

21

MACHINERY BUSHING(10)

7556301

$3.19

22

Asm., Bogie Wheel (See Pg. B1, Ref. 26)

-------

Unavailable

23

BOLT(10)

7515415

$1.49

23

BOLT(10)

7515415

$1.49

24

NUT LOCK(10)

7542321

$1.49

24

NUT LOCK(10)

7542321

$1.49

25

WASHER(10)

7555716

$1.59

25

WASHER(10)

7555716

$1.59

25

WASHER(10)

7555716

$1.59

26

BOLT(10)

7515307

$3.99

27

STRAP,LIMITER,FRONT

5411045

Unavailable
