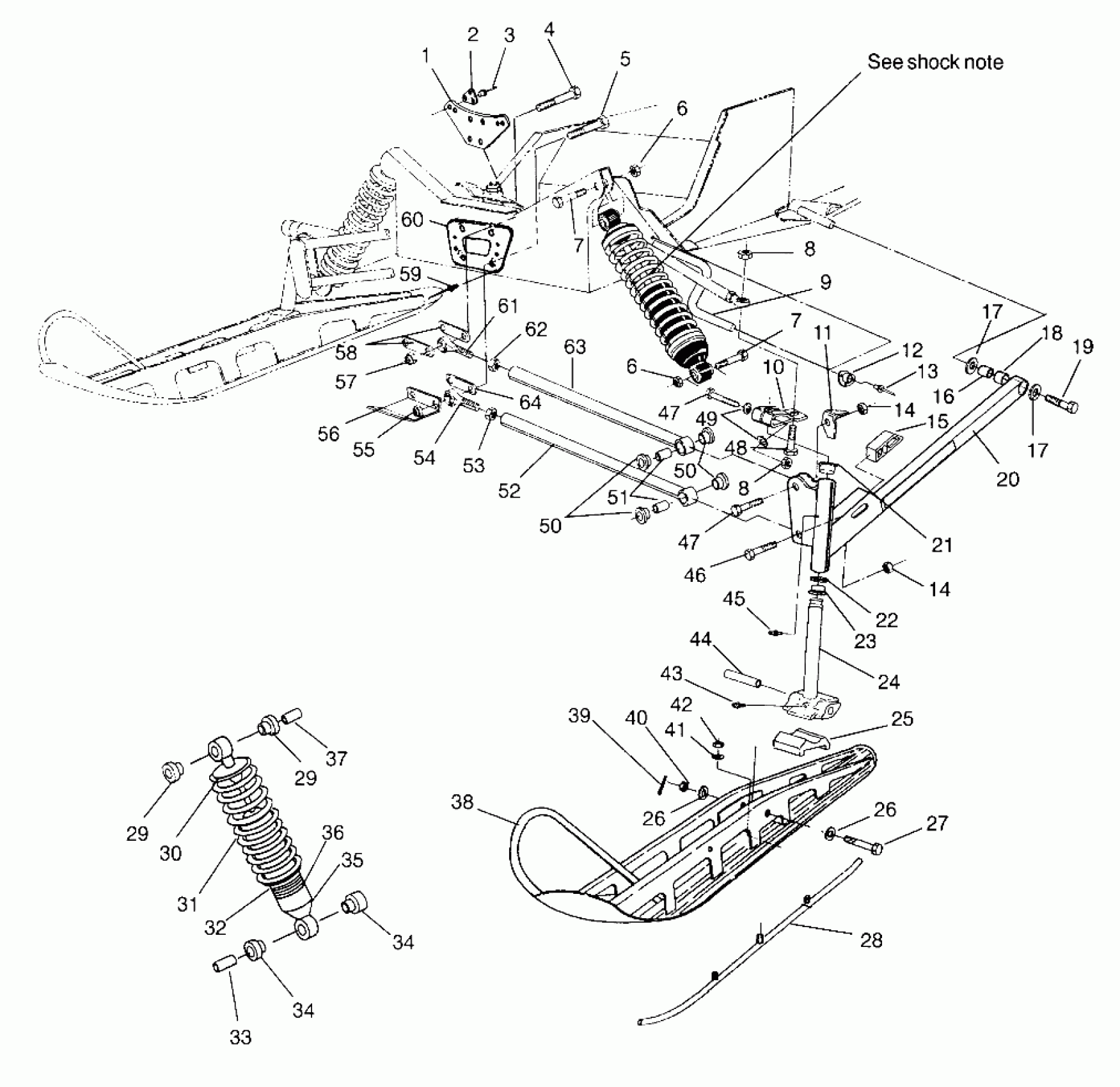

Polaris ULTRA SP - 0960678 FRONT SUSPENSION and SKI ULTRA SP 0960678 and EUROPEAN ULTRA SP E960678 (4937083708B001) Diagram

#

Description
Price

1

REINF,R.SHOCK MT.PLATE

5241395-067

$3.46

2

BRKT-SPRING RETAINER

5211659

Unavailable

3

RIVET(50) Substituted by 7661130

7661643

Unavailable

4

BOLT(10)

7512551

Unavailable

5

BOLT(10)

7512678

$19.99

6

NUT, NYLOC(10)

7542453

Unavailable

6

NUT, NYLOC(10)

7542453

Unavailable

7

BOLT(10) Substituted by 7515415

7515515

Unavailable

7

BOLT(10) Substituted by 7515415

7515515

Unavailable

8

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

8

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

9

BAR,SWAY,5/8,W/FITTED

5224681-067

Unavailable

10

Arm, Steering

5220326-067

Unavailable

11

STOP,RH,STRG,BLK.

5240398-067

Unavailable

11

STOP,LH,STRG,BLK.

5240397-067

Unavailable

12

BUSHING-SWAYBAR

5410383

Unavailable

13

RIVET(50) Substituted by 7661130

7661643

Unavailable

14

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

14

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

15

SLIDE,(FR.SUSP.)

5410385

Unavailable

16

PIVOT-TRAILING ARM

5410382

Unavailable

17

WASHER(10)

7555721

$1.49

17

WASHER(10)

7555721

$1.49

18

TUBE,TRAILING ARM

5010187

Unavailable

19

BOLT(10)

7512557

$7.60

20

ARM,TRLG,LH. (Incl. 16, 18)

1822210

Unavailable

20

ARM,TRLG,RH. (Incl. 16, 18)

1822211

Unavailable

21

BUSHING-FLANGE

3573909

$2.39

22

WASHER SPECIAL(10)

7556509

$1.59

23

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

24

SPINDLE, BLK.

6230073-067

Unavailable

25

STOP, RUBBER

5521276

Unavailable

26

WASHER, WROUGHT(10) Substituted by 7555801

7555928

Unavailable

26

WASHER, WROUGHT(10) Substituted by 7555801

7555928

Unavailable

27

BOLT(10)

7515462

$8.79

28

SKAG,PR.,CARBIDE (Pair)

2870693

$69.99

29

BUSHING,SHOCK,.220 Substituted by 1500137

5431540

$24.99

29

BUSHING,SHOCK,.220 Substituted by 1500137

5431540

$24.99

30

RETAINER,SPRING,SLOTTED

5020618

$24.99

31

SPRING,(BLK.),IFS COMP.

7041252-067

Unavailable

32

RING, RETAINING(10)

7710424

$0.63

33

BUSHING, (1.34 IN.)

5020612

Unavailable

34

BUSHING,SHOCK

5431727

Unavailable

34

BUSHING,SHOCK

5431727

Unavailable

35

Shock, Gas, IFS (See Pg. for Details)

-------

Unavailable

36

RETAINER, SPRING BODY

5020617

Unavailable

37

BUSHING, (1.16 IN.)

5020613

Unavailable

38

SKI WELD, BLK

1820332-067

Unavailable

39

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

40

NUT, CASTLE(10) Substituted by 7542438

7542457

Unavailable

41

WASHER(10)

7571628

Unavailable

42

NUT-5/16-18 NYLOK-Y

7542324

$1.49

43

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

44

BUSHING,PIVOT,(10)

5010158

$19.99

45

ZERK,FITTING,THREADED(10)

7080433

$1.49

46

BOLT(10) Substituted by 7515540

7515492

$4.62

47

BOLT(10) Substituted by 7517583

7515491

Unavailable

47

BOLT(10) Substituted by 7517583

7515491

Unavailable

48

BOLT(10)

7512404

$3.99

49

WASHER(10) Substituted by 7555832

7555851

Unavailable

50

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

50

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

51

BUSHING-RADIUS ROD,(10)

5010127

$7.99

52

ROD,RAD,LOW,WIDE,BLK,SP Substituted by 2202105

1822139-067

Unavailable

53

NUT-JAM(10)

7542711

$2.39

54

ROD END,RH Substituted by 7061011

7060156

Unavailable

55

NUT FLEX,(10)

7542703

Unavailable

56

BRACE, PAN

5223997-067

Unavailable

57

NUT, LOCK,(10)

7542503

$10.39

58

STRAP,SPACER TOP

5211344

$7.27

59

RIVET-3/16-.090-.290

7661637

$1.49

60

BRACE,BLKHD/STRG,BLK.

5211589-067

Unavailable

61

ROD END, RH Substituted by 7061010

7060155

Unavailable

62

NUT JAM(10)

7542520

$2.39

63

ROD,RAD,UP.BLK. Substituted by 2202104

1822138-067

Unavailable

64

STRAP,SPACER BOTTOM NOTE: See Page for Fox shocks.

5211345

$12.99
