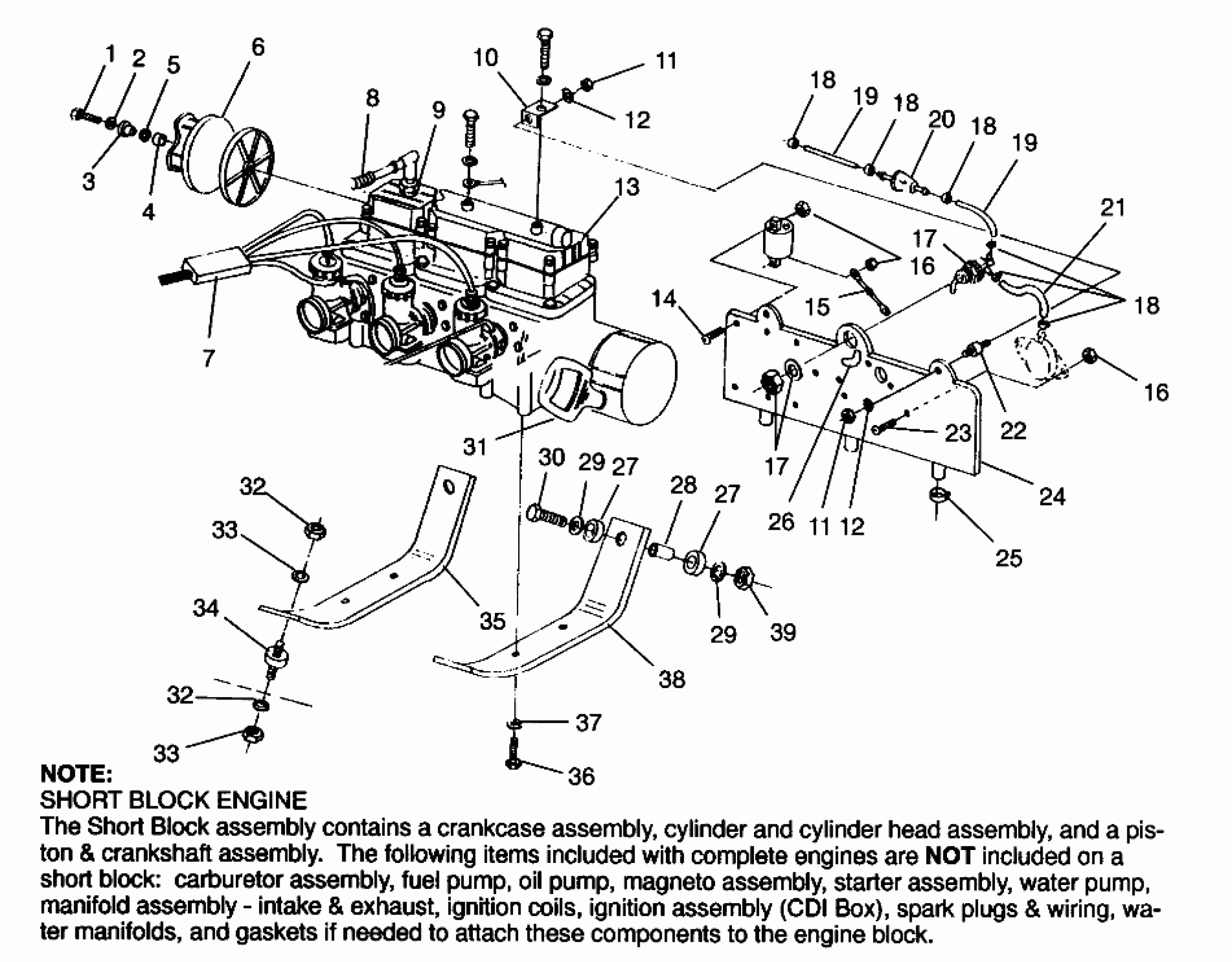

Polaris ULTRA SP - 0960678 ENGINE MOUNTING ULTRA SP 0960678 and EUROPEAN ULTRA SP E960678 (4937083708C002) Diagram

#

Description
Price

1

SCREW

7512595

Unavailable

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAIN.

5010287

$12.99

4

SPACER,CLUTCH BOLT

5020513

$44.99

5

O RING,(10)

5410507

$1.49

6

Asm., Drive Clutch ( See Pg., Ref.)

-------

Unavailable

7

CABLE-THROTTLE W/OIL

7080597

Unavailable

8

TUBING,CONVOLUTED

5521147

Unavailable

9

SPARKPLUG(8)

3070165

$3.99

10

BRKT,HDWR.MOUNT Substituted by 5241179-067

5241179

Unavailable

11

NUT HEX(10)

7542105

$3.99

11

NUT HEX(10)

7542105

$3.99

12

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

12

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

13

ENG.(S.B.)EC68PL-01 Substituted by 3085195

3085198

Unavailable

14

BOLT ,(10) Substituted by 7517377

7512239

Unavailable

15

STRAP,GND,(IGN.COIL)

5211663

$3.51

16

NUT(10)

7542124

Unavailable

16

NUT(10)

7542124

Unavailable

17

VALVE,FUEL SHUTOFF

7051016

Unavailable

17

VALVE,FUEL SHUTOFF

7051016

Unavailable

18

CLAMP,SPRING,(10)

7080534

$1.59

18

CLAMP,SPRING,(10)

7080534

$1.59

18

CLAMP,SPRING,(10)

7080534

$1.59

18

CLAMP,SPRING,(10)

7080534

$1.59

19

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

19

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

20

FILTER FUEL,(10)

2530008

$4.84

21

FUEL LINE, 5 FT. Substituted by 8450044-153

8450044-156

Unavailable

22

MOUNT,CARB.

3110050

$12.99

23

SCREW(10)

7512279

$1.49

24

MOUNT,ENG.HARDWARE

5432094

$21.43

25

CLAMP(10)

7080533

$3.99

26

DECAL,FUEL SHUT-OFF

7073869

Unavailable

27

MOUNT, ENGINE

5410390

Unavailable

27

MOUNT, ENGINE

5410390

Unavailable

28

SPACER, (MTR.MT.)

5332778

Unavailable

29

WASHER(10)

7555740

$1.59

29

WASHER(10)

7555740

$1.59

30

SCREW(10)

7512530

$5.59

31

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

32

NUT LOCK(10)

7542411

$3.19

32

NUT LOCK(10)

7542411

$3.19

33

WASHER(10) Substituted by 7555806

7555720

$0.79

33

WASHER(10) Substituted by 7555806

7555720

$0.79

34

MOUNT,RUBBER

3110047

Unavailable

35

PLATE,LH,ENGINE Substituted by 2201041

5240830

Unavailable

36

BOLT(10)

7512575

Unavailable

37

WASHER LOCK(10)

7553101

$3.99

38

PLATE,RH,ENGINE Substituted by 2201041

5240831

Unavailable

39

NUT,FLANGE(10)

7542522

$5.59
