DRIVE TRAIN ULTRA SP 0960678 and EUROPEAN ULTRA SP E960678 (4937083708B009)

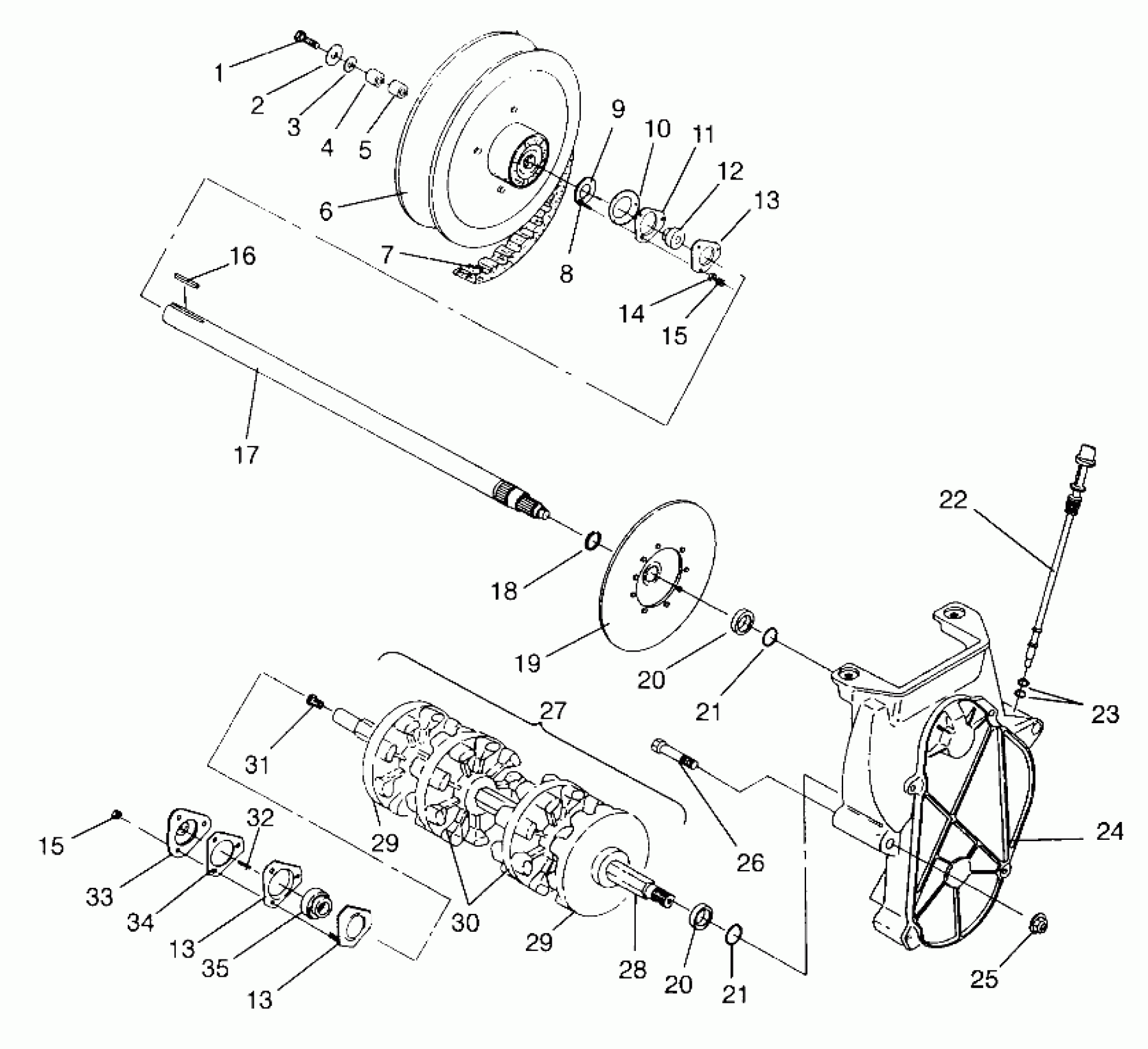

Polaris ULTRA SP - 0960678 DRIVE TRAIN ULTRA SP 0960678 and EUROPEAN ULTRA SP E960678 (4937083708B009) Diagram
#
1
BOLT(10)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER,DRIVEN CLUTCH
5020645
Unavailable
5
Spacer
5020837
$24.99
6
Asm., Driven Clutch (See Pg)
-------
Unavailable
7
BELT DRIVE(5)
3211042
$109.99
8
BOLT(10) Substituted by 7512377
7512394
Unavailable
9
WASHER SPECIAL(10)
7556509
Unavailable
10
FLANGE RD,RELUBE W/ZERK
5241359
$32.37
11
GASKET,JACKSHAFT,BLK.
5811095
$2.41
12
BEARING,1"X52MM,SPHER.
3514523
Unavailable
13
FLANGETTE ASM,,W/ SCREWS Substituted by 1012945
1012434
Unavailable
13
FLANGETTE ASM,,W/ SCREWS Substituted by 1012945
1012434
Unavailable
13
FLANGETTE ASM,,W/ SCREWS Substituted by 1012945
1012434
Unavailable
14
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
15
NUT-5/16-18 NYLOK-Y
7542324
$1.49
15
NUT-5/16-18 NYLOK-Y
7542324
$1.49
16
KEY-SQUARE(10)
7721204
$3.19
17
JACKSHAFT ASM,LONG,PRESS,BLK (Incl. 18)
1332179-067
$228.56
18
RING, RETAINING(10)
7710422
$3.99
19
DISC ASM, BRAKE
1910086
Unavailable
20
SLEEVE, SEAL
5020588
$23.99
20
SLEEVE, SEAL
5020588
$23.99
21
O RING,(10)
5410613
$1.99
21
O RING,(10)
5410613
$1.99
22
DIPSTICK Substituted by 1332143
5431419
Unavailable
23
O-RING
5410675
$1.60
24
Cover, Chaincase Cast (See Pg., Ref.)
-------
Unavailable
25
NUT(10)
7542423
$3.99
26
BOLT(10)
7515428
$4.79
27
DRIVESHAFT ASM,HD,PRESS BRG Substituted by 1590258 (Incl. 13, 28-31, 35)
1590253
Unavailable
28
SHAFT,DRIVE,H.S.PRSBRG.
6230091
Unavailable
29
SPROCKET, HALF,9T (1 Side)
5430993
Unavailable
29
SPROCKET, HALF,9T (1 Side)
5430993
Unavailable
30
SPROCKET, 9T
5430571
Unavailable
31
BUSHING METAL SPEEDO
3280019
$11.99
32
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
33
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
34
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
35
BEARING,1"X52MM,SPHER.
3514524
Unavailable
