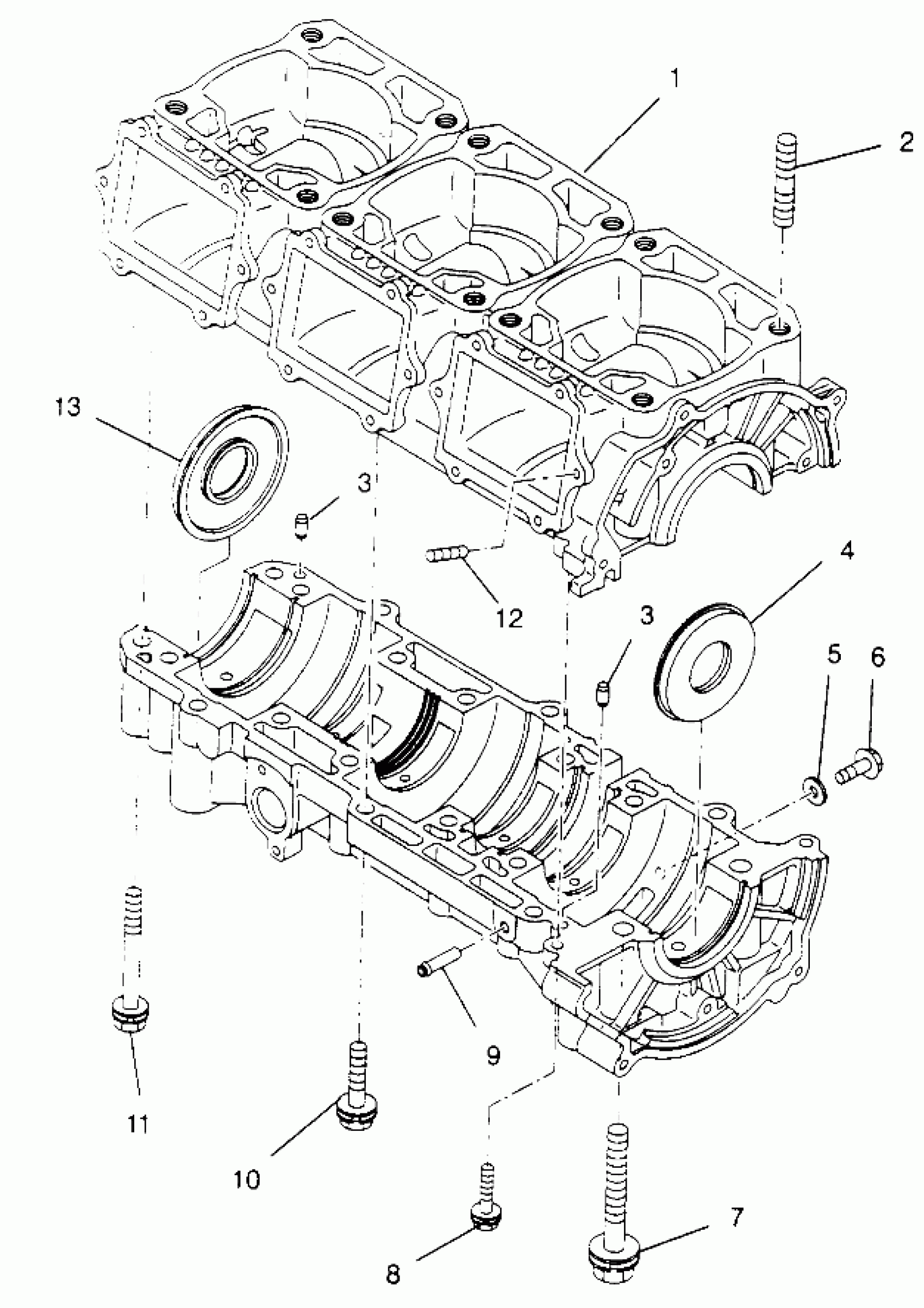

Polaris ULTRA SP - 0960678 CRANKCASE ULTRA SP 0960678 and EUROPEAN ULTRA SP E960678 (4937083708C008) Diagram

#

Description

Price

1

CRANKCASE (Incl. 1-3, 7-12)

3085239

$500.89

2

Stud

3084519

$12.39

3

PIN, DOWEL Substituted by 3086838

3080103

$7.14

3

PIN, DOWEL Substituted by 3086838

3080103

$7.14

4

Seal, Oil

3085105

Unavailable

5

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

6

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

7

BOLT&WASHER ASM.

3085240

$5.43

8

BOLT&WASHER ASM.

3082038

$3.99

9

PIPE, PULSE

3083798

$9.52

10

BOLT&WASHER ASM.

3084225

$3.99

11

BOLT&WASHER ASM.

3084670

Unavailable

12

STUD Substituted by 3086772

3084520

$3.81

13

SEAL, OIL

3085241

Unavailable
