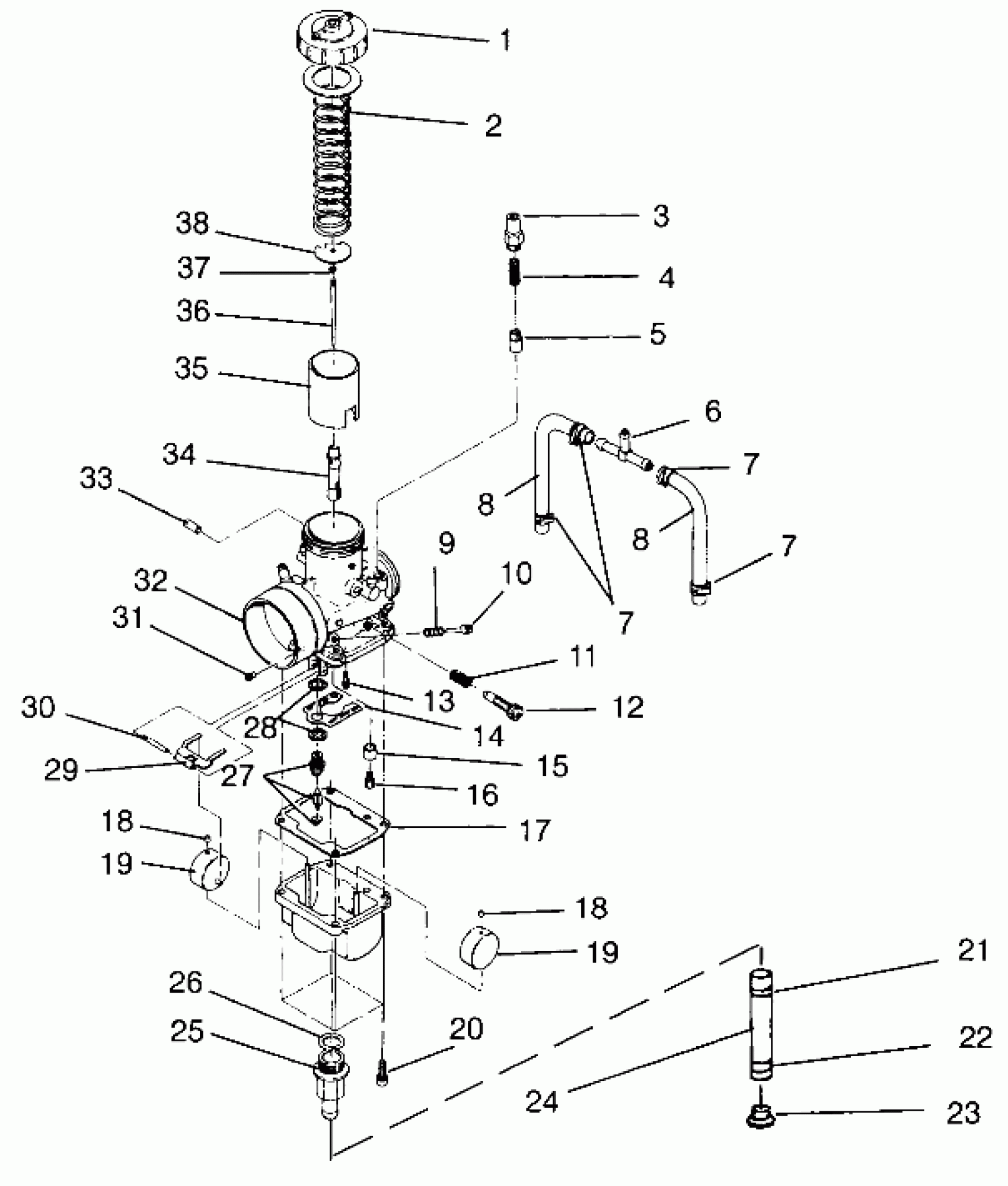

Polaris ULTRA SP - 0960678 CARBURETOR ULTRA SP 0960678 and EUROPEAN ULTRA SP E960678 (4937083708C013) Diagram

#

Description
Price

1

TOP ASM.

3130644

Unavailable

2

SPRING,THROTTLE

3130444

Unavailable

3

HOLDER,GUIDE

3130199

$28.32

4

SPRING,PLUNGER

3130006

$8.89

5

PLUNGER ASM, STARTER

3130328

$32.37

6

NIPPLE

3130611

Unavailable

7

CLIP

3130613

Unavailable

7

CLIP

3130613

Unavailable

7

CLIP

3130613

Unavailable

8

HOSE

3130605

Unavailable

8

HOSE

3130605

Unavailable

9

SPRING,AIR ADJUST

3130012

$8.89

10

SCREW,AIR

3130011

$19.99

11

SPRING,THROTTLE ADJ.

3130010

$8.89

12

SCREW,THROTTLE STOP

3130009

$19.99

13

JET,PILOT,#50(10) (#50)

3130629

$7.27

14

PLATE

3130243

Unavailable

15

RING,CARB

3130232

Unavailable

16

JET,MAIN,#340 Substituted by 3130137 (#340)

3130626

Unavailable

17

GASKET,FLOAT CHAMBER

3130236

$12.13

18

CAP,(10)

3130237

$4.03

18

CAP,(10)

3130237

$4.03

19

FLOAT ASM

3130021

$40.46

19

FLOAT ASM

3130021

$40.46

20

SCREW

3130056

$3.19

21

CLAMP,SPRING,(10)

7080534

$1.59

22

CLAMP,HOSE(10)

7080544

Unavailable

23

PLUG,TRAP

5431893

$12.94

24

FUEL LINE, 5 FT.

8450045-153

$99.99

25

NIPPLE

3130573

$32.37

26

O RING

3130239

Unavailable

27

VALVE ASM,NEEDLE

3130643

$56.65

28

WASHER(10)

3130047

$4.84

29

ARM,FLOAT

3130048

Unavailable

30

PIN, FLOAT

3130361

$8.89

31

JET,AIR,(PAJ1) (PAJ1)

3130256

Unavailable

32

CARBURETOR 2 Substituted by 3130692 (Incl. 1-20, 25-38)

3130647

Unavailable

32

CARBURETOR 1 Substituted by 3130691 (Incl. 1-20, 25-38)

3130646

Unavailable

33

CAP

3130479

$14.56

34

NEEDLE JET,(P-4) (247)

3130641

Unavailable

35

VALVE,THROTTLE,(2.0) (2.0)

3130664

Unavailable

36

JET NEEDLE

3130645

Unavailable

37

E-RING,(10)

3130508

$6.46

38

PLATE, THROTTLE

3130054

$6.46
