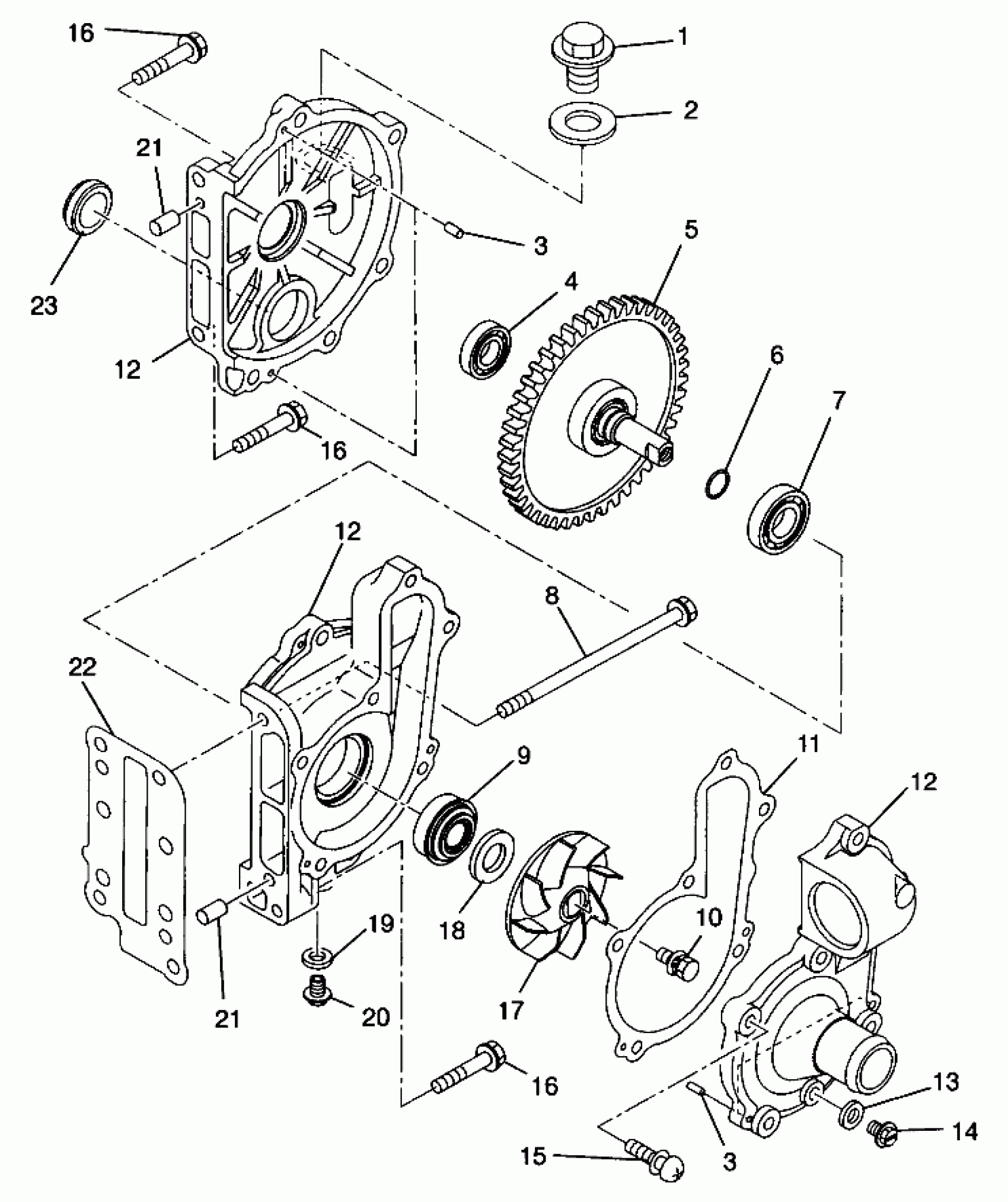

Polaris ULTRA RMK - 0960978 WATER PUMP ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, and ULTRA RMK 096 (4931683168C011) Diagram

#

Description
Price

1

PLUG Substituted by 3086749

3083453

Unavailable

2

GASKET

3082956

$4.84

3

PIN, DOWEL

3084721

$4.79

3

PIN, DOWEL

3084721

$4.79

4

BEARING, BALL

3085286

Unavailable

5

SHAFT,WATER PUMP *

3085269

Unavailable

6

O-RING,(WATER PUMP SHAFT)

3085149

Unavailable

7

BALLBEARING

3085145

Unavailable

8

Bolt, Flange

3085272

$6.23

9

Seal, Mechanical

3085384

$60.70

10

Bolt

3085270

Unavailable

11

GASKET,(PUMP CASING 1)

3085151

Unavailable

12

PUMP ASM, WATER (Incl. 1-7, 9-15, 17-21, 23)

3085267

$629.99

12

Pump Casing 1 Complete

-------

Unavailable

12

PUMP ASM, WATER (Incl. 1-7, 9-15, 17-21, 23)

3085267

$629.99

12

Pump Casing 1 Complete

-------

Unavailable

12

PUMP ASM, WATER (Incl. 1-7, 9-15, 17-21, 23)

3085267

$629.99

12

Pump Casing 1 Complete

-------

Unavailable

13

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

14

PLUG, AIR VENT Substituted by 7517266

3083350

Unavailable

15

SCREW&WASHER ASM.(10)

3084221

$2.39

16

Bolt, Flange

3085295

$2.63

16

Bolt, Flange

3085295

$2.63

16

Bolt, Flange

3085295

$2.63

17

IMPELLER UNIT

3085174

Unavailable

18

PLATE,SEALING

3085175

Unavailable

19

GASKET,ALUMINUM(10)

3083482

$3.22

20

PLUG

3085152

Unavailable

21

PIN, DOWEL Substituted by 3086838

3080103

$7.14

21

PIN, DOWEL Substituted by 3086838

3080103

$7.14

22

GASKET, WATER PUMP

3085271

Unavailable

23

GAUGE, OIL

3085146

Unavailable
