TUNNEL ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, and ULTRA RMK 0960978 (4931683168A005)

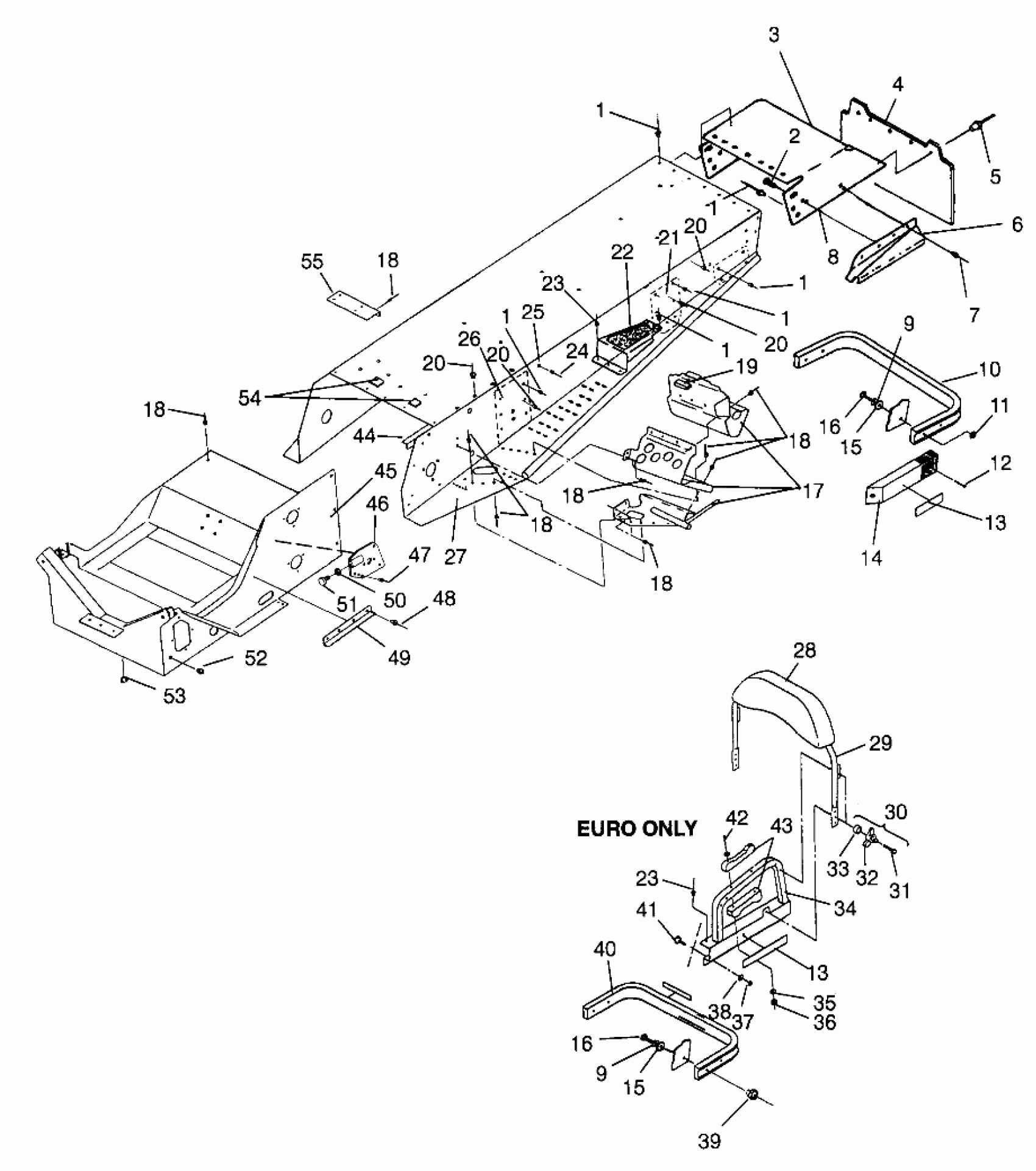

Polaris ULTRA RMK - 0960978 TUNNEL ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, and ULTRA RMK 0960978 (4931683168A005) Diagram
#
1
RIVET,SEMI-TUBE,(50)
7661841
$1.49
1
RIVET,SEMI-TUBE,(50)
7661841
$1.49
1
RIVET,SEMI-TUBE,(50)
7661841
$1.49
1
RIVET,SEMI-TUBE,(50)
7661841
$1.49
1
RIVET,SEMI-TUBE,(50)
7661841
$1.49
1
RIVET,SEMI-TUBE,(50)
7661841
$1.49
2
SCREW(10)
7512091
$3.99
3
DECAL,LH,TRACK/SEAT,ENGLISH
7075414
Unavailable
3
DECAL,RH,TRACK/SEAT,FRENCH
7075415
Unavailable
4
FLAP,SNOW
5432033
Unavailable
5
POP RIVET(50)
7621418
$1.49
6
SKIRT,SNOW,LH
5432049-070
$33.91
6
SKIRT,SNOW,RH
5432050-070
$30.16
7
RIVET,(50)
7621341
Unavailable
8
PANEL ASM,TUNNELBACK
1012360-067
Unavailable
8
PANEL,TUNNELBACK
5241053-067
$308.99
9
LOCK WASHER(10)
7552801
$1.59
9
LOCK WASHER(10)
7552801
$1.59
10
BUMPER, REAR
2670170
Unavailable
11
NUT-LOCK(10)
7542122
$1.49
12
SCREW(10)
7511863
$1.99
13
REFLECTOR RED
2670070
$9.91
13
REFLECTOR RED
2670070
$9.91
14
CAP, BUMPER, BLK.
5430930-070
Unavailable
15
WASHER(10)
7558301
$1.49
15
WASHER(10)
7558301
$1.49
16
BOLT(10)
7512240
$3.99
16
BOLT(10)
7512240
$3.99
17
FOOTREST ASM, LH
1011861
Unavailable
17
FOOTREST ASM,RH,BLK.
1011892
Unavailable
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
19
EXTRUSION,CLUTCHGUARD
5521238
$6.46
20
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
20
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
20
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
20
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
21
BRKT,LH,R.SUSP Substituted by 1012563-067 (RMK)
1012409-067
Unavailable
21
BRKT,RH,R.SUSP Substituted by 1012564-067 (RMK)
1012410-067
Unavailable
21
PAD,LH,R.SUSP. (SKS)
5241268-067
Unavailable
21
PAD,RH,R.SUSP. (SKS)
5241269-067
Unavailable
22
PAD,LH FOOT SAFETY
5830007
$7.89
22
PAD,RH FOOT SAFETY
5830008
$4.92
22
FOOTREST,LH R,BLK.
5220893-067
Unavailable
22
FOOTREST,RH R,BLK.
5220894-067
$32.15
23
RIVET-3/16-.090-.290
7661637
$1.49
23
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
25
SNAP-MALE(10)
7080227
Unavailable
26
PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067
5241303-067
Unavailable
26
PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067
5241304-067
Unavailable
27
TUNNEL,1PC,LIQ.SKS
1012376
$405.94
28
COVER,BACKREST ASM. Substituted by 2681265
2681790
Unavailable
29
BACKREST ASM. Substituted by 2681356
2681789
Unavailable
30
KNOB ASM,BACKREST (Incl. 35-37)
2670130
Unavailable
31
SCREW(10)
7515352
Unavailable
32
Knob, Backrest
5630386-067
$20.22
33
SPACER
5431285
Unavailable
34
BAR,GRAB,LH,BLK.
1011729-067
Unavailable
34
BAR,GRAB,RH,BLK.
1011730-067
Unavailable
35
WASHER(10)
7555783
$3.99
36
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
37
NUT, NYLOK(10)
7542327
$4.79
38
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
39
RIVNUT(10)
7542130
$6.23
40
BUMPER ASM,REAR,(TOUR)
2670171
Unavailable
41
BOLT(10) Substituted by 7512325
7515363
Unavailable
42
SCREW(10)
7510504
$6.76
43
GRIP, HAND Substituted by 5433383
5431015
$19.68
44
BRACE,REINF.TUNNEL
5240242
Unavailable
45
BULKHEAD (RMK)
1012416-067
Unavailable
45
BULKHEAD (SKS)
1012305-067
$551.24
46
LIMITER,TORQUE,(680), BLK
1012414-067
Unavailable
47
RIVET(50) Substituted by 7661130
7661643
Unavailable
48
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
49
GUARD,ADAPTER GUIDE
5222857
$12.94
50
NUT, JAM(10)
7542432
$3.99
51
STOP,TORQUE,RUBBER
3110052
Unavailable
52
PLUG, HOLE(10)
7080416
$5.65
53
PLUG-HOLE
7080398
$4.84
54
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
55
BRKT, TOOL BOX
5220973
Unavailable
