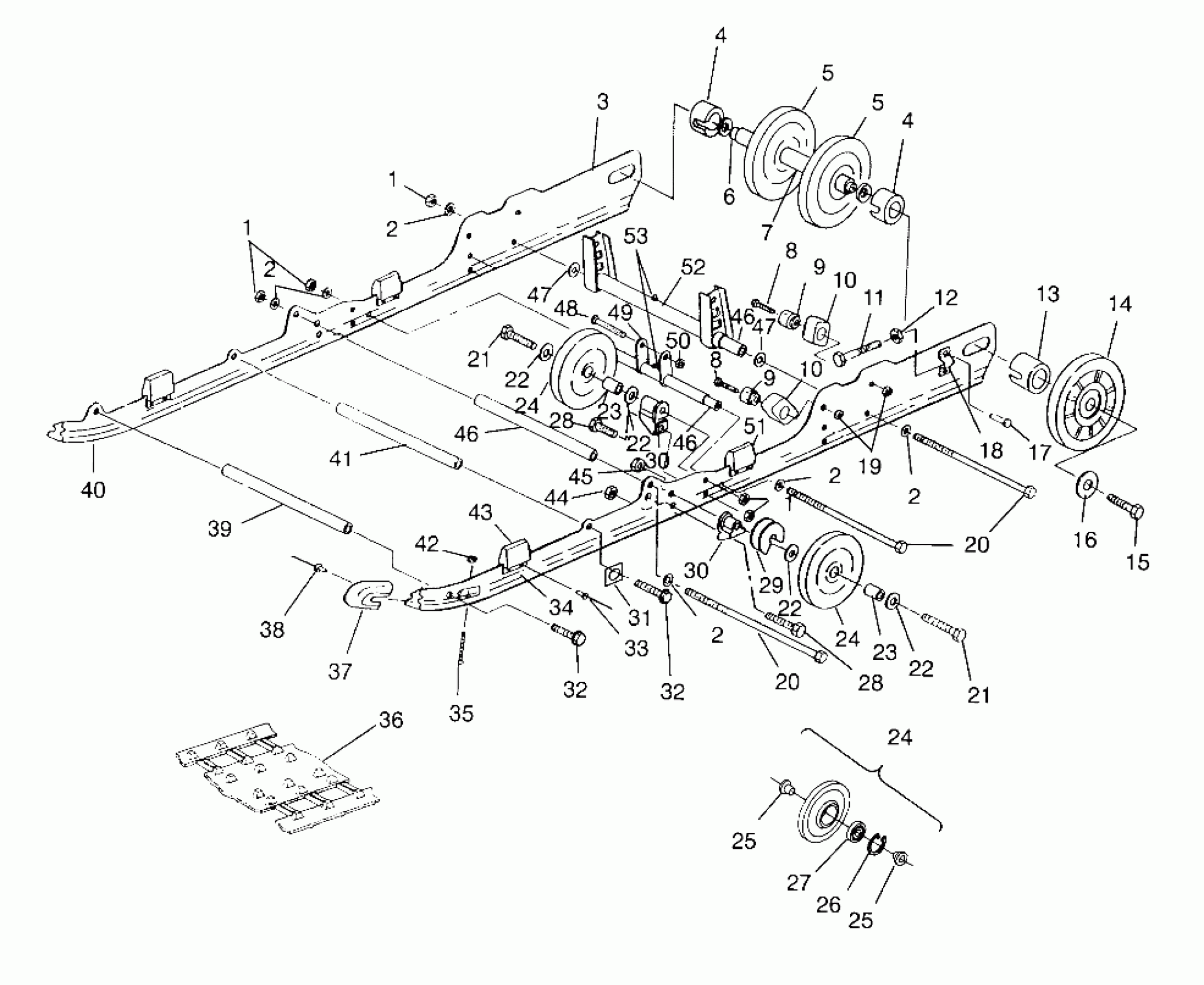

Polaris ULTRA RMK - 0960978 SUSPENSION ULTRA SKS 0960578, EURO ULTRA SKS E960578, and ULTRA RMK 096097 (4931683168B011) Diagram

#

Description
Price

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

3

RAIL ASM,RH,133" (Incl. 16, 27, 39, 44)

1540947

$339.99

3

RAIL ASM,LH,133" (Incl. 16, 27, 39, 44)

1540946

$269.55

4

SPACER INNER IDLER

5010169

Unavailable

4

SPACER INNER IDLER

5010169

Unavailable

5

WHEEL, IDLER Substituted by 1594079-070

1594021

Unavailable

5

WHEEL, IDLER Substituted by 1594079-070

1594021

Unavailable

6

SHAFT,IDLER

5020722

Unavailable

7

SPACER CTR IDLER

5010168

Unavailable

8

BOLT(10)

7515537

$10.99

8

BOLT(10)

7515537

$10.99

9

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

9

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

10

BUMPER,F.PIVOT ARM

5410925

$12.94

10

BUMPER,F.PIVOT ARM

5410925

$12.94

11

BOLT, ADJUSTER(10)

7515455

$29.99

12

NUT(10)

7542440

Unavailable

13

SPACER-IDLER-OUTER

5332641

Unavailable

14

WHEEL,IDLER,LAV. (Lavender)

1594049

Unavailable

15

BOLT(10)

7515526

$1.19

16

WASHER(10) Substituted by 7556130

7571629

Unavailable

17

RIVET,(50)

7621501

$2.39

18

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

19

NUT LOCK(10)

7542403

$3.99

20

SCREW Substituted by 7517353

7515549

Unavailable

20

SCREW Substituted by 7517353

7515549

Unavailable

21

BOLT(10)

7512538

$6.39

21

BOLT(10)

7512538

$6.39

22

WASHER, FLAT(10)

7555852

$2.39

22

WASHER, FLAT(10)

7555852

$2.39

22

WASHER, FLAT(10)

7555852

$2.39

22

WASHER, FLAT(10)

7555852

$2.39

23

SPACER, WHEEL

5333116

$7.99

23

SPACER, WHEEL

5333116

$7.99

24

WHEEL, IDLER (Incl. 25-27)

1543018

$56.65

24

WHEEL, IDLER (Incl. 25-27)

1543018

$56.65

24

WHEEL, IDLER (Incl. 25-27)

1543018

$56.65

25

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

25

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

26

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

27

BEARING (1 per Wheel)

3514303

$11.99

28

BOLT(10)

7512404

$3.99

28

BOLT(10)

7512404

$3.99

29

ROLLER, SPRING

5431366

$10.51

30

SPACER

5630399

$11.99

30

SPACER

5630399

$11.99

31

BRKT-SHAFT SUPPORT

5241443

Unavailable

32

BOLT

7515542

Unavailable

32

BOLT

7515542

Unavailable

33

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

34

REINF., BUMPER

5222629

$13.75

35

BOLT(10)

7515175

$3.99

36

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

36

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

36

TRACK,133"X1",MOD(LIGHTNING) (SKS)

5411060

Unavailable

36

TRACK,133"X1.5 Substituted by 2871368 (RMK)

5410921

Unavailable

37

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

38

RIVET(50)

7621435

$1.49

39

SHAFT,PIVOT ARM

5020723

$29.99

40

SLIDER,BLACK(2)

5521320

Unavailable

41

SHAFT,PIVOT ARM

5020724

$29.99

42

NUT-LOCK(10)

7542122

$1.49

43

BUMPER,SUSPENSION

5811097

Unavailable

44

NUT-LOCK(10)

7542439

$1.49

45

NUT, NYLOCK(10)

7542525

$4.79

46

SHAFT

5333404

$24.27

46

SHAFT

5333404

$24.27

46

SHAFT

5333404

$24.27

47

WASHER(10)

7555893

$1.49

47

WASHER(10)

7555893

$1.49

48

BOLT(10)

7515472

$2.39

49

ARM,SHOCK PIVOT

1541001-067

$43.65

50

NUT LOCK(10)

7542411

$3.19

51

BUMPER, RAIL

5810554

$7.27

52

ARM,R.PIVOT

1540981-067

Unavailable

53

ZERK,FITTING,THREADED(10)

7080433

$1.49
