REAR TORQUE ARM ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, and ULTRA RM (4931683168C002)

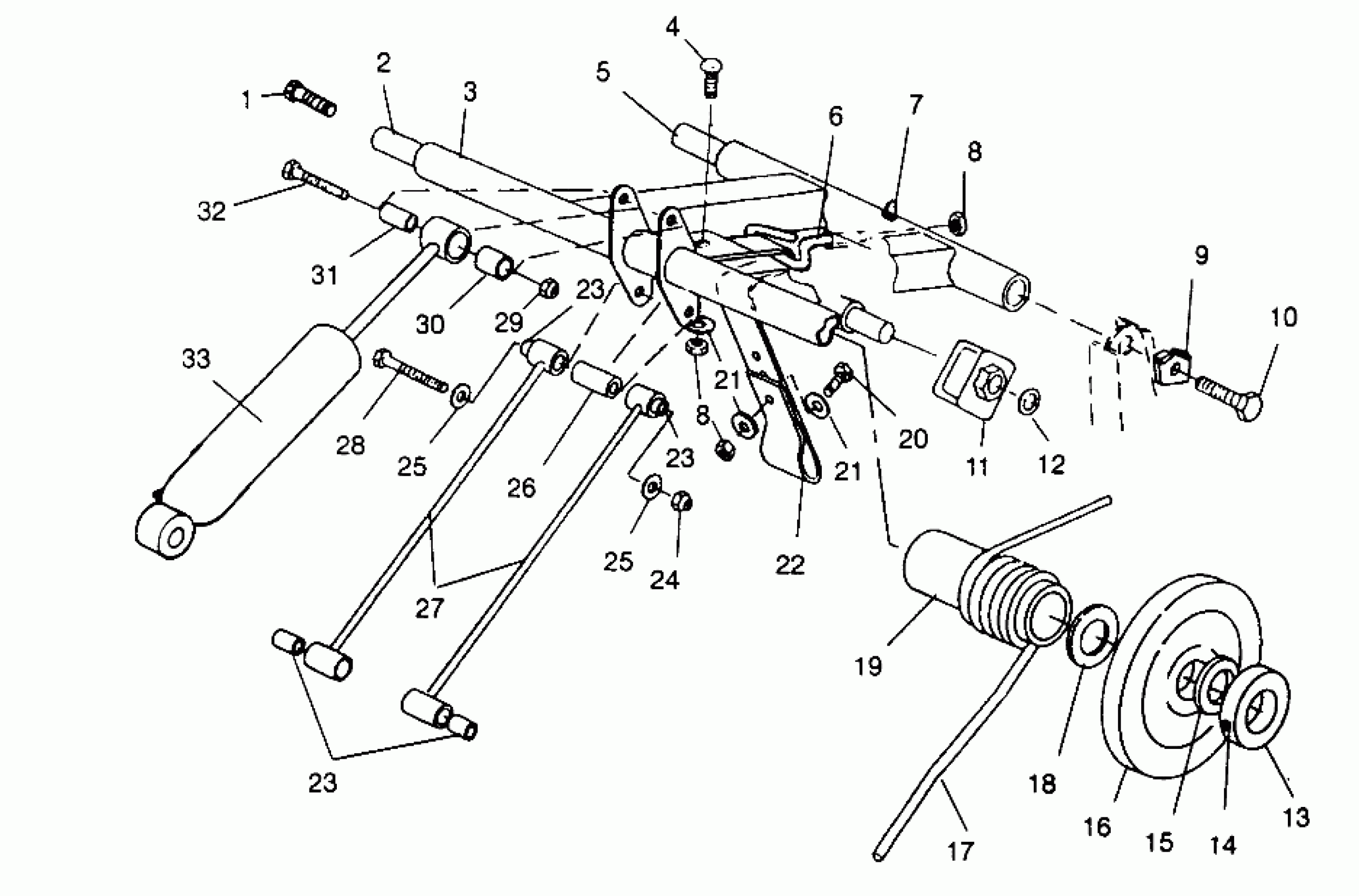

Polaris ULTRA RMK - 0960978 REAR TORQUE ARM ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, and ULTRA RM (4931683168C002) Diagram
#
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
2
SHAFT,R.TORQUE,UPPER
5020845
$63.99
3
ARM,R.TORQUE,BLK Substituted by 2200914 (X-10, Blk)
1541024-067
$68.19
4
BOLT(10) (RMK)
7512377
$4.79
5
SHAFT,LOW,RR,TORQUE
5020843
Unavailable
6
BOLT,EYE (RMK)
7010050
Unavailable
7
ZERK,FITTING,THREADED(10)
7080433
$1.49
8
NUT-5/16-18 NYLOK-Y (RMK)
7542324
$1.49
8
NUT-5/16-18 NYLOK-Y (SKS)
7542324
$1.49
8
NUT-5/16-18 NYLOK-Y (RMK)
7542324
$1.49
8
NUT-5/16-18 NYLOK-Y (SKS)
7542324
$1.49
9
LOCK,BOLT,MECHANICAL
5211649
Unavailable
10
BOLT(10)
7515526
$1.19
11
ROLLER, SPRING ADJ.
5431168
Unavailable
12
CLIP-PUSH ON
7080394
$2.39
13
COLLAR-BRG. LOCK
5010155
Unavailable
14
SCREW-SET(10)
7512257
$3.99
15
WASHER, THRUST(10) Substituted by 7555871
7555862
$5.56
16
Wheel, Carrier
1543023
Unavailable
17
SPRING,LH,TORS(.421DIA) (.421) Med.
7041461-067
Unavailable
17
SPRING,RH,TORS(.406DIA) (.406) Std.
7041464-067
Unavailable
17
SPRING,RH,TORS(.421DIA) (.421) Med.
7041462-067
$113.32
17
SPRING,LH,TORS(.406DIA) (.406) Std.
7041463-067
Unavailable
18
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
19
SLEEVE,TORSION SPRING
5431923
$6.39
20
BOLT(10)
7515307
$3.99
21
WASHER(10)
7555716
$1.59
21
WASHER(10)
7555716
$1.59
22
STRAP,LIMITER (RR, QA)(RMK)
5411061
Unavailable
22
STRAP-LIMITER,RR,SA (RR,SA)(SKS)
5411062
Unavailable
23
BUSHING,PIVOT TUBE
5020561
$1.59
23
BUSHING,PIVOT TUBE
5020561
$1.59
23
BUSHING,PIVOT TUBE
5020561
$1.59
24
NUT LOCK(10)
7542411
$3.19
25
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
25
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
26
Spacer
5333420
$11.99
27
ROD,SHOCK,(XTRA 10)133
1541021-067
Unavailable
28
BOLT(10)
7515472
$2.39
29
NUT FLEX-LOC(10)
7542303
$6.39
30
BUSHING
5430537
$3.99
31
BUSHING,R.SHOCK
5333030
Unavailable
32
BOLT(10)
7512329
$3.99
33
SHOCK,GAS,R.TRACK
7041438
Unavailable
