OIL TANK / AIR BOX ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, and ULTRA (4931683168C007)

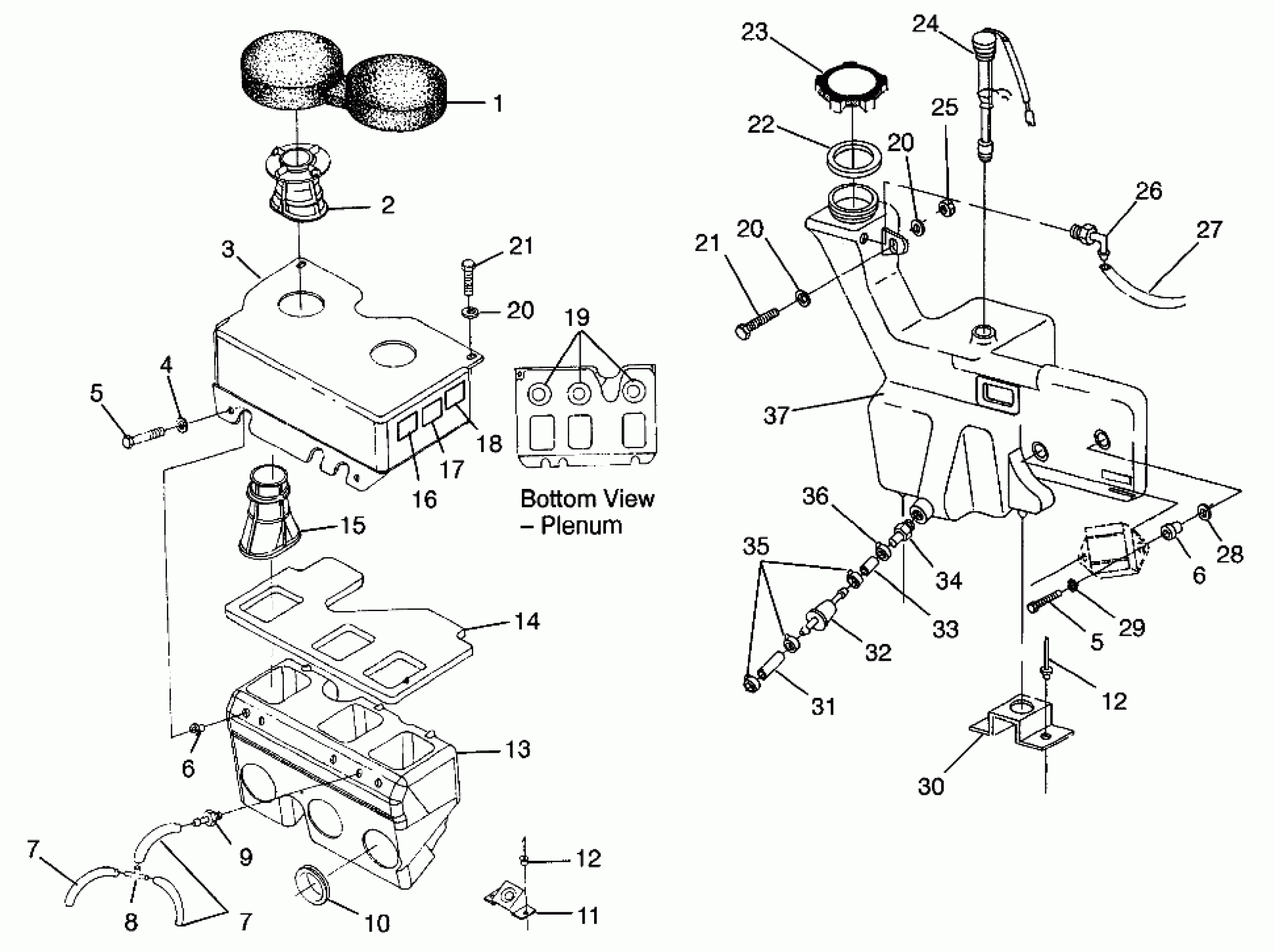

Polaris ULTRA RMK - 0960978 OIL TANK / AIR BOX ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, and ULTRA (4931683168C007) Diagram
#
1
INTAKE ASM,FOAM,W/MESH Substituted by 1253178
1253131
Unavailable
2
BOOT,CONE SILENCER,INLET
5411046
Unavailable
3
PLENUM,SILENCER,(680) Substituted by 5432539
5432238
Unavailable
4
WASHER(10)
7555960
$3.99
5
SCREW(10)
7512279
$1.49
5
SCREW(10)
7512279
$1.49
6
NUT-WELL(10)
7541923
$5.59
6
NUT-WELL(10)
7541923
$5.59
7
Hose (See Pg., Ref.)
-------
Unavailable
7
Hose (See Pg., Ref.)
-------
Unavailable
8
Nipple (See Pg., Ref.)
-------
Unavailable
9
FITTING,HOSE(10)
7052127
$3.19
10
Boot
5410271
Unavailable
11
BRKT,OILTANK,COINED
5241330
$2.15
12
RIVET-3/16-.090-.290
7661637
$1.49
12
RIVET-3/16-.090-.290
7661637
$1.49
13
BOTTOM,AIRBOX,INT.VENT(680)
5432127
Unavailable
14
SEAL-PLENUM
5811214
Unavailable
15
BOOT,CONE SILENCER,OUTLET
5411047
Unavailable
16
DECAL,CAUTION,AIRBOX
7075351
Unavailable
17
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
18
DECAL, GREASING [No Longer Available]
7073426
$7.27
19
RING,SILENCER,VELCRO
5830081
Unavailable
20
WASHER,WROUGHT(10)
7558302
$1.59
20
WASHER,WROUGHT(10)
7558302
$1.59
20
WASHER,WROUGHT(10)
7558302
$1.59
21
BOLT(10)
7512276
$4.79
21
BOLT(10)
7512276
$4.79
22
GASKET-OIL CAP
5810141
$2.39
23
CAP,OIL TANK
5430779
$14.56
24
SENSOR,OIL LEVEL
4110134
$72.84
25
NUT-LOCK(10)
7542122
$1.49
26
FITTING,90 DEG,1/8,(10)
7052095
$4.79
27
DESC NOT_AVAILABLE
8360009-99
Unavailable
28
BUSHING, MACH.(10)
7558707
$4.79
29
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
30
BRKT,OIL TANK
5240330
Unavailable
31
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
$84.99
32
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
33
LINE,OIL,FORMED
5410902
Unavailable
34
FITTING,3/8 OUTLET
7052110
Unavailable
35
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
36
HOSE CLAMP, RED (Red)
7080003
$1.49
37
TANK,W/SEND.UNIT HOLE Substituted by 2200874
5432268
Unavailable
