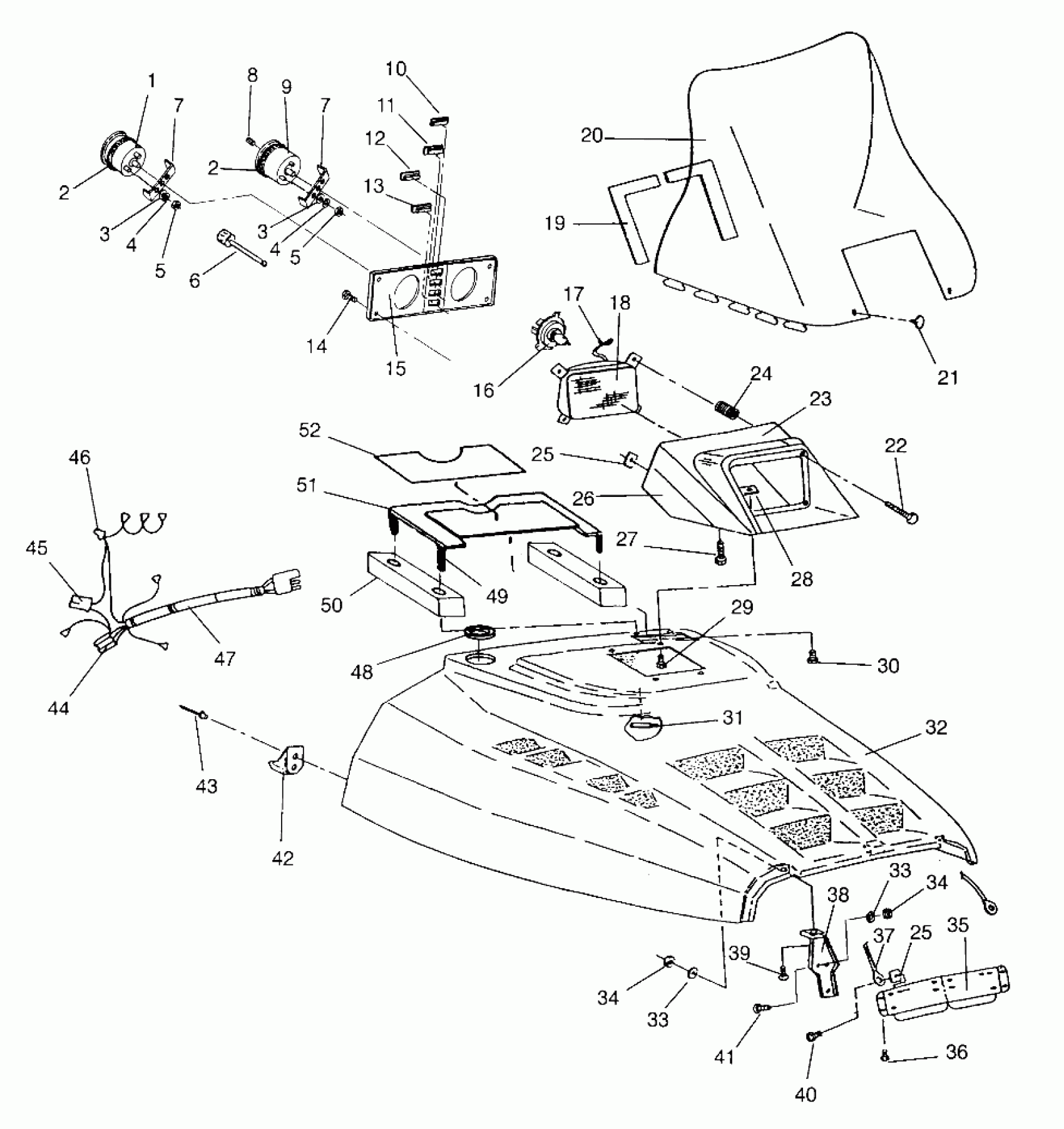

Polaris ULTRA RMK - 0960978 HOOD ULTRA SKS 0960578, EURO ULTRA SKS E960578, and ULTRA RMK 0960978 (4931683168A010) Diagram

#

Description
Price

1

BULB TAILLIGHT(10)

4030015

$4.03

1

TACH,6P,BACKLIT (Incl. 3-5, 7)

3280162

Unavailable

2

CUSHION,TACH/SPEEDO,RUBBER

3280151

Unavailable

2

CUSHION,TACH/SPEEDO,RUBBER

3280151

Unavailable

3

WASHER,FLAT,(10)

3280157

$2.39

3

WASHER,FLAT,(10)

3280157

$2.39

4

WASHER,SPLIT LOCK

3280156

$1.49

4

WASHER,SPLIT LOCK

3280156

$1.49

5

Nut

3280158

Unavailable

5

Nut

3280158

Unavailable

6

CABLE,SPEEDO.

3280094

$60.70

7

BRKT,SPEEDO/TACH

3280153

Unavailable

7

BRKT,SPEEDO/TACH

3280153

Unavailable

8

KNOB,TRIP ODOMETER,LH THD.

3280186

$9.70

9

SPEEDO,190KPH,BACKLIT (Incl. 3-5, 7, 8) (190 KPH)(EURO)

3280190

Unavailable

9

SPEEDO ASM,120MPH.BACKLIT (Incl. 3-5, 7, 8)

3280188

Unavailable

10

INDICATOR'TEMP'WARN.

4040011

$32.37

11

INDICATOR'OIL/BRK'WARN.

4040034

$12.17

12

INDICATOR'HI-BEAM'WARN.

4040013

Unavailable

13

INDICATOR,'ACC'WARN.

4040014

Unavailable

14

SCREW,SCKT.HD.CAP(10)

7512008

Unavailable

15

BEZEL, INST.

5430924

Unavailable

16

BULB,QUARTZ.H/L,INDY

2870448

$24.99

17

RETAINER,H/L BULB

4032063

Unavailable

18

HEADLIGHT ASM. (Incl. 16, 17)

4032040

Unavailable

19

PAD,W/S,LH,BLACK

5810437

Unavailable

19

PAD,W/S,RH,BLACK

5810438

$1.67

20

WINDSHIELD,SMOKE,STD(LIQ)

5431144

$134.99

21

RIVET,PLASTI-LOC.(50)

7621509

$1.49

22

SCREW, ADJ.(10)

4032003

Unavailable

23

HSG,INST,TOP,BLK

5430923-070

Unavailable

24

SPRING-ADJ

4032002

Unavailable

25

NUT, SPEED(10)

7670056

Unavailable

25

NUT, SPEED(10)

7670056

Unavailable

26

HSG,INST.BOTT.BLK.

5430922-070

Unavailable

27

SCREW(10)

7512009

Unavailable

28

NUT, SPEED(10)

7670057

$1.49

29

SCREW, SEMS(10)

7512283

$3.99

30

SCREW(10)

7511877

Unavailable

31

RETAINER,WINDSHIELD,(10)

5410970

$1.49

32

HOOD,FOIL/FOAM(ULTRA BK MT) (Incl. Foam, Foil & Warning Decals)

2631719-177

Unavailable

33

WASHER,WROUGHT(10)

7558302

$1.59

33

WASHER,WROUGHT(10)

7558302

$1.59

34

NUT-LOCK(10)

7542122

$1.49

34

NUT-LOCK(10)

7542122

$1.49

35

PLATE,RE-INF.,(HD.)

5222105

$49.51

36

SCREW(10)

7511858

$3.99

37

CABLE,HD.RETAINER

7080624

Unavailable

38

HINGE ASM,HD,BLK

2635005-067

$16.67

39

BOLT-CARRIAGE(10)

7512263

$3.99

40

SCREW(10)

7511989

Unavailable

41

BOLT(10)

7512193

$2.39

42

CUP, HOOD LATCH,(10)

5430733

$4.84

43

RIVET(50)

7621334

$1.49

44

Housing

4020115

$1.59

45

HOUSING

4020114

Unavailable

46

HOUSING

4020052

Unavailable

47

HARNESS,HEADLIGHT

2460382

Unavailable

48

SHIELD,INLET,RUBBER

5410835

Unavailable

49

STAND-OFF,EXTENSION

5431685

Unavailable

50

SEAL,INTAKE

5811056

Unavailable

51

PANEL ASM,INTAKE,BLK.MET. (Incl. 52)

2620095-177

Unavailable

52

DECAL,WARN."PK.BRAKE"

7075457

Unavailable
