EXHAUST SYSTEM ULTRA SKS 0960578, EURO ULTRA SKS E960578, and ULTRA RMK 09 (4931683168C006)

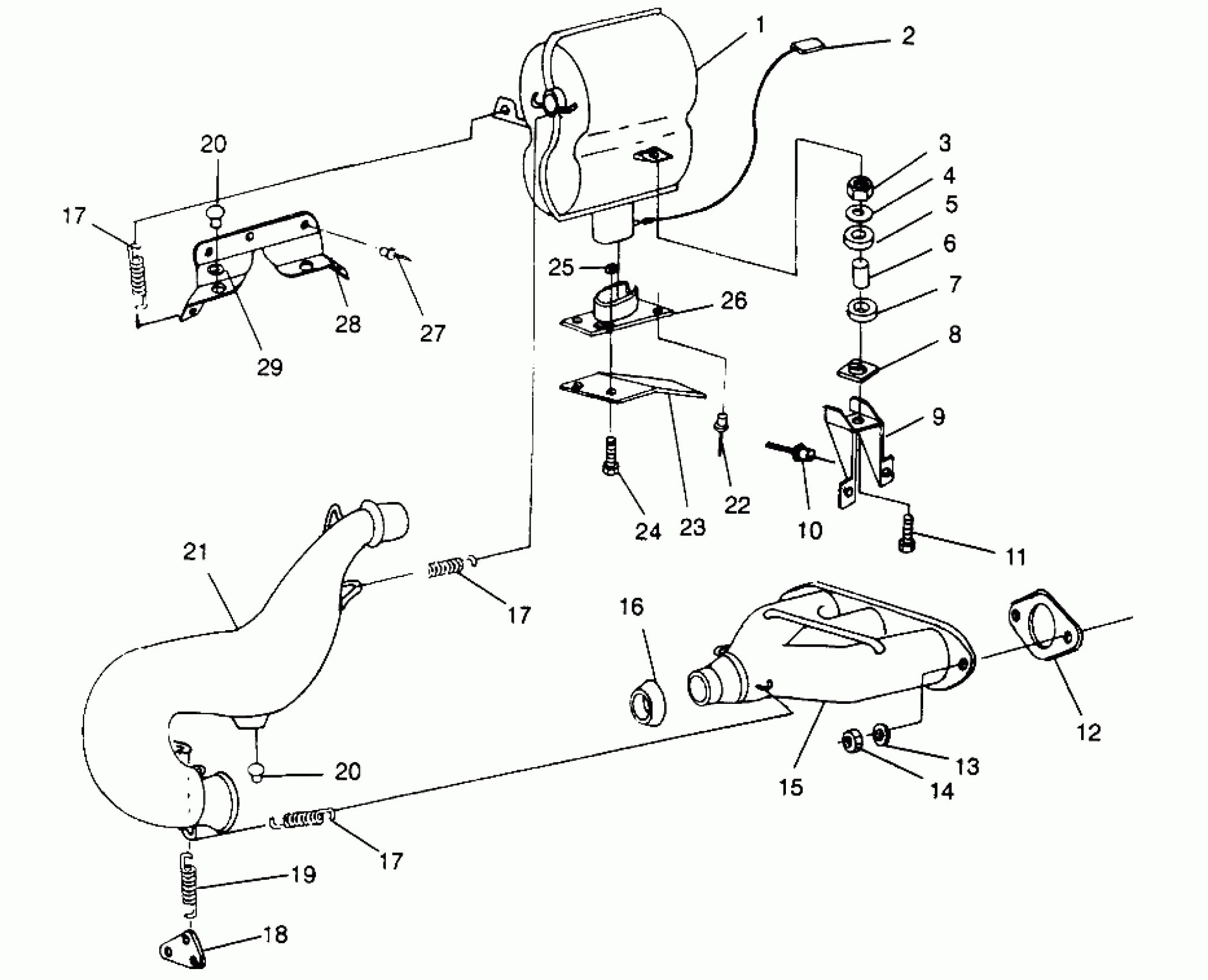

Polaris ULTRA RMK - 0960978 EXHAUST SYSTEM ULTRA SKS 0960578, EURO ULTRA SKS E960578, and ULTRA RMK 09 (4931683168C006) Diagram
#
Description
Price
1
RESONATOR
1260695-029
Unavailable
2
PROBE,TEMP.SENSING
4040067
Unavailable
3
NUT, LOCK(10)
7542103
$5.59
4
WASHER(10)
7558221
Unavailable
5
WASHER,RUBBER
5410436
$1.59
6
BUSHING-RES. MT.
5010192
$6.39
7
DAMPENER
5410241
Unavailable
8
SPEED NUT(10)
7670021
$6.99
9
BRKT.WELD
1260744-067
Unavailable
10
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
11
BOLT-CARRIAGE(10)
7512262
Unavailable
12
Gasket (See Pg. A38, Ref. 16)
-------
Unavailable
13
Washer (See Pg. A38, Ref. 18)
-------
Unavailable
14
Nut (See Pg. A38, Ref. 17)
-------
Unavailable
15
MANIFOLD, 3 CYL.
1260626-029
Unavailable
16
SEAL,EXH.SOCKET
3610046
$36.41
17
SPRING, EXHAUST(10)
7042031
$5.65
17
SPRING, EXHAUST(10)
7042031
$5.65
17
SPRING, EXHAUST(10)
7042031
$5.65
18
BRKT-SPRING RETAINER
5211659
Unavailable
19
SPRING-EXHAUST(10)
7042029
$4.84
20
DAMPNER, VIB.
5410467
$8.79
20
DAMPNER, VIB.
5410467
$8.79
21
MUFFLER Substituted by 2200951
1260697-029
Unavailable
22
RIVET, BLIND(50) (RMK)
7621467
$1.49
22
RIVET, BLIND(50) (SKS)
7621467
$1.49
23
DEFLECTOR-SNOW,EXH. Substituted by 5222615-067 (RMK)
5222615
Unavailable
24
BOLT(10) (RMK)
7512193
$2.39
25
NUT, LOCK(10) (RMK)
7542103
$5.59
26
HAT,EXH.OUTLET, BLK
1260743-029
Unavailable
27
RIVET-3/16-.090-.290
7661637
$1.49
28
BRKT,BUMP.RESONATOR,BLK.
5241429-067
Unavailable
29
WASHER, THRUST(10)
7555788
Unavailable
