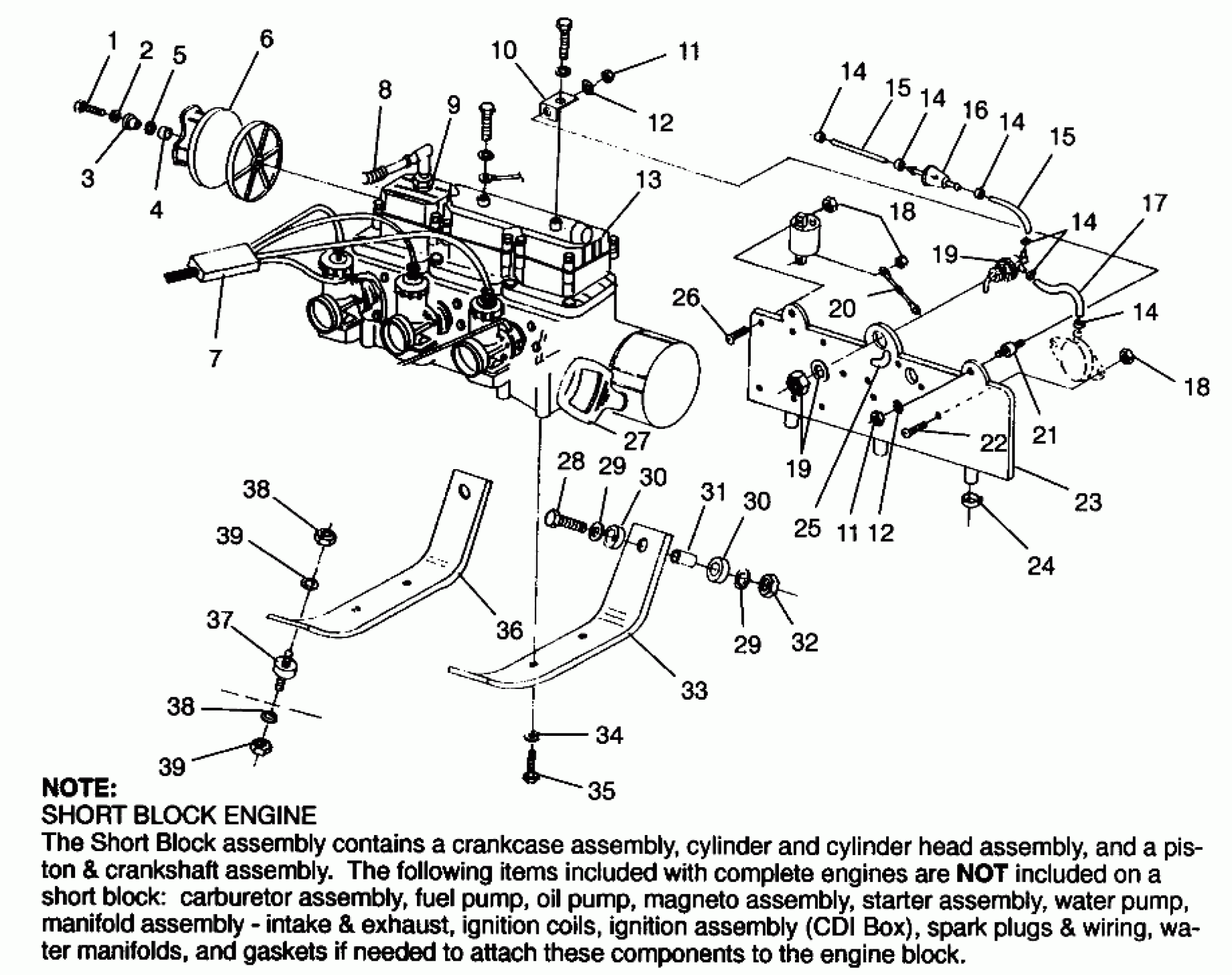

Polaris ULTRA RMK - 0960978 ENGINE MOUNTING ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, and ULTRA RM (4931683168C005) Diagram

#

Description
Price

1

BOLT(10)

7512565

$19.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAIN.

5010287

$12.99

4

SPACER,CLUTCH BOLT

5020513

$44.99

5

O RING,(10)

5410507

$1.49

6

Asm., Drive Clutch

-------

Unavailable

7

CABLE-THROTTLE W/OIL

7080597

Unavailable

8

TUBING,CONVOLUTED

5521147

Unavailable

9

SPARKPLUG(8)

3070165

$3.99

10

BRKT,HDWR.MOUNT Substituted by 5241179-067

5241179

Unavailable

11

NUT, LOCK(10)

7542103

$5.59

11

NUT, LOCK(10)

7542103

$5.59

12

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

12

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

13

ENG.(S.B.)EC68PL-01 [No Longer Available] (SKS)

3085195

Unavailable

13

ENG.(S.B.)EC68PL-04 Substituted by 3085195 (RMK)

3085232

Unavailable

14

CLAMP,SPRING,(10)

7080534

$1.59

14

CLAMP,SPRING,(10)

7080534

$1.59

14

CLAMP,SPRING,(10)

7080534

$1.59

14

CLAMP,SPRING,(10)

7080534

$1.59

14

CLAMP,SPRING,(10)

7080534

$1.59

15

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

15

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

16

FILTER FUEL,(10)

2530008

$4.84

17

FUEL LINE, 5 FT. Substituted by 8450044-153

8450044-156

Unavailable

18

NUT(10)

7542124

Unavailable

18

NUT(10)

7542124

Unavailable

19

VALVE,FUEL SHUTOFF

7051016

Unavailable

19

VALVE,FUEL SHUTOFF

7051016

Unavailable

20

STRAP,GND,(IGN.COIL)

5211663

$3.51

21

MOUNT,CARB.

3110050

$12.99

22

SCREW(10)

7512279

$1.49

23

MOUNT,ENG.HARDWARE

5432094

$21.43

24

CLAMP(10)

7080533

$3.99

25

DECAL,FUEL SHUT-OFF

7073869

Unavailable

26

BOLT ,(10) Substituted by 7517377

7512239

Unavailable

27

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

28

SCREW(10)

7512530

$5.59

29

WASHER(10)

7555740

$1.59

29

WASHER(10)

7555740

$1.59

30

MOUNT, ENGINE

5410390

Unavailable

30

MOUNT, ENGINE

5410390

Unavailable

31

SPACER, (MTR.MT.)

5332778

Unavailable

32

NUT,FLANGE(10)

7542522

$5.59

33

PLATE,RH,ENGINE Substituted by 2201041

5240831

Unavailable

34

WASHER LOCK(10)

7553101

$3.99

35

BOLT(10)

7512575

Unavailable

36

PLATE,LH,ENGINE Substituted by 2201041

5240830

Unavailable

37

MOUNT,RUBBER

3110047

Unavailable

38

NUT LOCK(10)

7542411

$3.19

38

NUT LOCK(10)

7542411

$3.19

39

WASHER(10) Substituted by 7555806

7555720

$0.79

39

WASHER(10) Substituted by 7555806

7555720

$0.79
