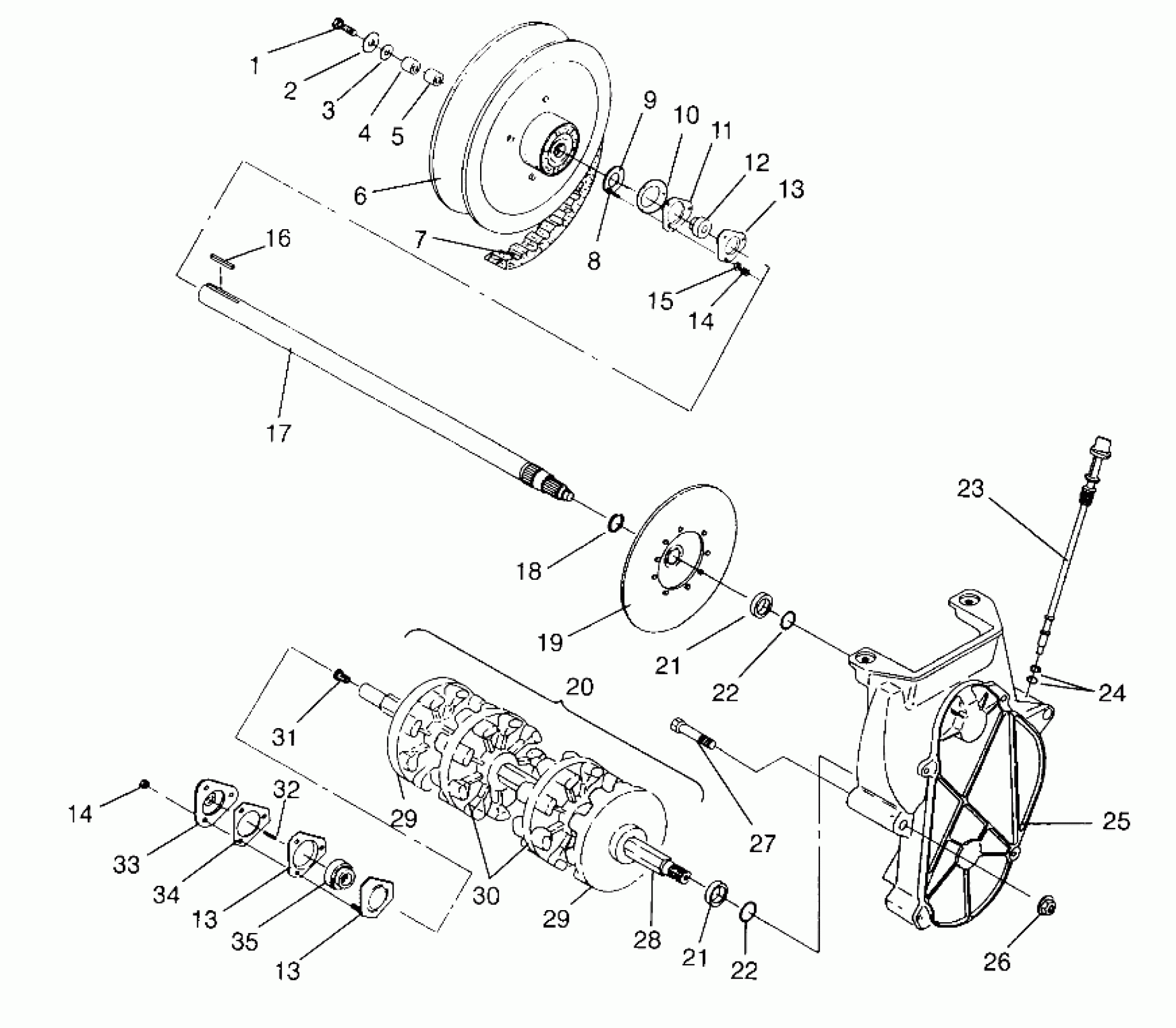

Polaris ULTRA RMK - 0960978 DRIVE TRAIN ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, and ULTRA RMK 09 (4931683168B014) Diagram

#

Description
Price

1

BOLT(10)

7515369

$4.79

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

SPACER,DRIVEN CLUTCH

5020645

Unavailable

5

Spacer

5020837

$24.99

6

Asm., Driven Clutch (See Pg, Ref.)

-------

Unavailable

7

BELT DRIVE(5)

3211042

$109.99

8

BOLT(10) Substituted by 7512377

7512394

Unavailable

9

WASHER SPECIAL(10)

7556509

Unavailable

10

FLANGE RD,RELUBE W/ZERK

5241359

$32.37

11

GASKET,JACKSHAFT,BLK.

5811095

$2.41

12

BEARING,1"X52MM,SPHER.

3514523

Unavailable

13

FLANGETTE ASM,,W/ SCREWS Substituted by 1012945

1012434

Unavailable

13

FLANGETTE ASM,,W/ SCREWS Substituted by 1012945

1012434

Unavailable

13

FLANGETTE ASM,,W/ SCREWS Substituted by 1012945

1012434

Unavailable

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

16

KEY-SQUARE(10)

7721204

$3.19

17

JACKSHAFT ASM,LONG,PRESS,BLK (Incl. 18)

1332179-067

$228.56

18

RING, RETAINING(10)

7710422

$3.99

19

DISC ASM, BRAKE

1910086

Unavailable

20

DRIVESHAFT ASM,HD,PRESS BRG Substituted by 1590258 (Incl. 28-31)

1590253

Unavailable

21

SLEEVE, SEAL

5020588

$23.99

21

SLEEVE, SEAL

5020588

$23.99

22

O RING,(10)

5410613

$1.99

22

O RING,(10)

5410613

$1.99

23

DIPSTICK Substituted by 1332143

5431419

Unavailable

24

O-RING

5410675

$1.60

25

Cover, Chaincase Cast (See Pg., Ref.)

-------

Unavailable

26

NUT(10)

7542423

$3.99

27

BOLT(10)

7515428

$4.79

28

SHAFT,DRIVE,H.S.PRSBRG.

6230091

Unavailable

29

SPROCKET, HALF,9T

5430993

Unavailable

29

SPROCKET, HALF,9T

5430993

Unavailable

30

SPROCKET, 9T

5430571

Unavailable

31

BUSHING METAL SPEEDO

3280019

$11.99

32

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

33

ADAPTER,DRIVE,W/ZERK

3280116

$101.17

34

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

35

BEARING,1"X52MM,SPHER.

3514524

Unavailable
