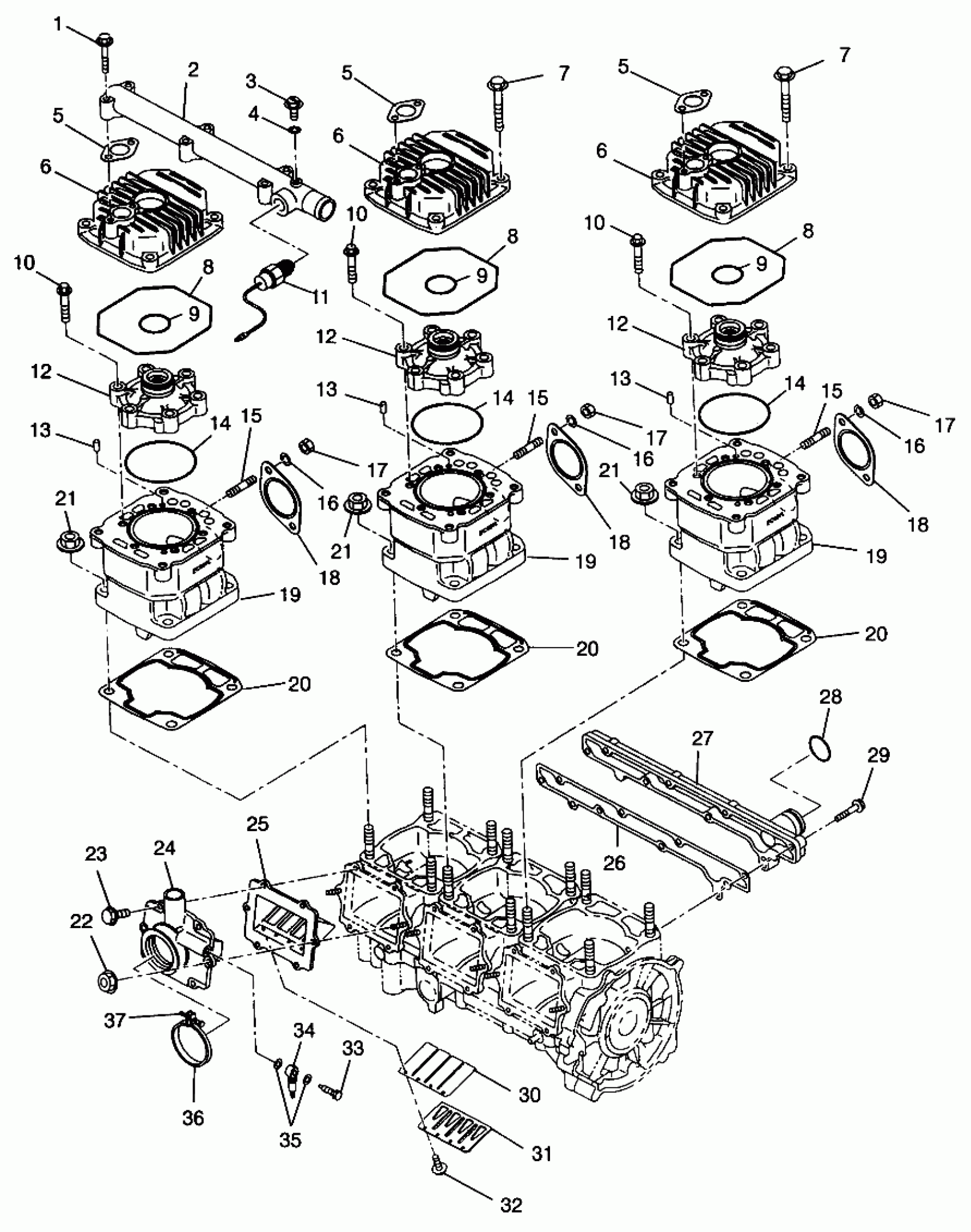

Polaris ULTRA RMK - 0960978 CYLINDER ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, and ULTRA RMK 09609 (4931683168C009) Diagram

#

Description
Price

1

BOLT

3080109

Unavailable

2

MANIFOLD,OUTLET,WATER

3085115

Unavailable

3

PLUG, AIR VENT Substituted by 7517266 (Air Vent)

3083350

Unavailable

4

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

5

GASKET(10)

3082937

Unavailable

5

GASKET(10)

3082937

Unavailable

5

GASKET(10)

3082937

Unavailable

6

COVER, HEAD

3085108

Unavailable

6

COVER, HEAD

3085108

Unavailable

6

COVER, HEAD

3085108

Unavailable

7

Bolt, Flange

3084437

Unavailable

7

Bolt, Flange

3084437

Unavailable

8

O-RING,(HD.COVER)

3085111

Unavailable

8

O-RING,(HD.COVER)

3085111

Unavailable

8

O-RING,(HD.COVER)

3085111

Unavailable

9

O-RING,(CYL.HD.)

3085110

Unavailable

9

O-RING,(CYL.HD.)

3085110

Unavailable

9

O-RING,(CYL.HD.)

3085110

Unavailable

10

BOLT, FLANGE ,(10)

3084435

Unavailable

10

BOLT, FLANGE ,(10)

3084435

Unavailable

10

BOLT, FLANGE ,(10)

3084435

Unavailable

11

SWITCH,THERMO. (93

3084651

Unavailable

12

HEAD,CYLINDER (SKS)

3085245

Unavailable

12

HEAD,CYLINDER (RMK)

3085324

Unavailable

12

HEAD,CYLINDER (SKS)

3085245

Unavailable

12

HEAD,CYLINDER (RMK)

3085324

Unavailable

12

HEAD,CYLINDER (SKS)

3085245

Unavailable

12

HEAD,CYLINDER (RMK)

3085324

Unavailable

13

PIN, DOWEL Substituted by 3086838

3080103

$7.14

13

PIN, DOWEL Substituted by 3086838

3080103

$7.14

13

PIN, DOWEL Substituted by 3086838

3080103

$7.14

14

O-RING,(CYL.)

3085112

Unavailable

14

O-RING,(CYL.)

3085112

Unavailable

14

O-RING,(CYL.)

3085112

Unavailable

15

STUD (10)

3080016

$5.75

15

STUD (10)

3080016

$5.75

15

STUD (10)

3080016

$5.75

16

WASHER LOCK ,(10)

3080530

$3.19

16

WASHER LOCK ,(10)

3080530

$3.19

16

WASHER LOCK ,(10)

3080530

$3.19

17

NUT(10)

3080285

Unavailable

17

NUT(10)

3080285

Unavailable

17

NUT(10)

3080285

Unavailable

18

GASKET,EXHAUST,NA(10) Substituted by 3086757

3084439

Unavailable

18

GASKET,EXHAUST,NA(10) Substituted by 3086757

3084439

Unavailable

18

GASKET,EXHAUST,NA(10) Substituted by 3086757

3084439

Unavailable

19

CYLINDER (Incl. 13, 15)

3085242

$754.99

19

CYLINDER (Incl. 13, 15)

3085242

$754.99

19

CYLINDER (Incl. 13, 15)

3085242

$754.99

20

GASKET,CYL.(NA)

3085243

Unavailable

20

GASKET,CYL.(NA)

3085243

Unavailable

20

GASKET,CYL.(NA)

3085243

Unavailable

21

NUT-FLANGE(10)

3082911

$1.99

21

NUT-FLANGE(10)

3082911

$1.99

21

NUT-FLANGE(10)

3082911

$1.99

22

NUT, FLANGE(10)

3083856

$2.39

23

Bolt, Flange

3084126

Unavailable

24

ADAPTER

3085248

Unavailable

25

REED VALVE ASM. (Incl 30-32)

3085249

Unavailable

26

GASKET,COVER,INLET WATER

3085247

$10.71

27

COVER,WATER INLET

3085246

$87.19

28

O-Ring

3084461

Unavailable

29

BOLT, FLANGE Substituted by 3086751

3084177

Unavailable

30

VALVE, REED

3084563

$19.83

31

STOPPER

3085274

Unavailable

32

SCREW, REED

3084565

$3.29

33

BOLT-BANJO

3083137

Unavailable

34

VALVE, CHECK

3083894

Unavailable

35

WASHER(10) Substituted by 7555998

3083138

Unavailable

36

BAND ASM. (Incl. 37)

3083166

$19.84

37

SCREW,(10)

3081497

$2.39
